MEUS Racing 12.5KG Brass Micro Servo with High Torque for 1/24 SCX24 1/18 TRX4M Redcat Ascent-18

MEUS Racing 12.5KG Brass Micro Servo with High Torque for 1/24 Axial SCX24, TRAXXAS 1/18 TRX4M, Redcat Ascent-18 RC Crawlers.

Key Features:

• 1. Suitable for 1/24 SCX24, 1/18 TRX4M, Redcat Ascent-18, etc RC models.

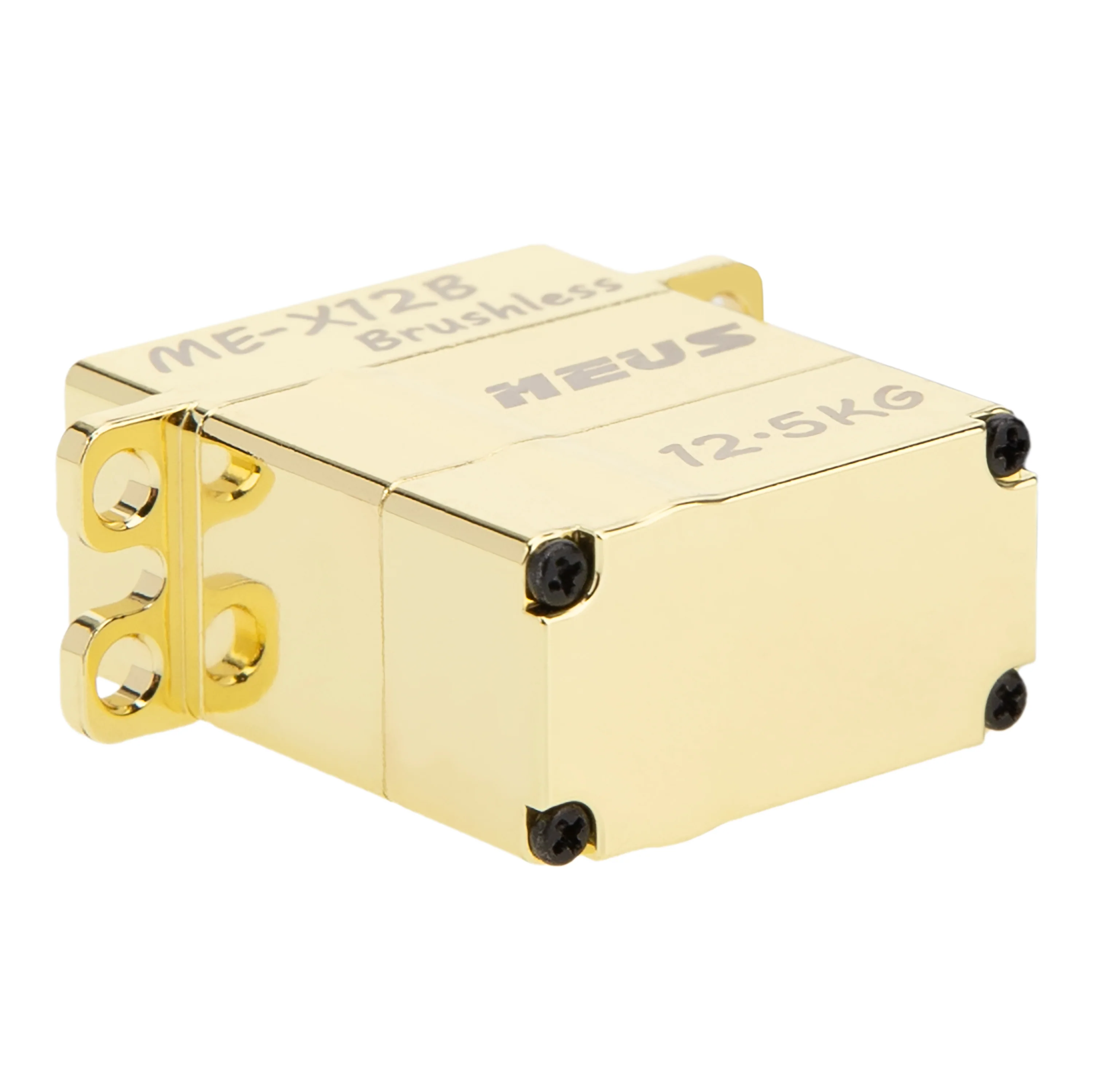

• 2. The outer shell is made of brass, increasing the weight of the front axle.

• 3. Brushless motor provides high-speed response and high torque
  Voltage range of 6-8.4V and 8-12.5 kg · m torque

• 4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy, and longer service life.

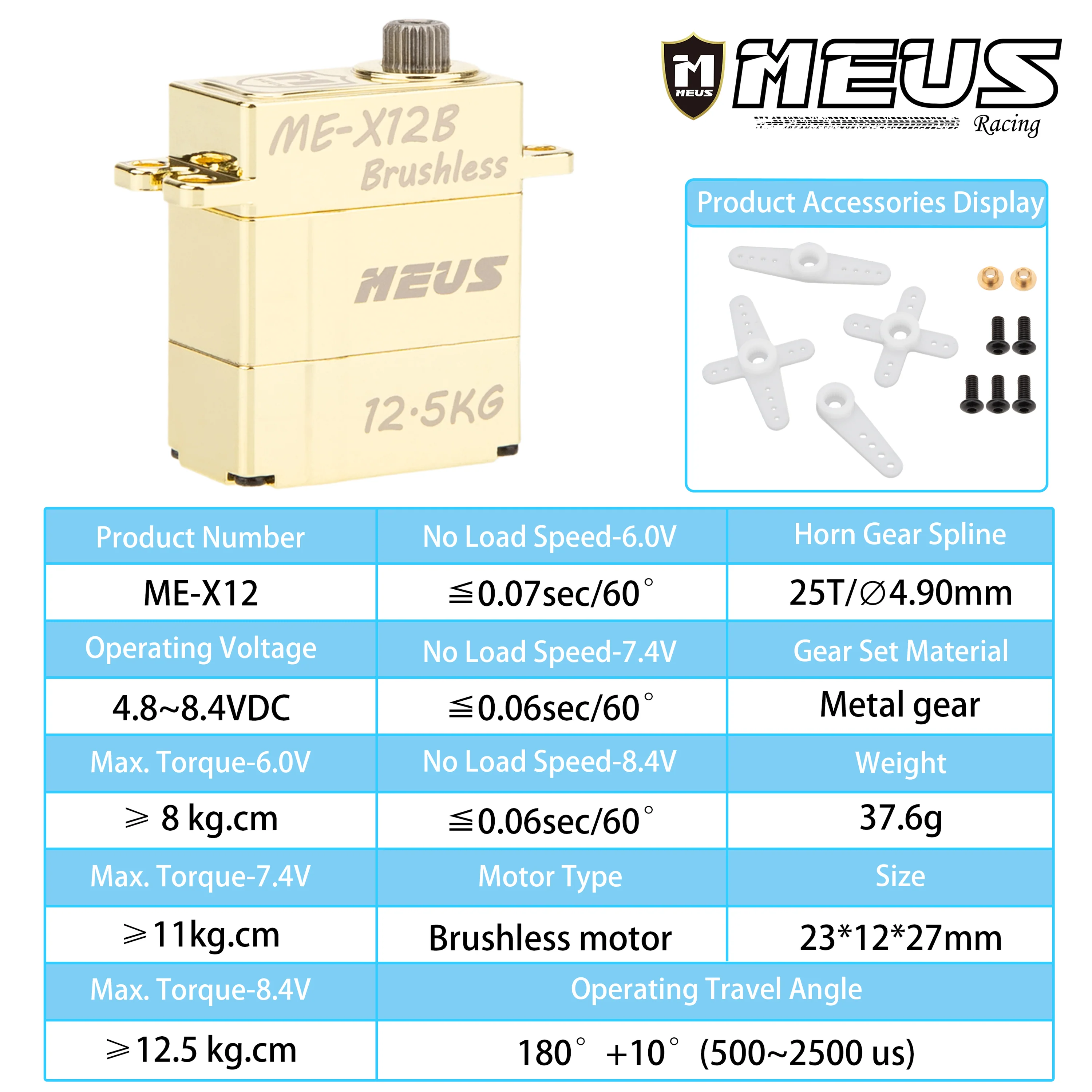

Specifications:

Item Number: ME-X12
Operating Voltage: 4.8~8.4VDC
Max. Torque-6.0V: ≥ 8 kg.cm
Max. Torque-7.4V: ≥ 11 kg.cm
Max. Torque-8.4V: ≥12.5 kg.cm
No Load Speed-6.0V: ≦0.07sec/60°
No Load Speed-7.4V: ≦0.06sec/60°
No Load Speed-8.4V: ≦0.06sec/60°
Operating Travel Angle: 180°+10°(500~2500 us)
Motor Type: Brushless motor
Horn Gear Spline: 25T/∅4.90mm
Gear Set Material: Metal gear
Weight: 21.6+ 0.5g
Size: 23*12*27mm

Package List:

1 × 12.5kg Brass servo
