MEUS Racing 12.5KG Brushless High Torque Micro Servo with Adjustable Brass Servo Mount and Steering Horn for 1/18 TRX4M

MEUS Racing 12.5KG Brushless High Torque Micro Servo with Adjustable Brass Servo Mount and Steering Horn for 1/18 TRX4M

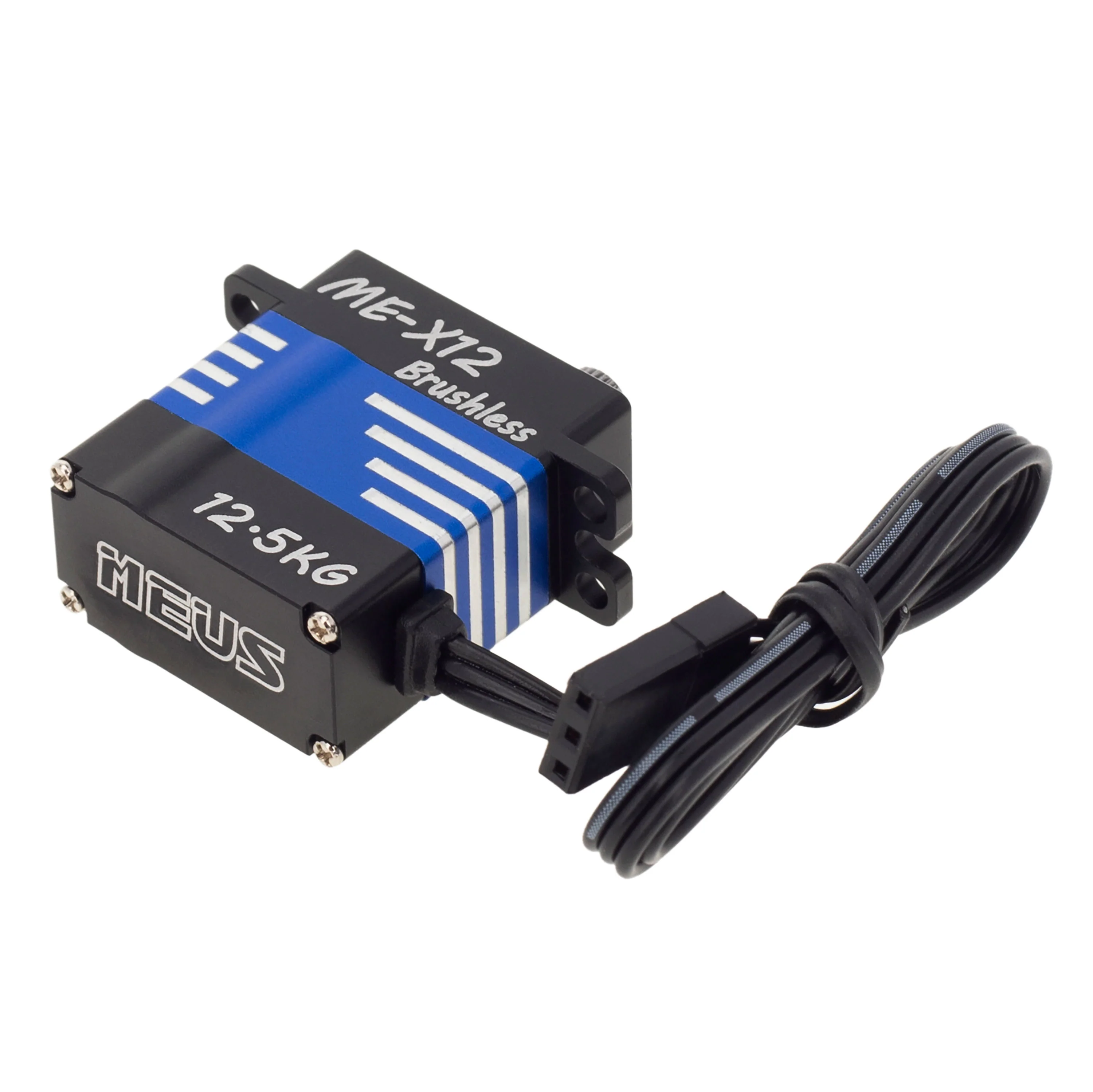

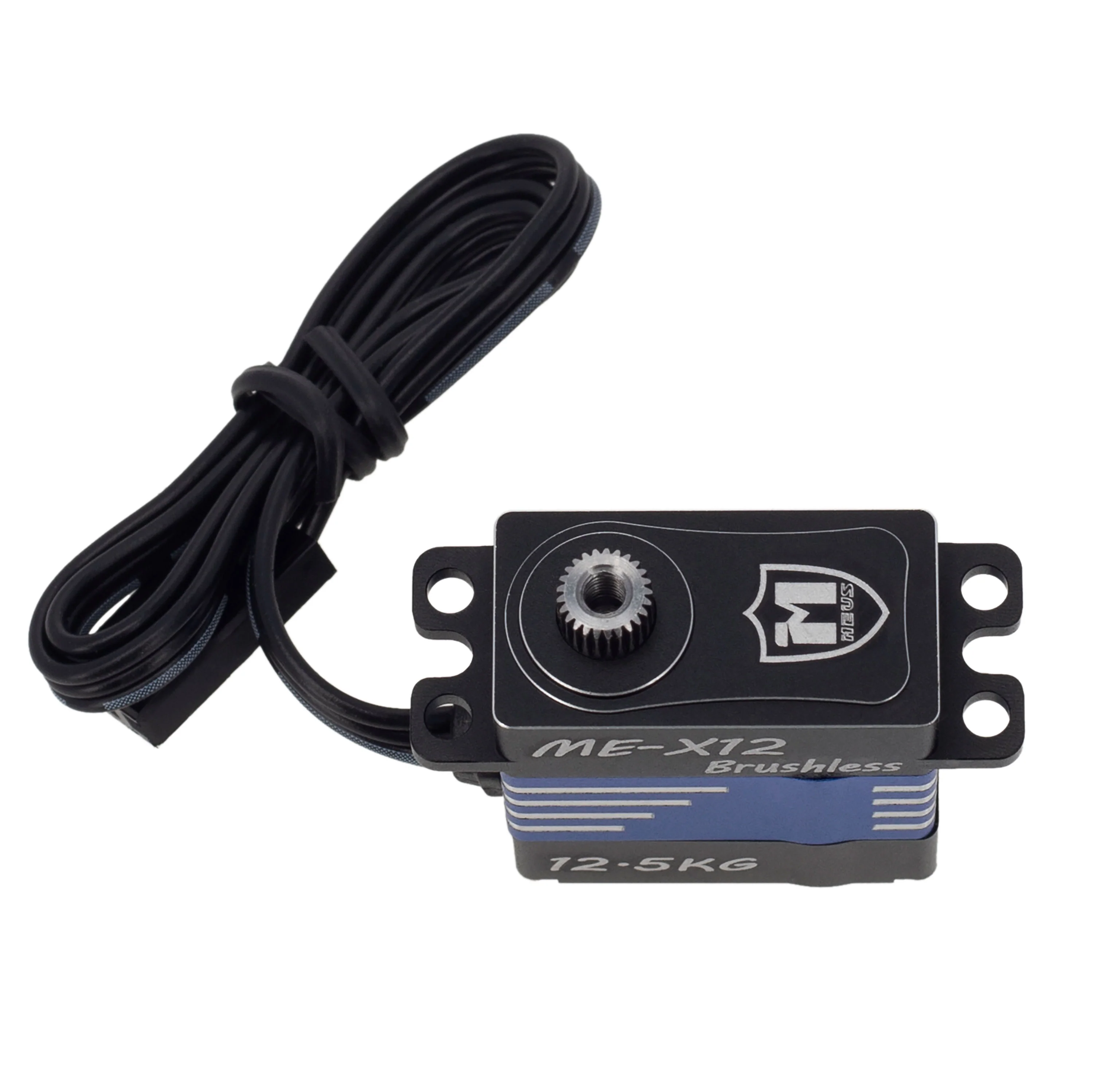

MEUS Racing 12.5KG Brushless High Torque Micro Servo Shifting Servo with Adjustable Brass Servo Mount and Steering Link kit and Servo Horn for TRX4M 1/18 RC Crawler Upgrade Parts.

Key Features of Servo:

1. Suitable for steering servo of TRX4M, and also compatible with shifting servo of 1/10 and 1/8 models.
2. Brushless motor provides high-speed response and high torque.
3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.
4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy, and longer service life.

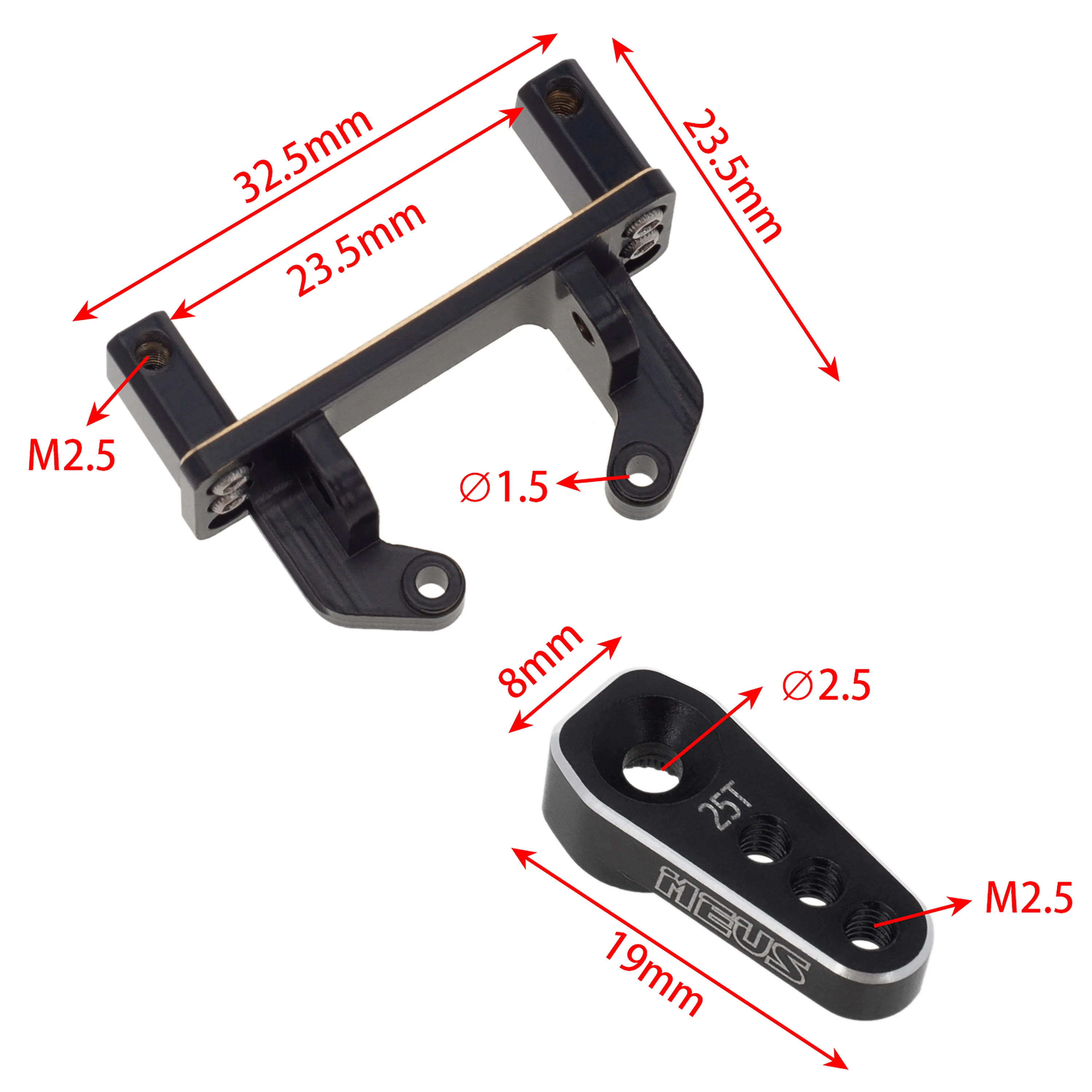

Key Feature of Brass Servo Mount

  • Premium TRX4M upgrade for TRX4M Bronco Defender K10 F150 1/18 RC Crawler etc.
  • The brass servo mount can add weight to the front axle.

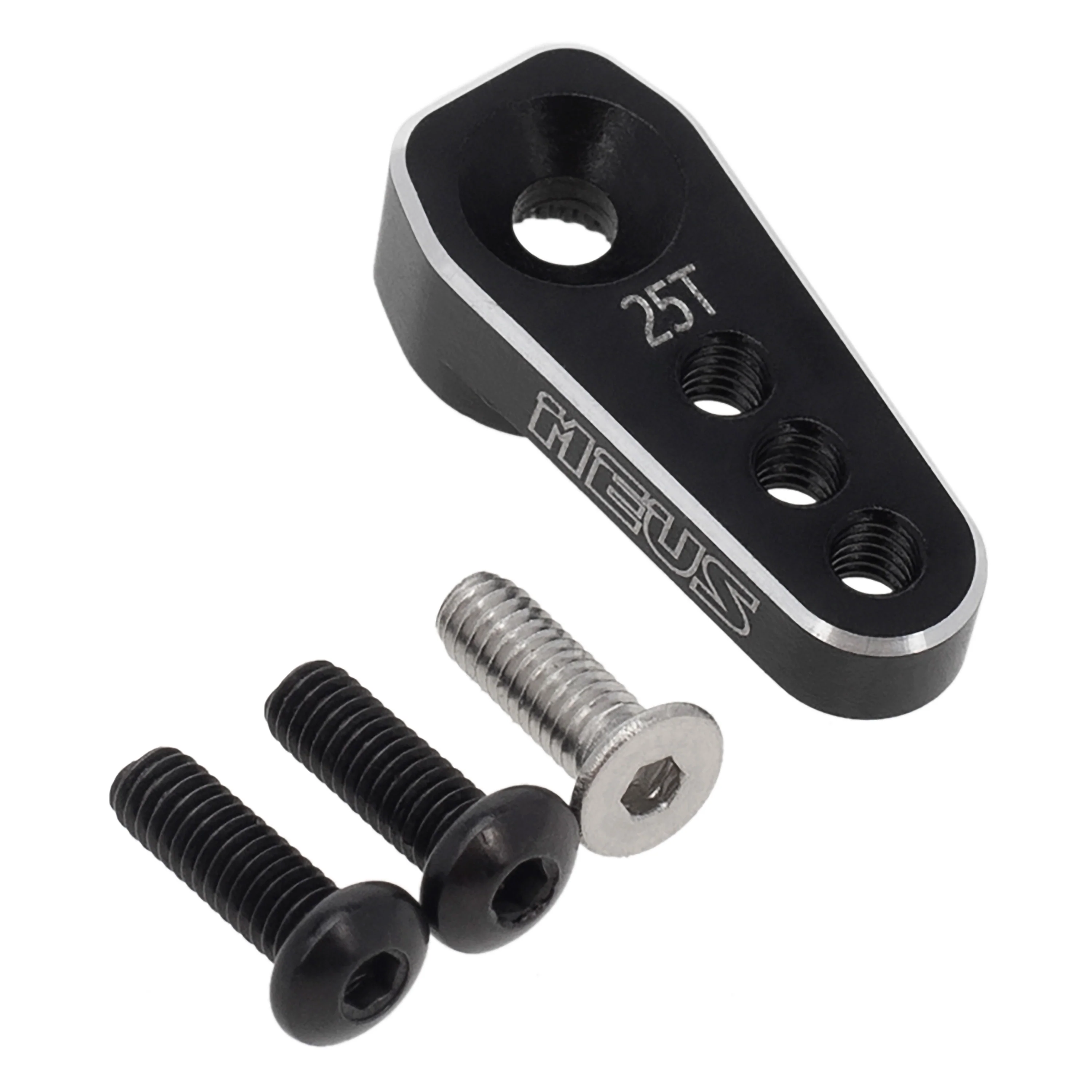

  • Aluminum alloy servo horn, sturdy and long-lasting.
  • The front and rear clearance of the servo is adjustable, by adjusting the servo mounting ears, you can get a 3.5mm mounting distance.

Specification of Servo:

  • Operating Voltage: 4.8~8.4VDC
  • Max. Torque-6.0V: ≥ 8 kg.cm
  • Max. Torque-7.4V: ≥ 11 kg.cm
  • Max. Torque-8.4V: ≥12.5 kg.cm
  • No Load Speed-6.0V: ≦0.07sec/60°
  • No Load Speed-7.4V: ≦0.06sec/60°
  • No Load Speed-8.4V: ≦0.06sec/60°
  • Operating Travel Angle: 180°+10°(500~2500 us)
  • Motor Type: Brushless motor
  • Horn Gear Spline: 25T/∅4.90mm
  • Gear Set Material: Metal gear
  • Weight: 21.6+ 0.5g
  • Size: 23*12*27mm

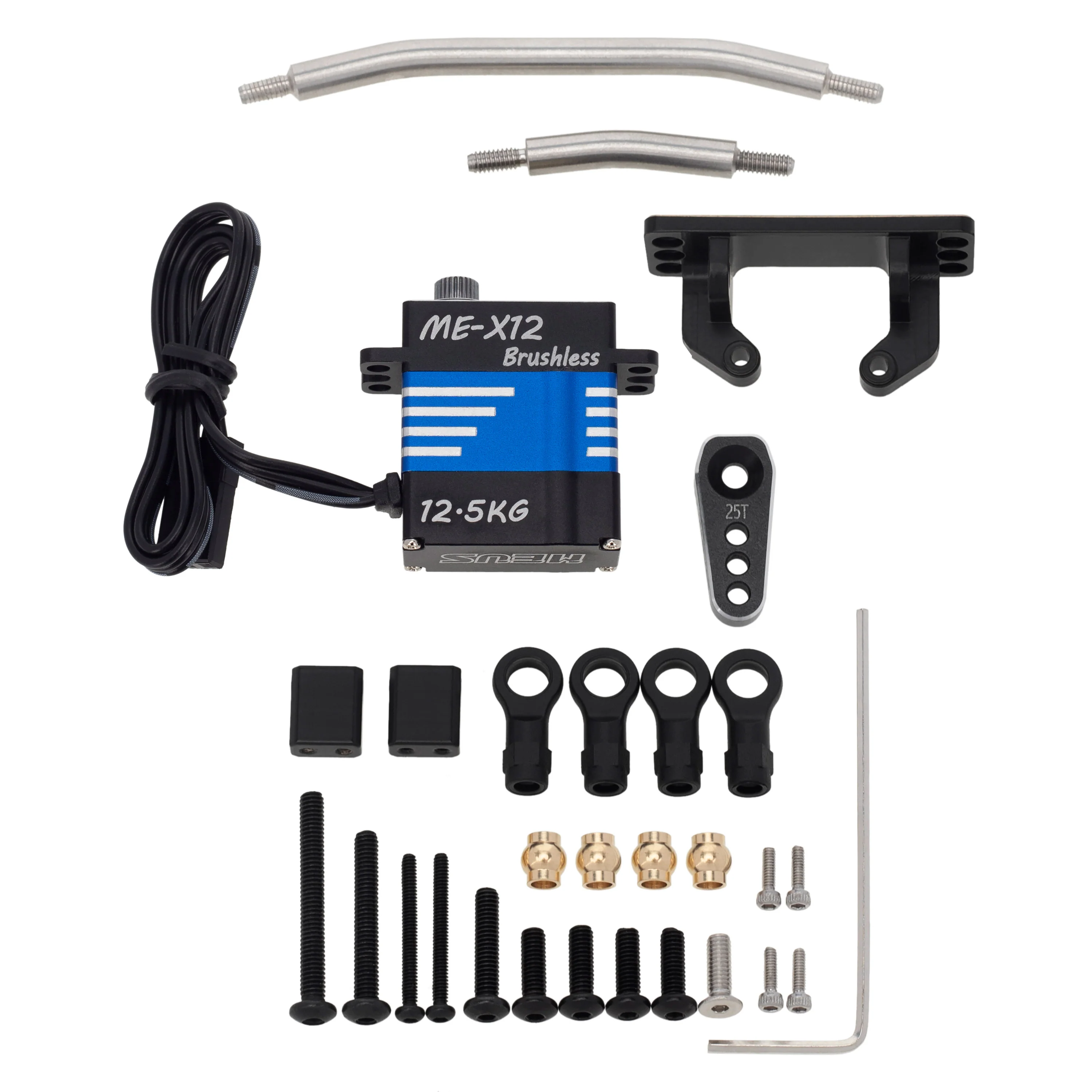

Package List:

  • 1 × 12.5KG servo;
  • 1 × Brass servo mount;
  • 1 × Servo horn;
  • 2 × Stainless connecting rod;
  • 1 × Accessory kit.



$19.60

Original: $55.99

-65%
MEUS Racing 12.5KG Brushless High Torque Micro Servo with Adjustable Brass Servo Mount and Steering Horn for 1/18 TRX4M—

$55.99

$19.60

Product Information

Shipping & Returns

Description

MEUS Racing 12.5KG Brushless High Torque Micro Servo Shifting Servo with Adjustable Brass Servo Mount and Steering Link kit and Servo Horn for TRX4M 1/18 RC Crawler Upgrade Parts.

Key Features of Servo:

1. Suitable for steering servo of TRX4M, and also compatible with shifting servo of 1/10 and 1/8 models.
2. Brushless motor provides high-speed response and high torque.
3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.
4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy, and longer service life.

Key Feature of Brass Servo Mount

  • Premium TRX4M upgrade for TRX4M Bronco Defender K10 F150 1/18 RC Crawler etc.
  • The brass servo mount can add weight to the front axle.
  • Aluminum alloy servo horn, sturdy and long-lasting.
  • The front and rear clearance of the servo is adjustable, by adjusting the servo mounting ears, you can get a 3.5mm mounting distance.

Specification of Servo:

  • Operating Voltage: 4.8~8.4VDC
  • Max. Torque-6.0V: ≥ 8 kg.cm
  • Max. Torque-7.4V: ≥ 11 kg.cm
  • Max. Torque-8.4V: ≥12.5 kg.cm
  • No Load Speed-6.0V: ≦0.07sec/60°
  • No Load Speed-7.4V: ≦0.06sec/60°
  • No Load Speed-8.4V: ≦0.06sec/60°
  • Operating Travel Angle: 180°+10°(500~2500 us)
  • Motor Type: Brushless motor
  • Horn Gear Spline: 25T/∅4.90mm
  • Gear Set Material: Metal gear
  • Weight: 21.6+ 0.5g
  • Size: 23*12*27mm

Package List:

  • 1 × 12.5KG servo;
  • 1 × Brass servo mount;
  • 1 × Servo horn;
  • 2 × Stainless connecting rod;
  • 1 × Accessory kit.
