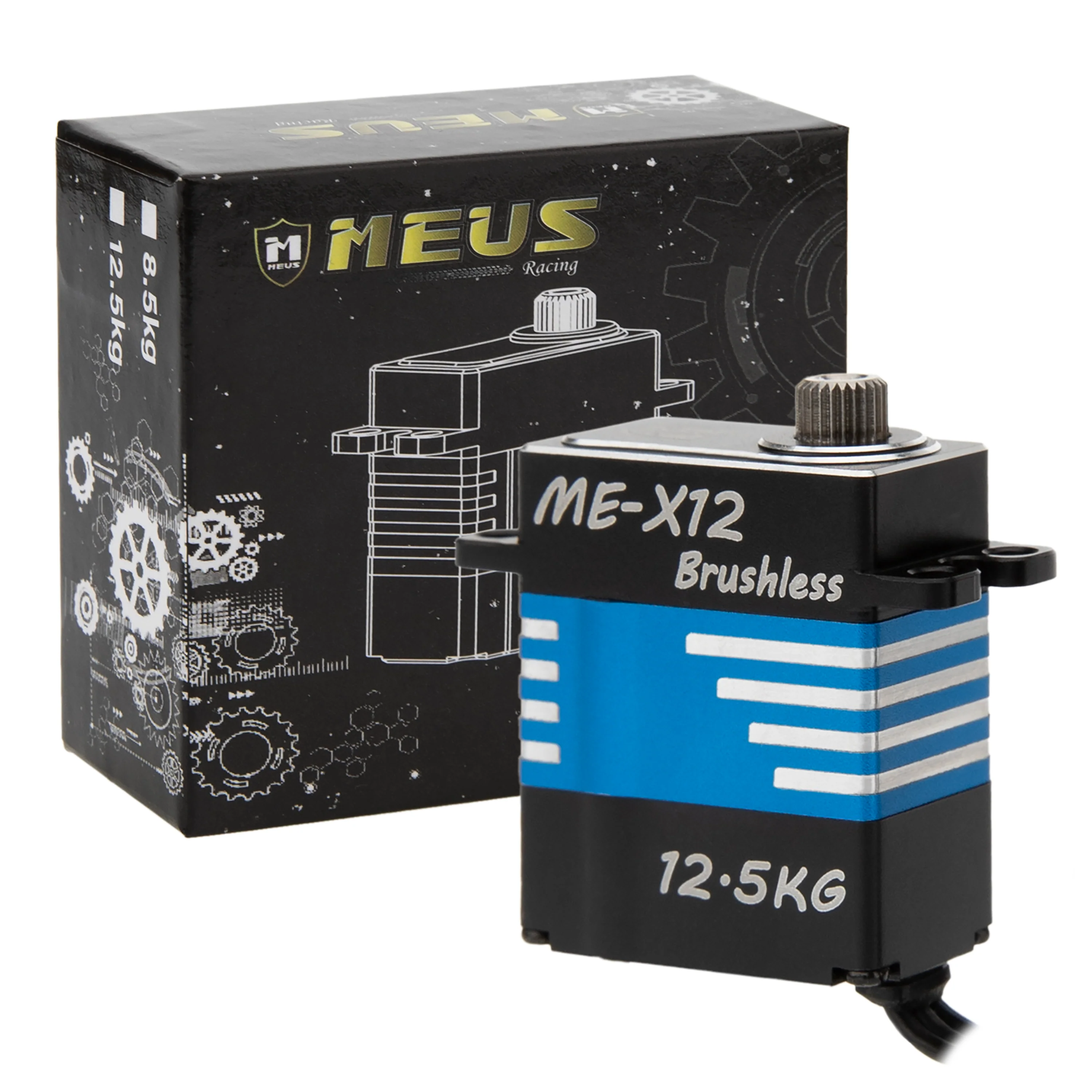

【US Warehouse】MEUS Racing V2 8.5KG/12.5kg Brushless High Torque Micro Shifting Servo for 1/24 SCX24 1/18 TRX4M

MEUS Racing V2 8.5KG/12.5kg Brushless High Torque Micro Servo Shifting Servo Supports 8.4V for 1/24 SCX24 1/18 TRX4M RC Crawler Upgrade Parts.

Key Features:

• 1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/10 SCX10, TRX4 and 1/8 models.

• 2. Brushless motor provides high-speed response and high torque.

• 3. 8.5kg servo supports a voltage range of 6V-8.4V, providing 6-8.5KG torque.
• 4. 12.5kg servo supports a voltage range of 6V-8.4V, providing 8.5-12.5KG torque.

• 4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy, and longer service life.

Note: These servos are not suitable for the TRX4M original 180 long brushed motor.

Specifications:

ME-X8 8.5KG Servo

• Operating Voltage：4.8~8.4VDC

• Max. Torque-6.0V：≥ 6 kg.cm

• Max. Torque-7.4V：≥ 7.5 kg.cm

• Max. Torque-8.4V：≥8.5 kg · cm

• No Load Speed-6.0V：≦0.07sec/60°

• No Load Speed-7.4V：≦0.06sec/60°

• No Load Speed-8.4V：≦0.058sec/60°

• Operating Travel Angle：90°+10°(500~2500 us)

• Motor Type: Coreless motor

• Horn Gear Spline：25T/∅4.90mm

• Gear Set Material： Metal gear

• Weight：21.6+ 0.5g

• Size：23*12*27mm

ME-X12 12.5kg Servo

• Operating Voltage：4.8~8.4VDC

• Max. Torque-6.0V：≥ 8 kg.cm

• Max. Torque-7.4V：≥ 11 kg.cm

• Max. Torque-8.4V：≥12.5 kg · cm

• No Load Speed-6.0V：≦0.07sec/60°

• No Load Speed-7.4V：≦0.06sec/60°

• No Load Speed-8.4V：≦0.06sec/60°

• Operating Travel Angle：90°+10°(500~2500 us)

• Motor Type: Brushless motor

• Horn Gear Spline：25T/∅4.90mm

• Gear Set Material: Metal gear

• Weight：21.6+ 0.5g

• Size：23*12*27mm

Package List:

• 1 × Brushless High Torque Micro Servo
• 1 × Servo Horn
