【US Warehouse】MEUS Racing 8CH 2.4GHz & Receiver for 1/10 SCX10 TRX4 1/18 TRX4M 1/24 SCX24

MEUS Racing 8 Channels, 2.4GHz with Receiver Designed for 1/8, 1/10, 1/18, and 1/24 RC crawler cars, boats, and upgrade parts for TRX4, TRX4M, SCX10, and SCX24.

M-10A Receiver's Specifications:

• Model Number: M-10A

• Channels: 10
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V (300m)
• Dimensions: 36*23*13mm
• Gyro: No
• Weight: 8.5g
• Application: RC cars, RC boats, RC tanks, etc.

M-04A Receiver's Specifications:

• Model Number: M-04A
• Channels: 4
• Frequency range: 2.4GHz
• Working current: 20mA
• Receiving distance: 300-800m
• Info Feedback: Signal (50m)
• Input voltage: DC 4V-9V
• Voltage Feedback: No
• Dimensions: 32*18*13mm

• Gyro: No
• Weight: 5g
• Application: RC cars, RC boats, RC tanks, etc.

M-04B Receiver's Specifications:

• Model Number: M-04B
• Channels: 4
• Frequency range: 2.4GHz
• Working current: 20mA
• Receiving distance: 100-300m
• Info Feedback: Signal (50m)
• Input voltage: DC 4V-9V
• Voltage Feedback: No
• Dimensions: 22*15*10mm
• Gyro: No
• Weight: 3g
• Application: RC cars, RC boats, RC tanks, etc.

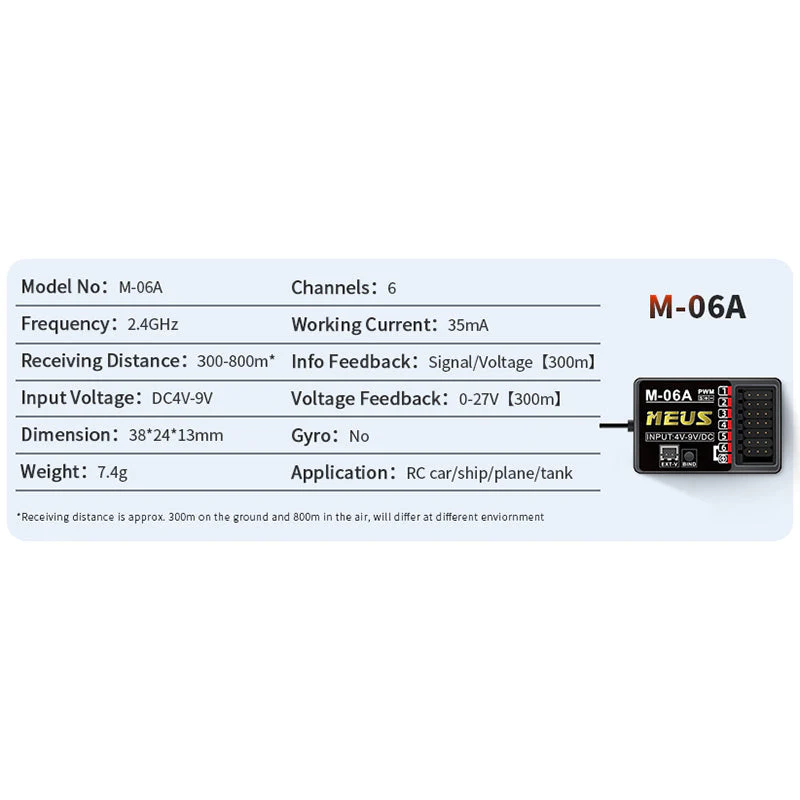

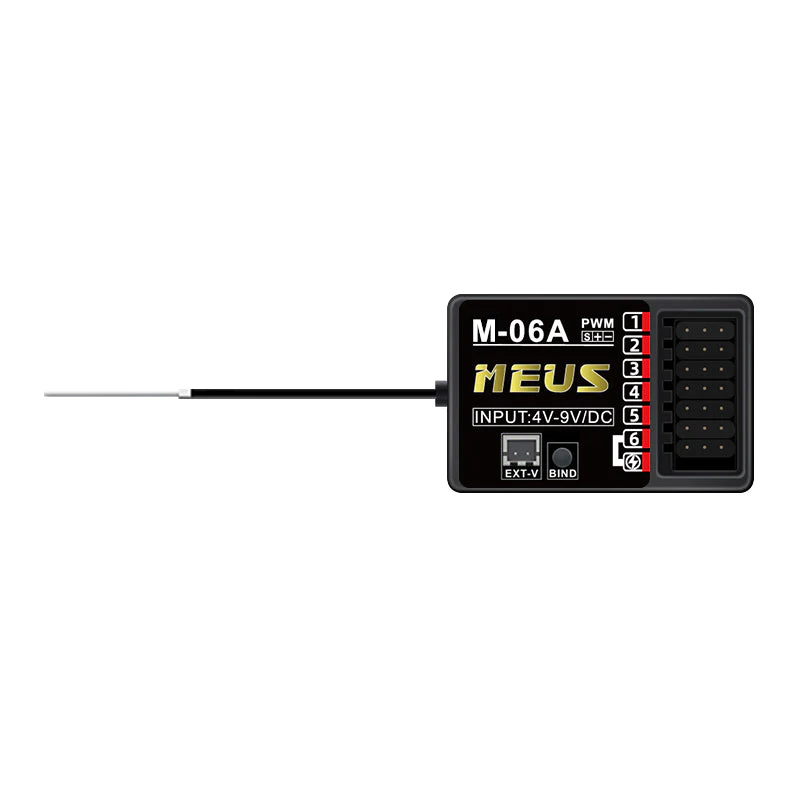

M-06A Receiver's Specifications:

• Model Number: M-06A
• Channels: 6
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage (300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V(300m)
• Dimensions: 38*24*13mm
• Gyro: No
• Weight: 7.4g
• Application: RC cars, RC boats, RC tanks, etc.

M-06AT Receiver's Specifications:

• Model Number: M-06AT
• Channels: 6
• Frequency range: 2.4GHz
• Working current: 39mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage (300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V(300m)
• Dimensions: 38*24*13mm
• Gyro: Yes (not for planes)
• Weight: 7.4g
• Application: RC cars, RC boats, RC tanks, etc.

M-01A Receiver's Specifications:

• Model Number: M-01A
• Channels: 8
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage(300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V (300m)
• Dimensions: 38*25*13mm
• Gyro: No
• Weight: 10g
• Application: RC cars, RC boats, RC tanks, etc.
• Other functions: With light control (Can control turn signals and brake lights)

How to Use the Light Control of ME-01A 8CH Receiver

Default Settings of Ports on Receiver:

• No.1 Left turn signal

• No.2 Right turn signal

• No.3 Reversing light

• No.4 Headlight

• No.5 Parking light

• No.6 Flashing light

• No.7 Same voltage as receiver input
