MEUS Racing ME-8A 8CH RC Transmitter & M-08A Receiver for 1/24 SCX24 1/18 TRX4M 1/10 SCX10 TRX-4 RC Models
MEUS Racing ME-8A 8CH 2.4GHz RC Transmitter with M-08A Receiver for 1/24 SCX24 1/18 TRX4M 1/10 SCX10 TRX-4 RC Models.
Key Features:
- 【Self-developed 2.4GHz technology】Stable performance and greater anti-interference ability.
- 【Within 3s response time】Comes with a power amplifier to extend the remote control distance to ground distance max.300 meters and air distance max.800 meters.
- 【Clear UI and color screen】Allows you to get real-time parameters of each channel at a glance.
- 【Great Functionality】This RC transmitter is equipped with fail-safe, cruise control, and low-voltage warning features, and offers a wide range of functions to meet various customization needs, making it suitable not only for beginners but also ideal for professionals.
- 【Coach Mode】Allows two transmitters to control one car, together with one priority transmitter, to complete training exercises or fun parent-child activities.

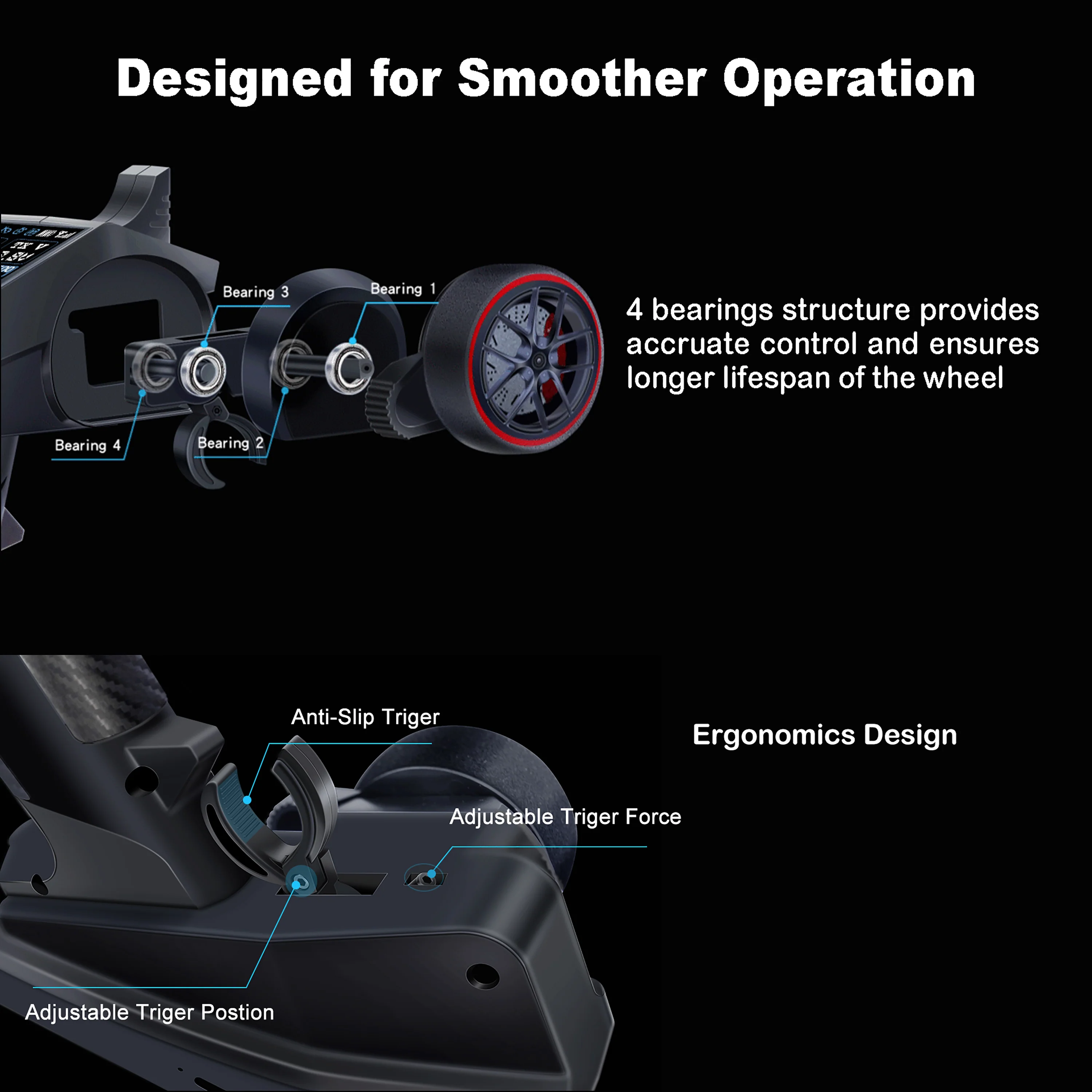

- 【User-friendly and Ergonomics Design】(1) Comes with lock function to avoid misoperation, 15s auto-off function, and it's rechargeable; (2) The 4-bearing structure wheel and the anti-slip trigger with adjustable force and position ensure smoother and accurate operation.
- 【All Terrains Available】This RC transmitter and receiver kit can be used for off-road and on-road use, e.g., RC crawler, RC short course car, RC boat, RC motorcycle, etc., and various scale models, e.g., 1/5, 1/8, 1/10, 1/18, 1/24 scales.
Specifications:
Manual>>MEUS Racing ME-8A User Manual
Software Update file V3.380>> MEUS Racing ME-8A Update file
Update tool>>MEUS Transmitter Update Tool
Note: If you want to update the transmitter, please also download the update tool.
Specifications of Transmitter:
- Model： ME-8A
- Suitable for Model Type: RC cars, RC boats, RC tanks, etc.
- Channels: 8
- RF range: 2.4GHz ISM
- RF Power: 160MA-300MA
- Modulation: GFSK
- Spread Spectrum: FHSS
- Response Time: PWM≤20MS
- Receiving sensitivity: -96 dBm
- Channel Resolution: 4096
- Transmitting power: 160MA-300MA
- Battery: 18650 (Rechargeable)
- Power supply: DC 3.7V-9V
- Gross Weight: 230g
- Control Distance: about 300m on the ground, 800m in the air.

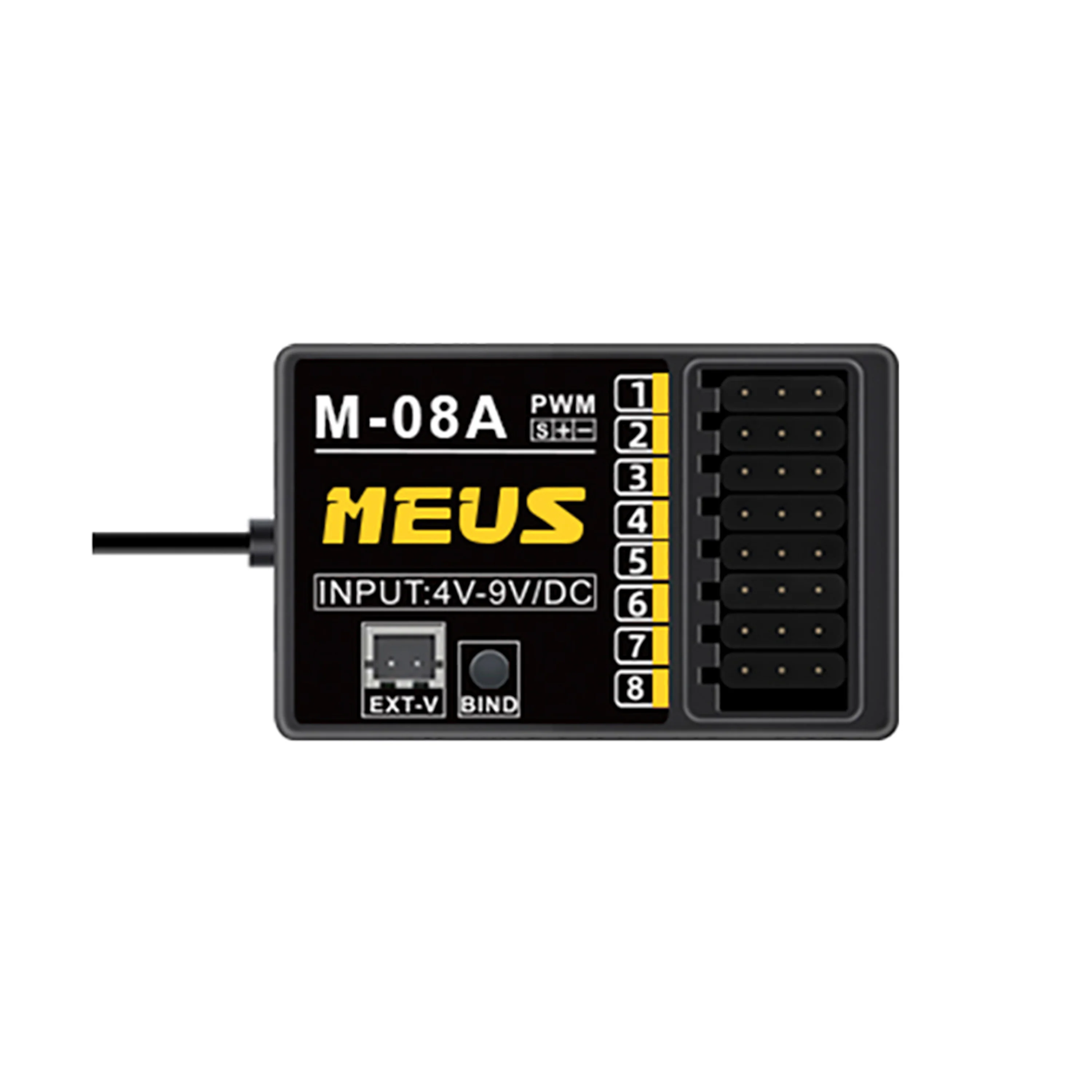

Specifications of Receiver:
M-08A Receiver's Specifications(comes with transmitter):
Model Number: M-08A
Channels: 8
Frequency range: 2.4GHz
Working current: 35mA
Receiving distance: 300-800m
Input voltage: DC 4V-9V
Voltage Feedback: 0- 27V (300m)

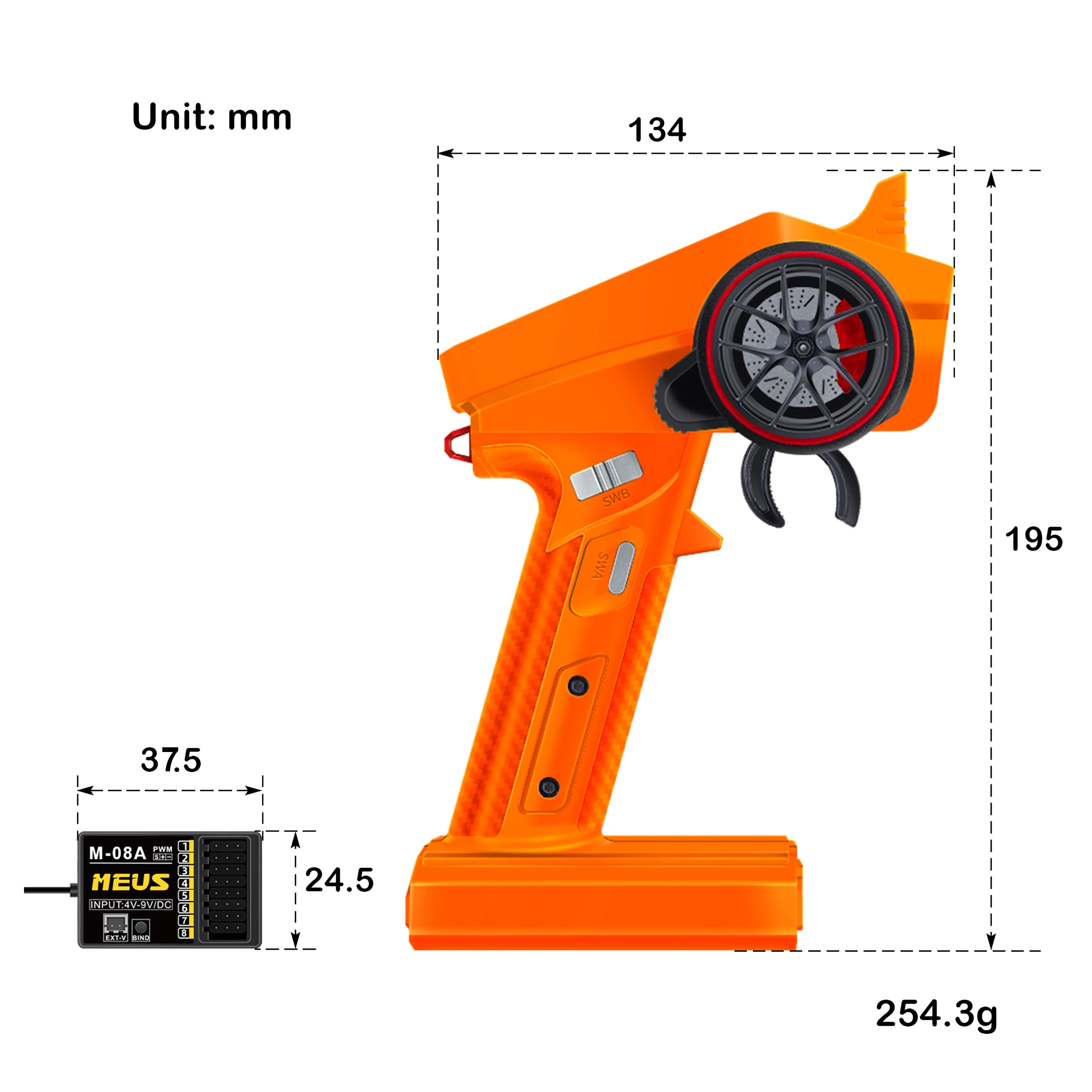

Dimensions: 38*23*13mm
Gyro: No
Weight: 7.7g
Power interface: Each port can be connected to the battery
Application: RC cars, RC boats, RC tanks, etc.
Note: The M-08A receiver cannot be connected directly to the light. It needs to be connected to a CH3 light controller to control the light.
Package List:
1 × ME-8A RC Transmitter
1 × M-08A Receiver
1 × 18650 Rechargeable Battery
1 × User Manual
1 × Type-C data cable
1 × Voltage return line
