【US Warehouse】MEUS Racing ME25 V2 Brushed Mini ESC for 1/24 SCX24 1/18 TRX4M 1/30 SCX30

HAOMEUS Racing ME25 V2 25A Brushed Mini ESC for 1/24 Axial SCX24 1/18 TRAXXAS TRX4M REDCAT ASCENT-18 RC Crawler Upgrades Parts.

Key Features:

• 1. Designed for Micro Crawler: Suitable for 1/24 SCX24 1/18 TRX4M ASCENT-18 and 1/30 SCX30 RC crawlers.

• 2. V2 Upgrade: The ME25 V2 ESC is meticulously tailored for Micro crawlers and is programmable.

• 3. Ultra Small Size: Allowing better layout of micro crawler for more mounting options and creativity.

• 4. Better Linearity: Providing accurate control and a smoother driving experience.

• 5. DAC Function: Downhill Assist Control function ensures stabler and easier speed control during low-speed downhill driving, reducing the impact of inertia on descents.

• 6. Efficient Heat Dissipation: Built-in thermally conductive sealant to get rapid conduction of internal heat.

• 7. Multi-Protection: Built-in with Low-voltage protection, over-heat protection, throttle signal loss protection, BEC over-current protection, and short circuit protection.

Note:

• The package includes a 2S balance plug, which can be used directly for power generation via a JST adapter.
• If you have a pH 2.0 battery, you can use the plug directly. Otherwise, use a 2S LiPo balance cable to draw power from the balance plug.
• If your battery is a JST battery, no adapter is needed.
• The black box that comes with V2 is not suitable for the ME25 V1 ESC because it does not support programming.
• This ESC does not fit a brushless transmission and the MD24 Dig chassis.

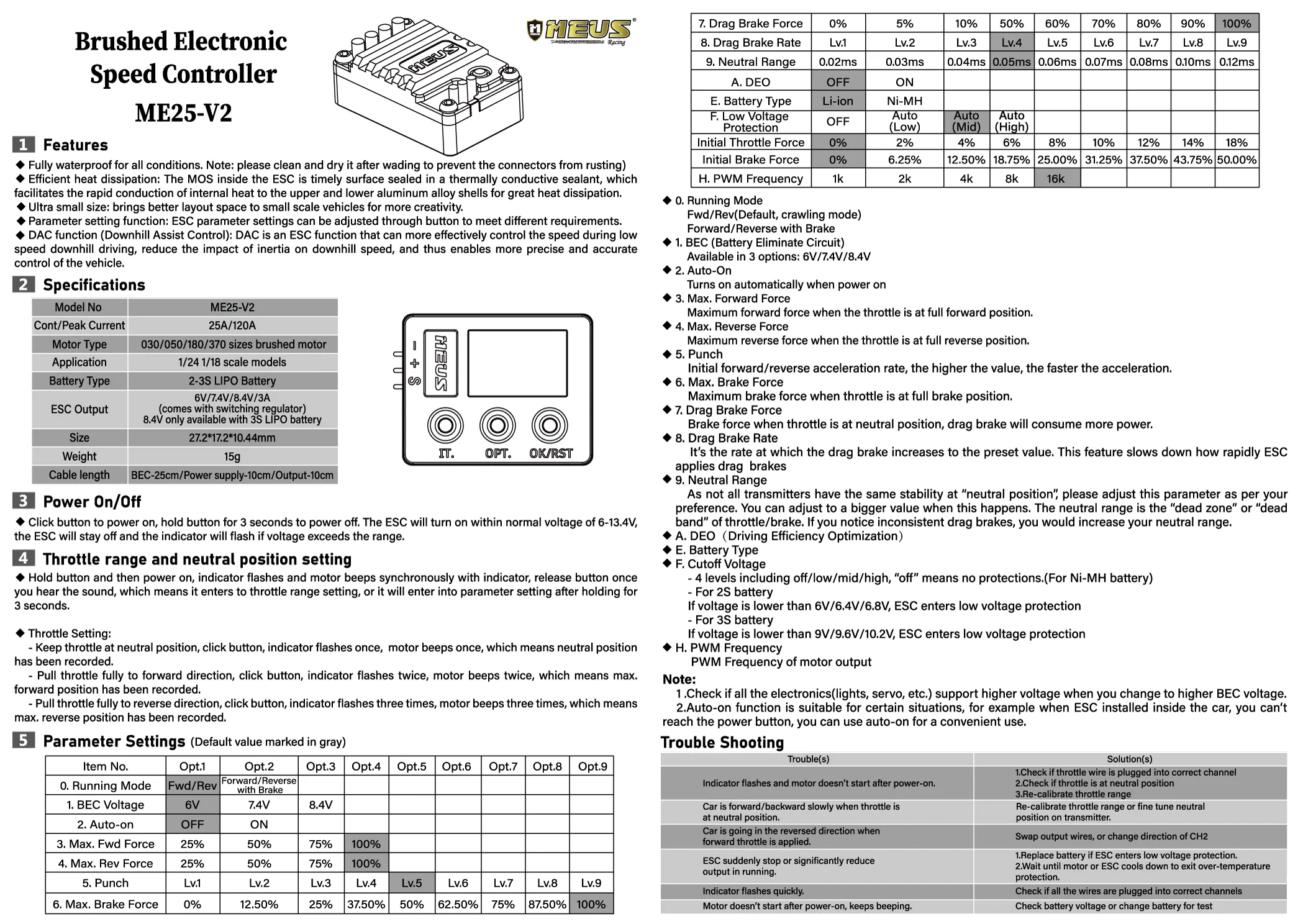

Programmable :

• (0) Running Mode;
• (1) BEC Voltage;
• (2) Auton-On;
• (3) Max.Fwd Force;
• (4) Max. Rev Force;
• (5) Punch;
• (6) Max. Brake Force;
• (7) Drag Brake Force;
• (8) Drag Brake Rate;
• (9) Neutral Range; (A) DEO; (E) Battery Type; (F)Low Voltage Protection: (H) PWM Frequency.

Specifications:

• Model No: ME25-V2
• Cont/Peak Current: 25A/120A
• Motor type: 030/050/180/370 sizes brushed motor
• Applications: 1/24, 1/18 scale models
• Battery type: 2-3S Lipo battery
• ESC Output: 6V/7.4V/8.4V/3A((comes with switching regulator) (8.4V only available with 3S LiPO battery)
• Weight: 15g
• Cable length: BEC-25cm/Power supply-10cm/Output-10cm
• Compatible with 030/050/180/370 brushed motors with these plugs: TRX4M, JST-PH 2.0

• Compatible with 2-3S lipo batteries with these plugs: JST-PH 2.0, TRX-4M, JST-XH 2.54

Package List:

• 1 × Micro RC Car ESC

• 1 × TRX4M Motor Adapter Cable

• 1 × TRX4M Battery Adapter Cable

• 1 × SCX24 Motor Adapter Cable

• 1 × 3S LiPO battery Cable

• 1 × 2S LiPO battery Cable
