MEUS Racing Brushless High Torque Micro Shifting Servo Supports 8.4V/12.5KG 8.4V/8.5KG for 1/24 SCX24 1/18 TRX4M RC Car

Key Features

• 1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/24 and 1/18 models.

• 2. Brushless motor provides high-speed response and high torque.

• 3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.

• 4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy, and longer service life.

• 5. 8.5KG ME-X8 servo and 12.5KG ME-X12 servo are not waterproof and water-resistant.

Specifications:

Servo Arm Material: Metal

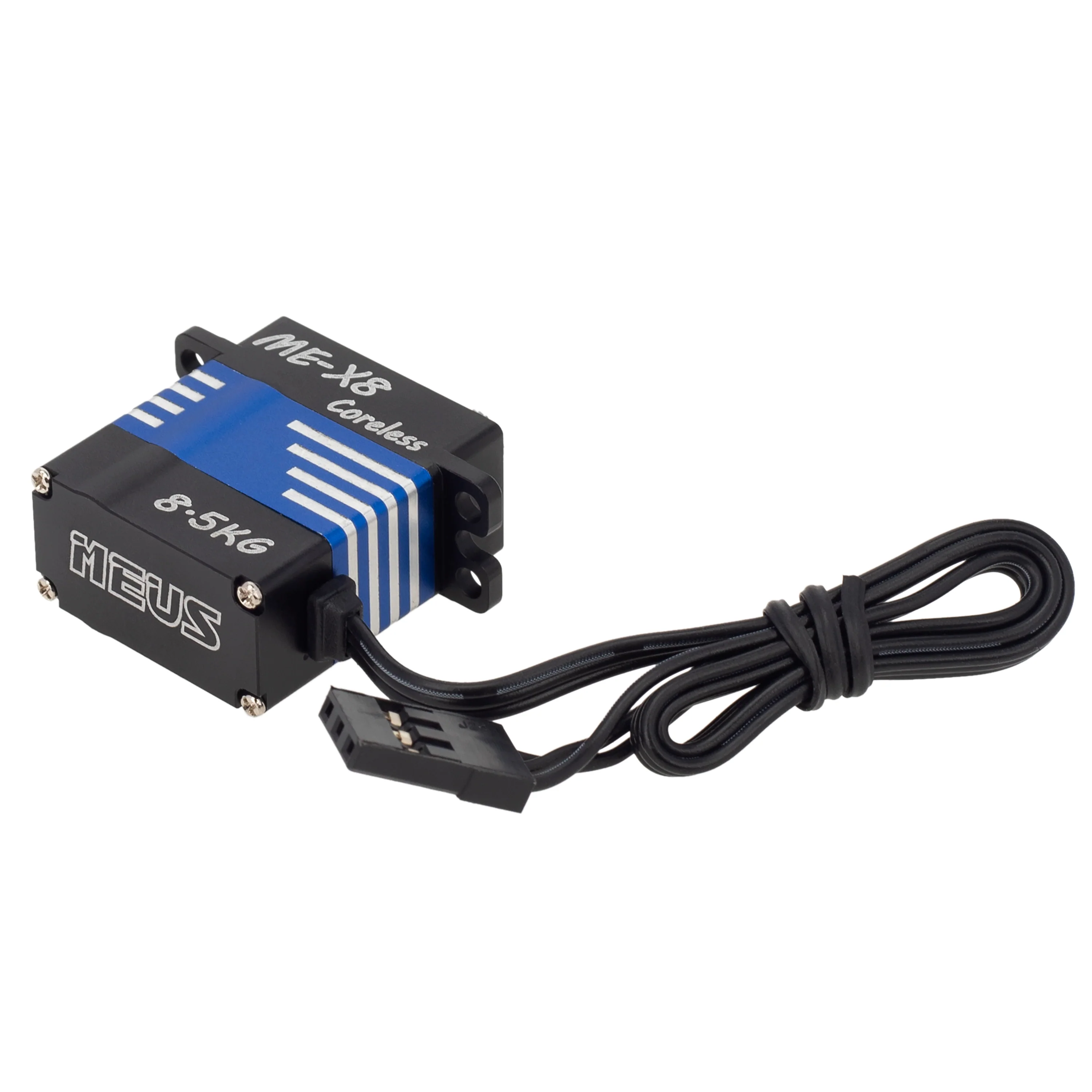

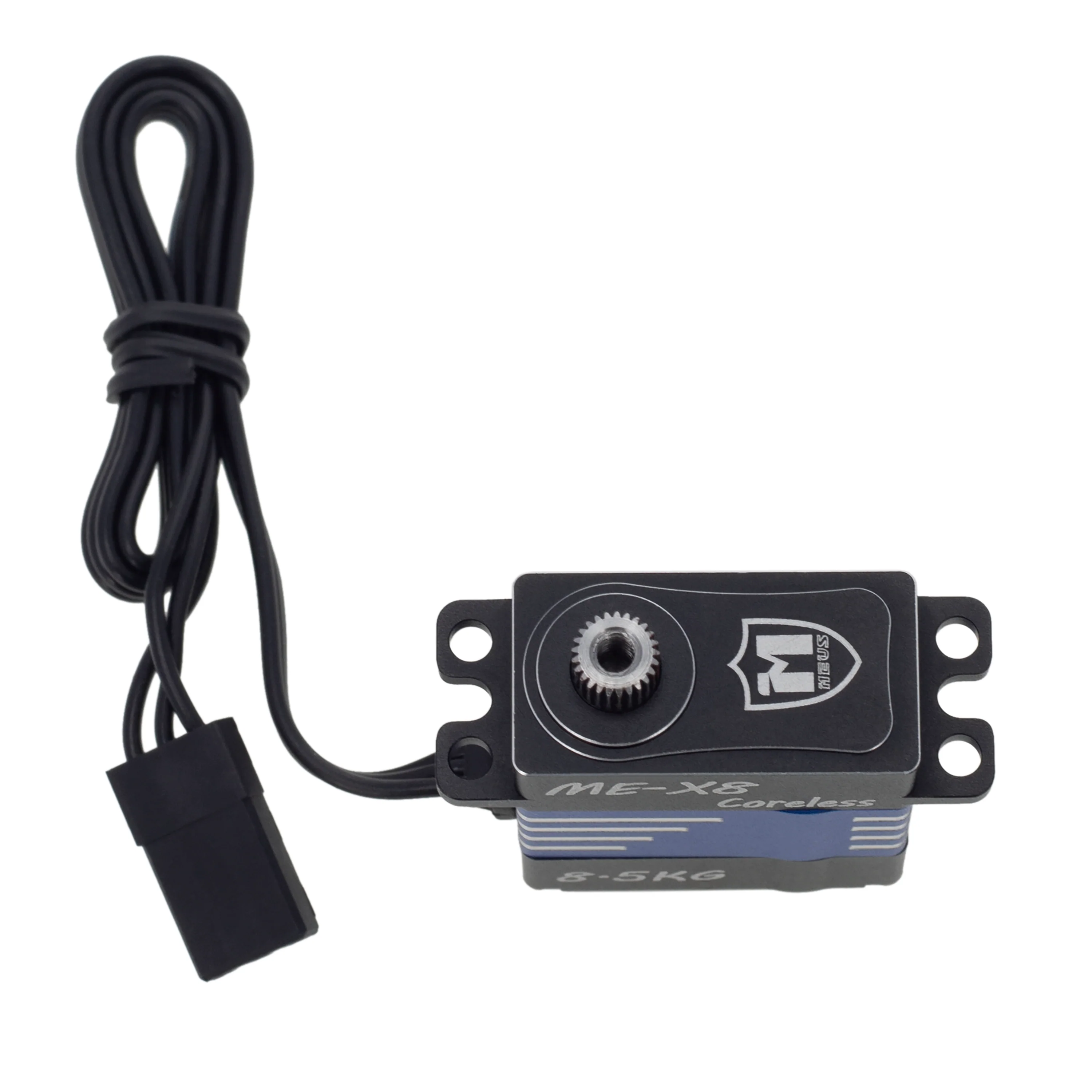

Product Number: ME-X8

• Operating Voltage: 4.8~8.4VDC
• Max. Torque-6.0V: ≥ 6 kg.cm
• Max. Torque-7.4V: ≥ 7.5 kg.cm
• Max. Torque-8.4V: ≥8.5 kg.cm
• No Load Speed-6.0V: ≦0.07sec/60°
• No Load Speed-7.4V: ≦0.06sec/60°
• No Load Speed-8.4V: ≦0.058sec/60°
• Operating Travel Angle: 180°+10°(500~2500 us)
• Motor Type: Coreless motor
• Horn Gear Spline: 25T/∅4.90mm
• Gear Set Material: Metal gear
• Weight: 21.6+ 0.5g

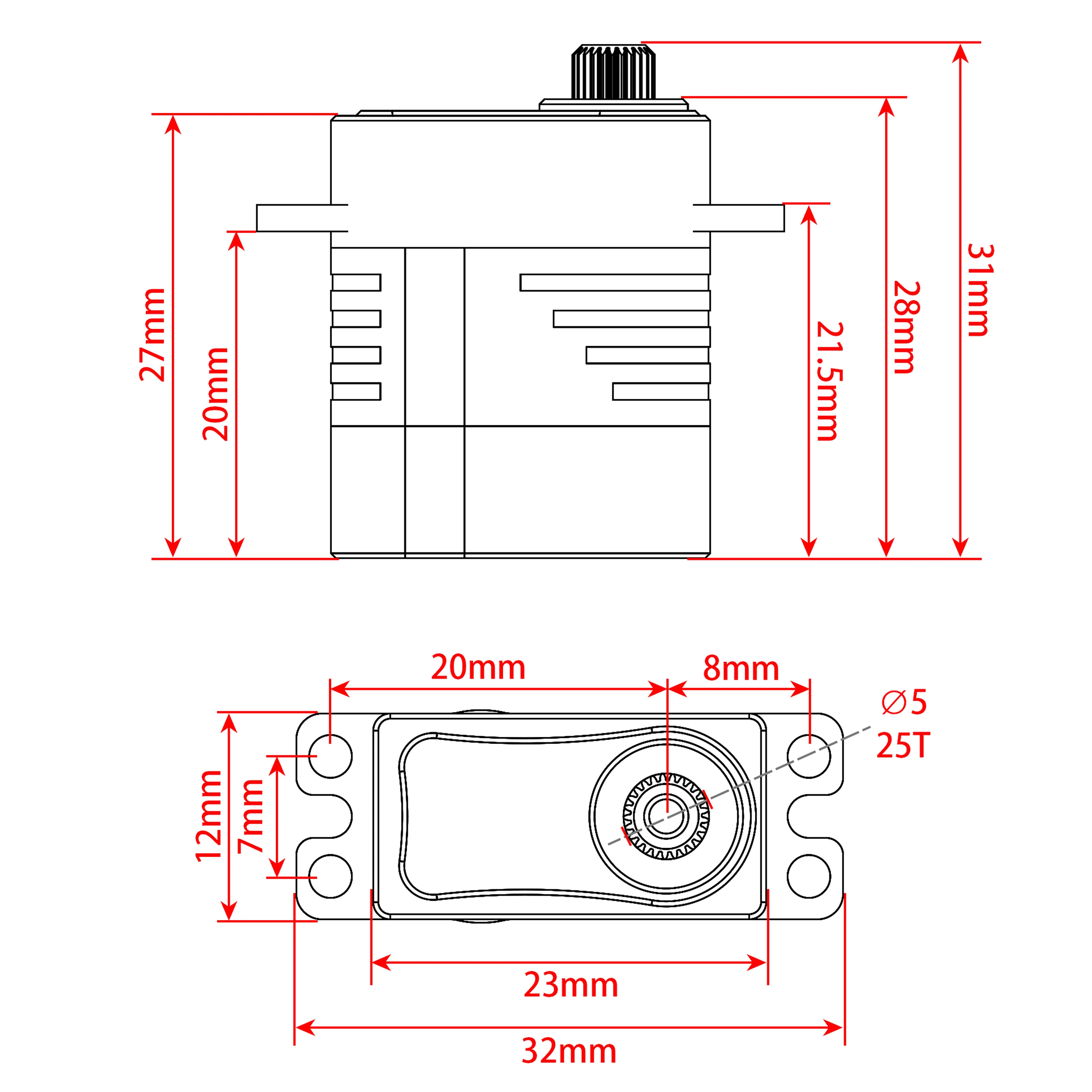

• Size: 23*12*27mm

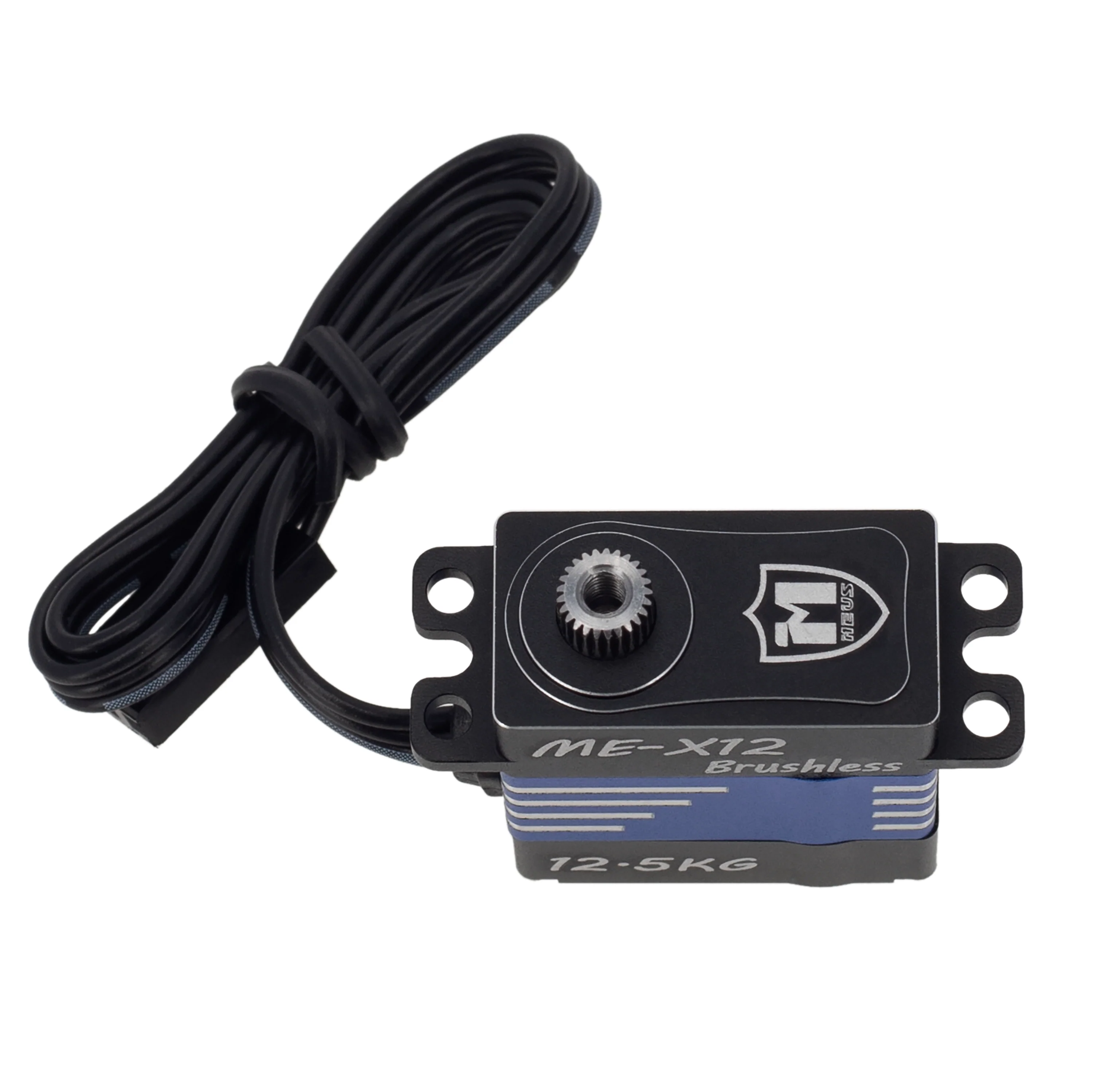

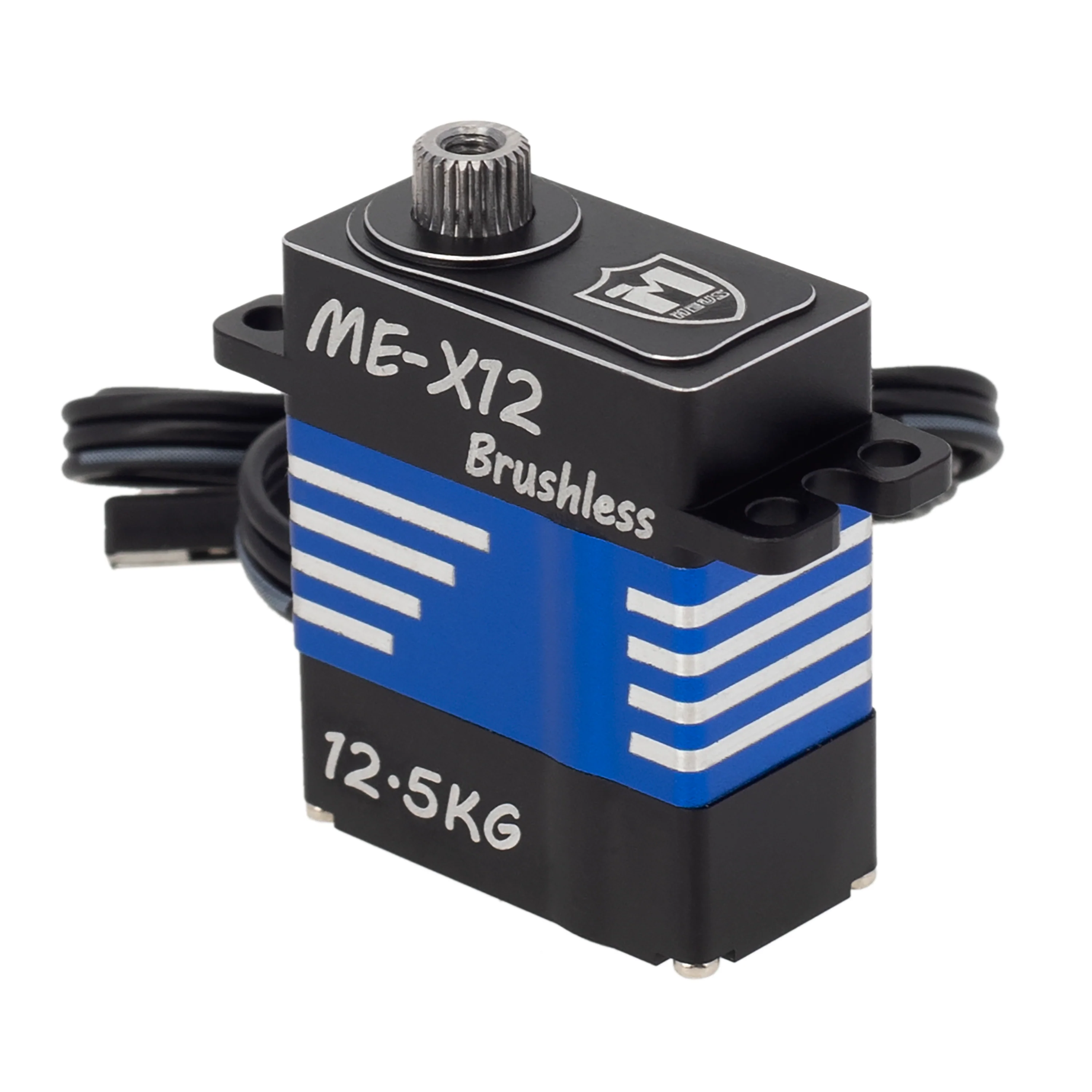

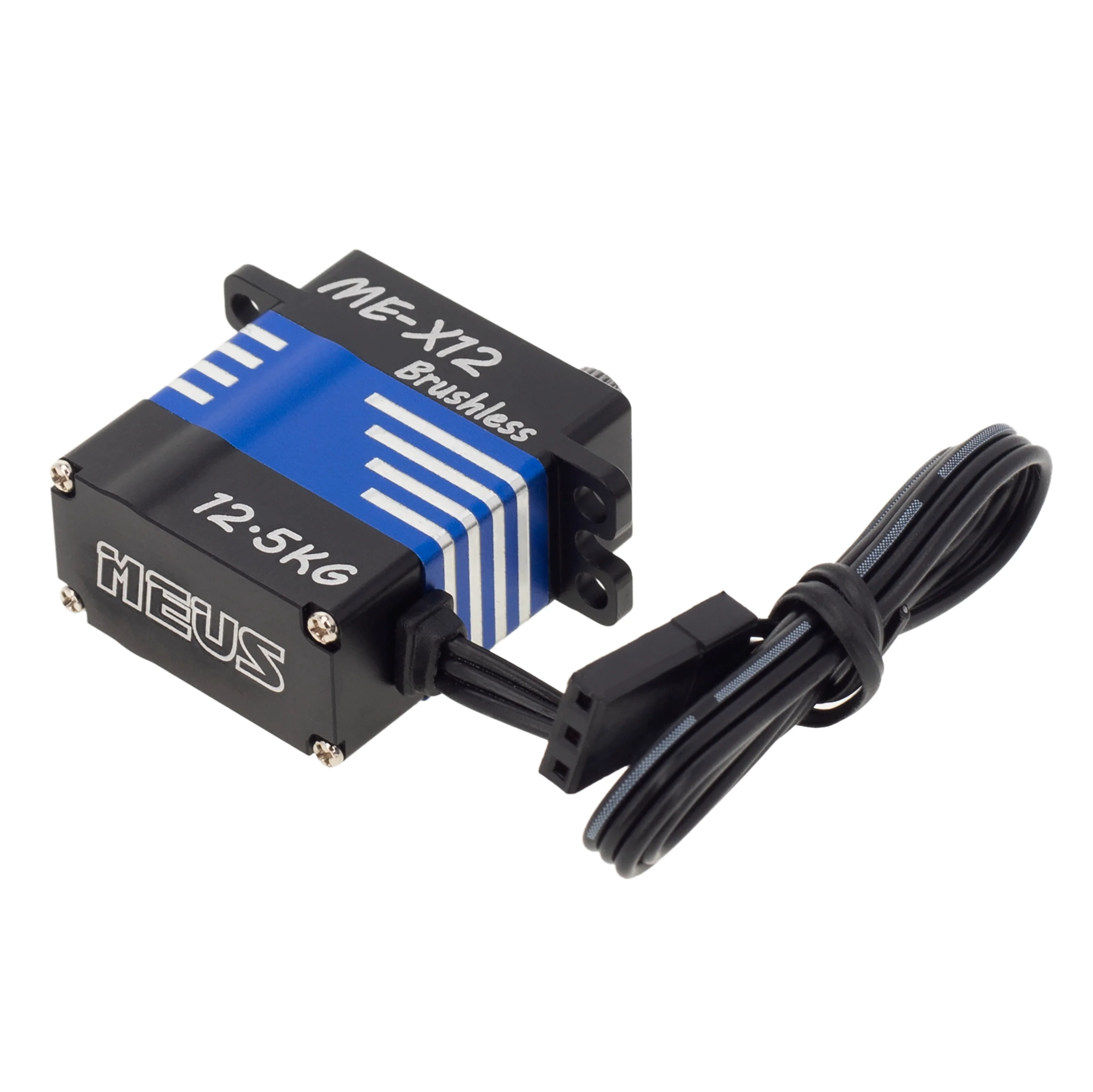

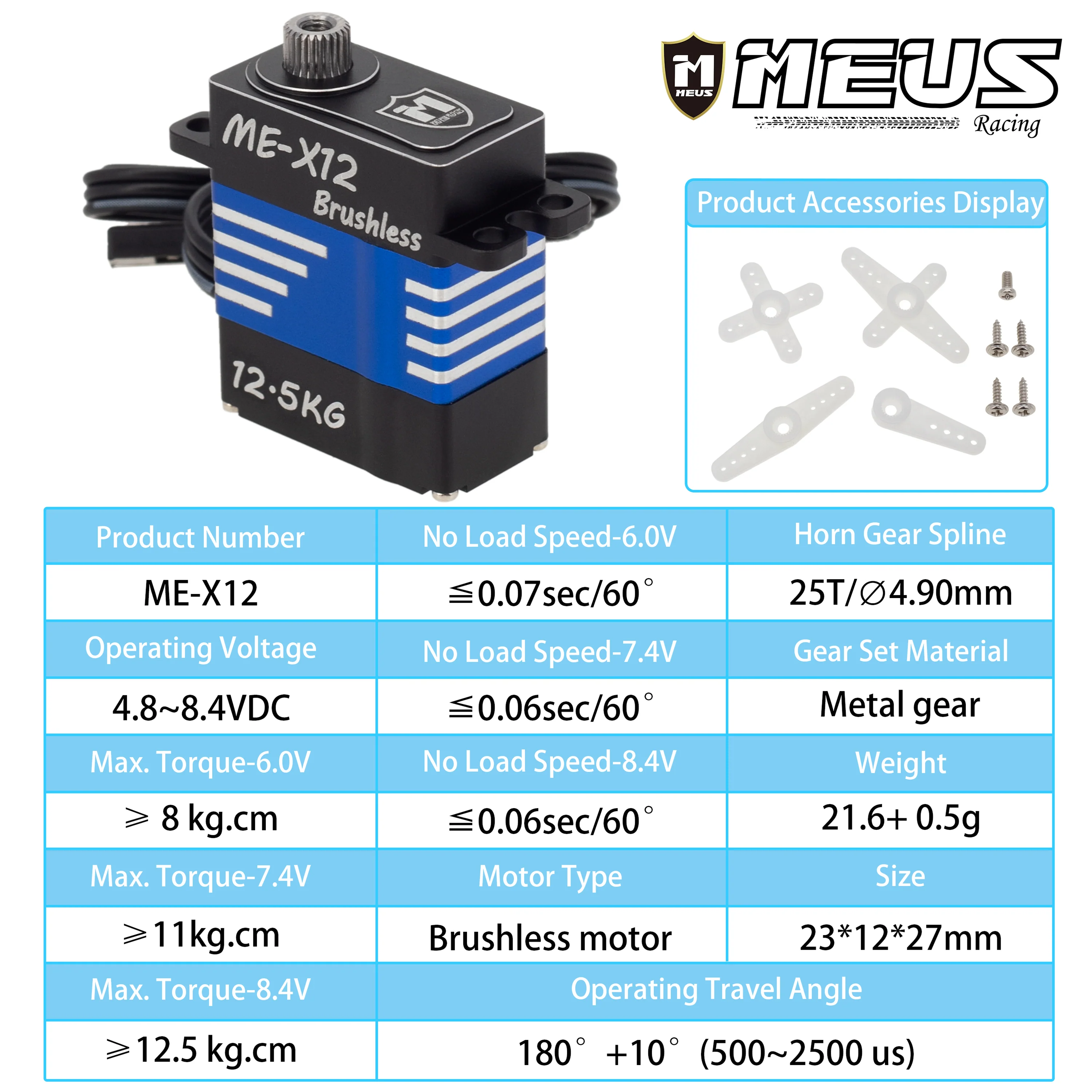

Product Number: ME-X12

• Operating Voltage: 4.8~8.4VDC
• Max. Torque-6.0V: ≥ 8 kg.cm
• Max. Torque-7.4V: ≥ 11 kg.cm
• Max. Torque-8.4V: ≥12.5 kg.cm
• No Load Speed-6.0V: ≦0.07sec/60°
• No Load Speed-7.4V: ≦0.06sec/60°
• No Load Speed-8.4V: ≦0.06sec/60°
• Operating Travel Angle: 180°+10°(500~2500 us)
• Motor Type: Brushless motor
• Horn Gear Spline: 25T/∅4.90mm
• Gear Set Material: Metal gear
• Weight: 21.6+ 0.5g
• Size: 23*12*27mm

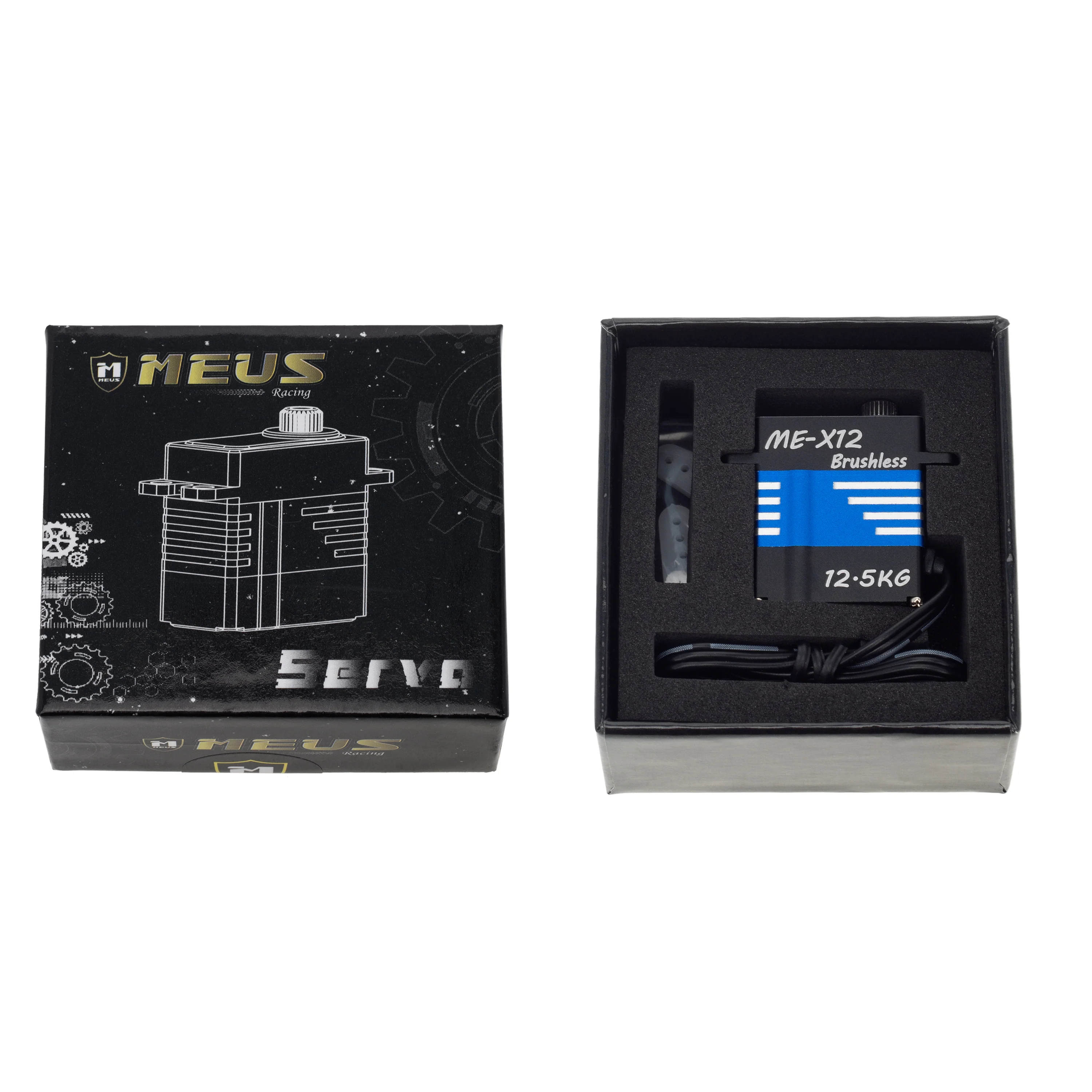

Package List

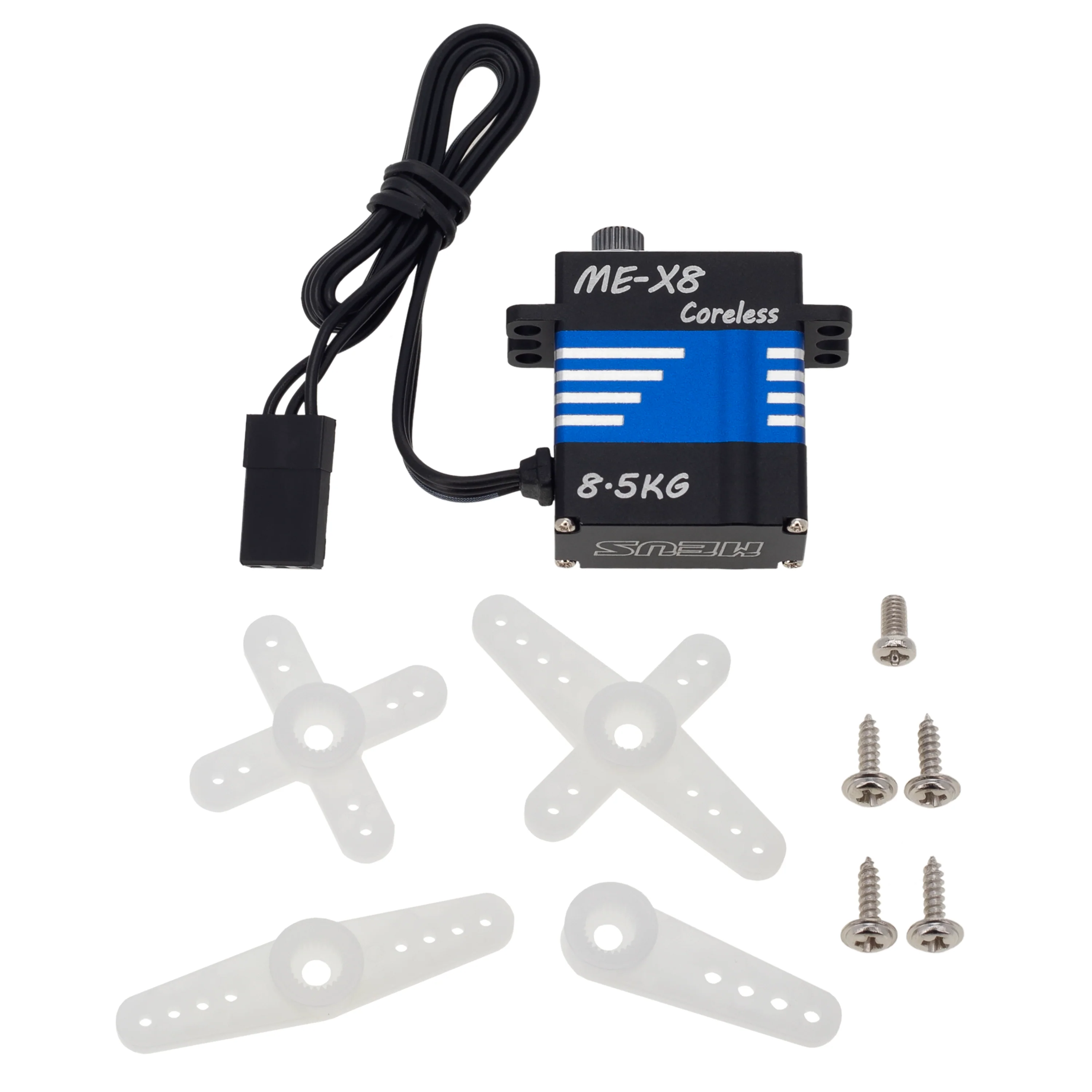

• 1 × 8.5KG ME-X8 servo

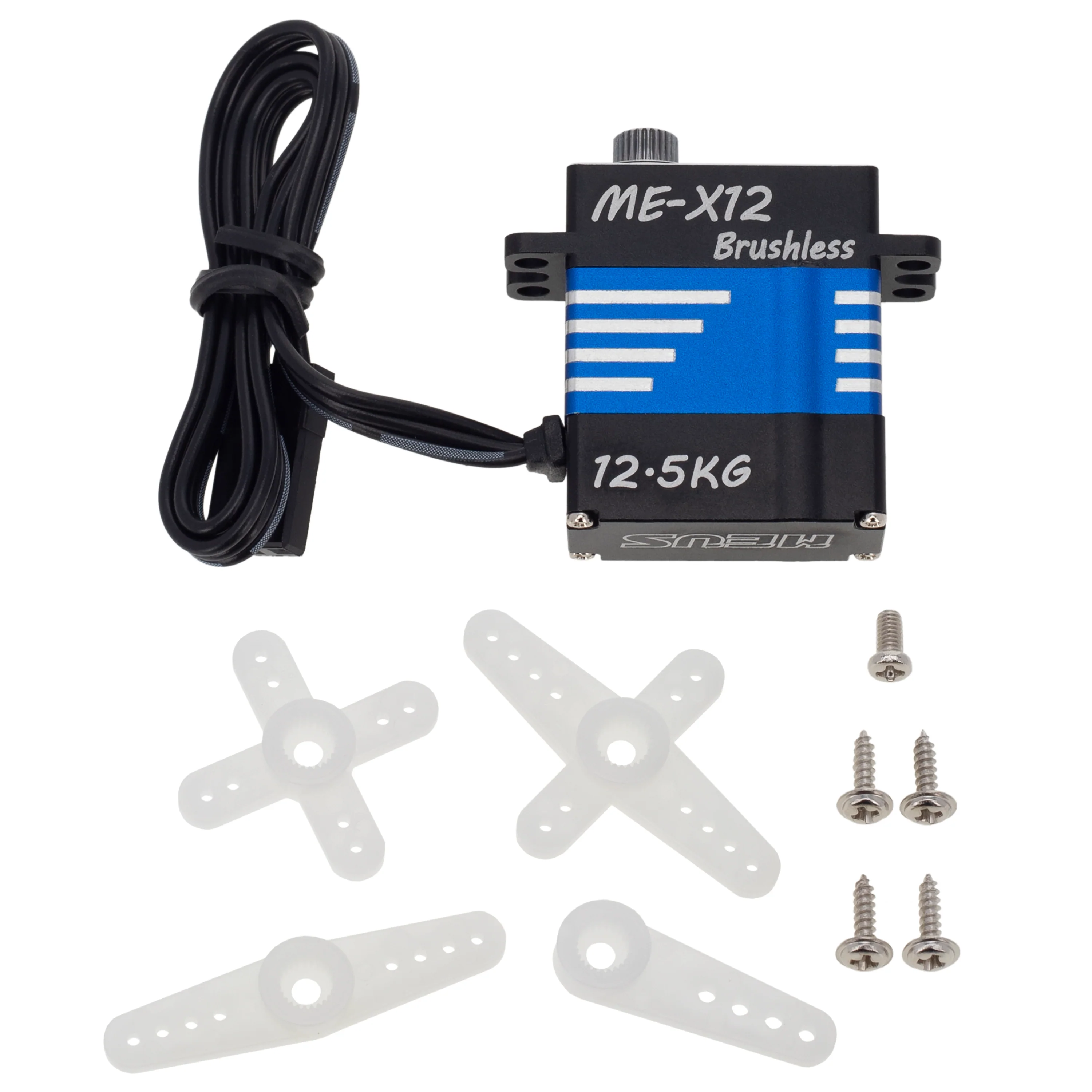

• 1 × 12.5KG ME-X12 servo (option)

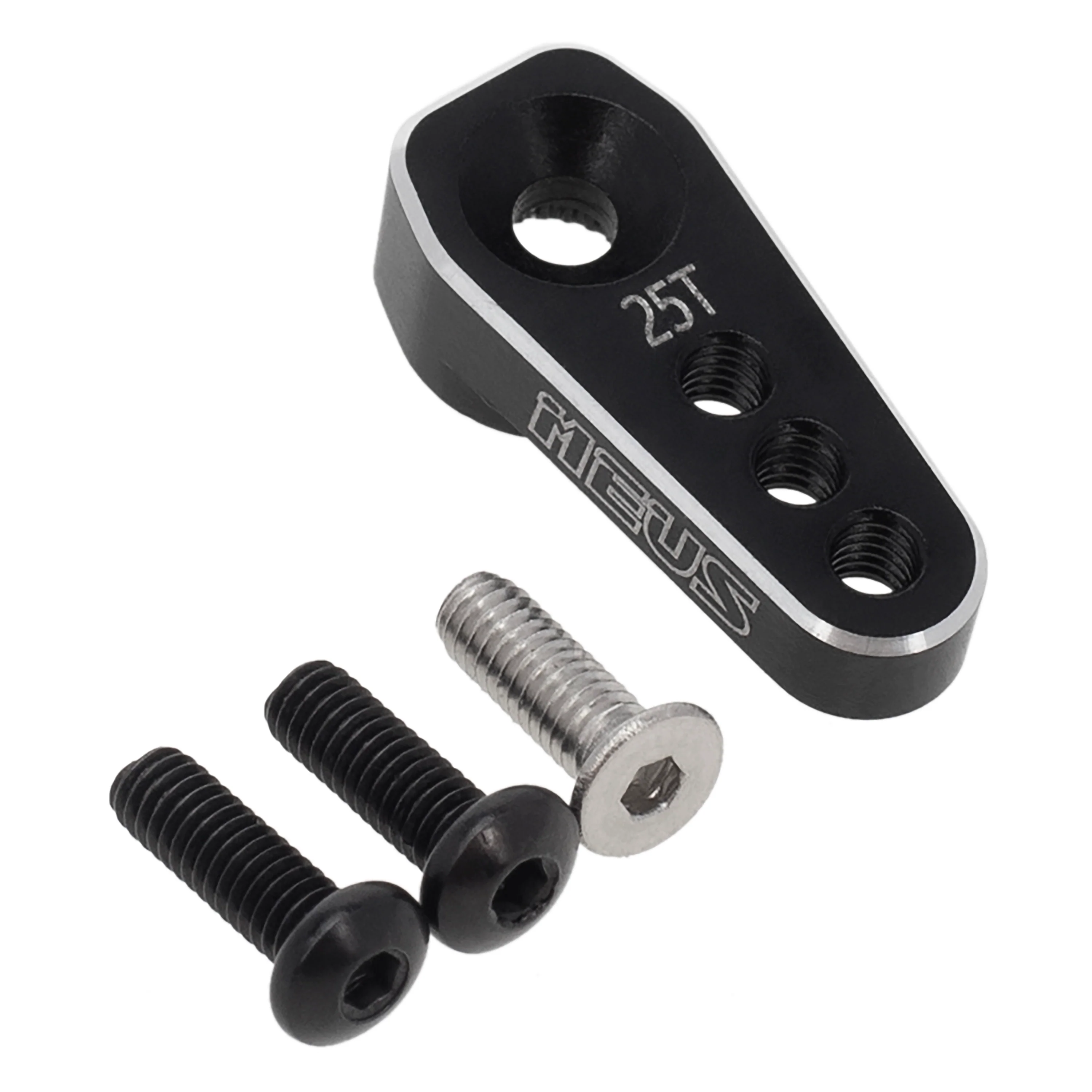

• 1 × Metal Servo Arm for SCX24 (option)
• 1 × Metal Servo Arm for TRX4M (option)
