MEUS Racing Rear Mount Radiator Cooling Fan with Lights for Vanquish Optic H10 1/10 RC Crawler

MEUS Racing Rear Mount Radiator Cooling Fan with Lights for Vanquish Optic H10 1/10 RC Crawler.

Key Features:

• 1. Made by ABS molding injection for a realistic radiator look with a cooling fan and lights

• 2. The fan speed and light brightness change as the throttle(CH2) position changes.

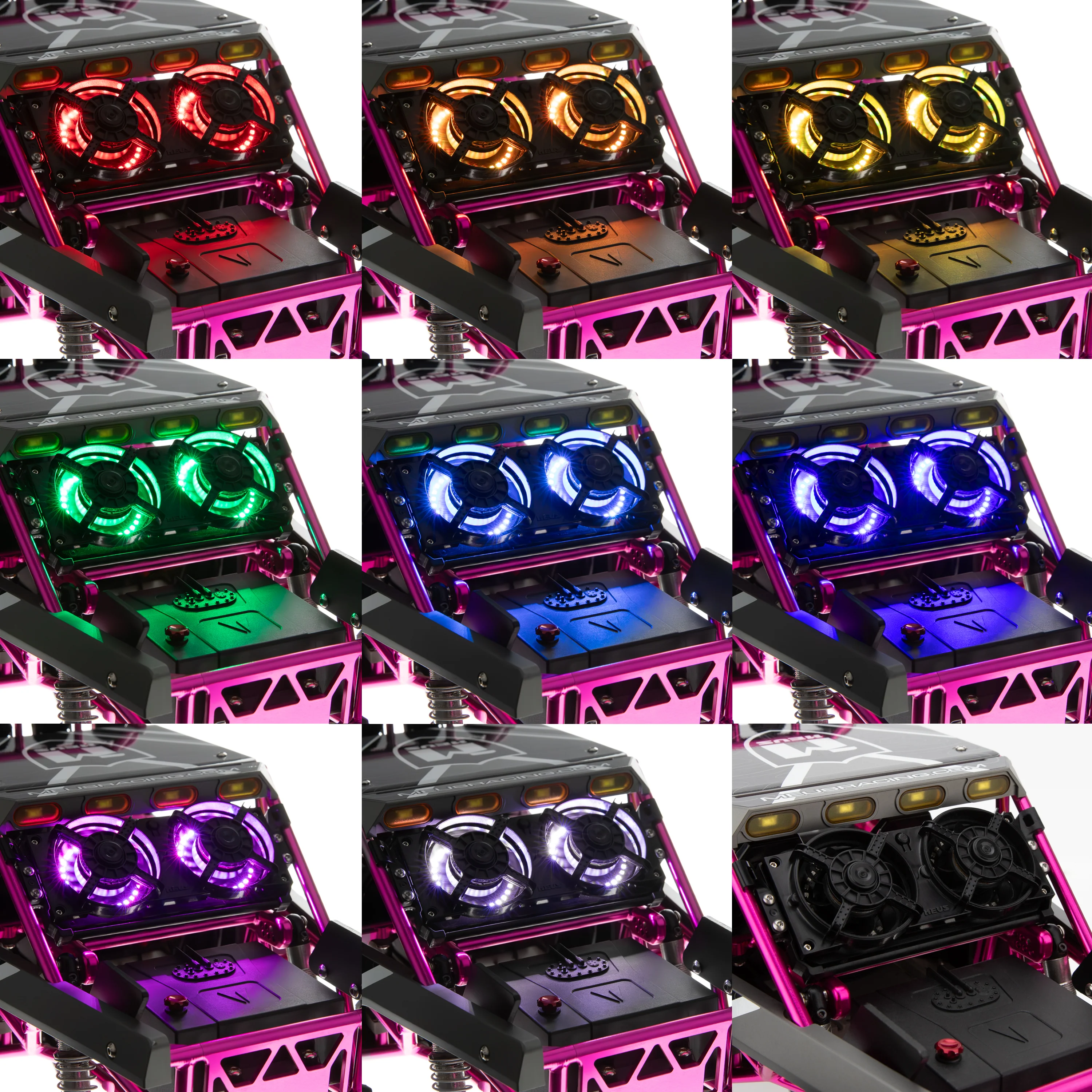

• 3. The cooling fan and the light can be turned on/off by the manual key on the cooling fan, providing up to 7 light colors that the manual key can switch.

• 4. Voltage: 5–8.4 V (connected by a Y-cable to the receiver to get the signal and power supply)

• 5. For other vehicles, you can design and 3D print your own bracket by referring to our public design files.
• 6. The black wire is connected to CH2 (throttle channel) via a Y-wire splitter.
• 3D print file for Rear Mount Radiator Cooling Fan

Specifications:

• Material: ABS
• Voltage: 5–8.4 V
• Weight: 48g

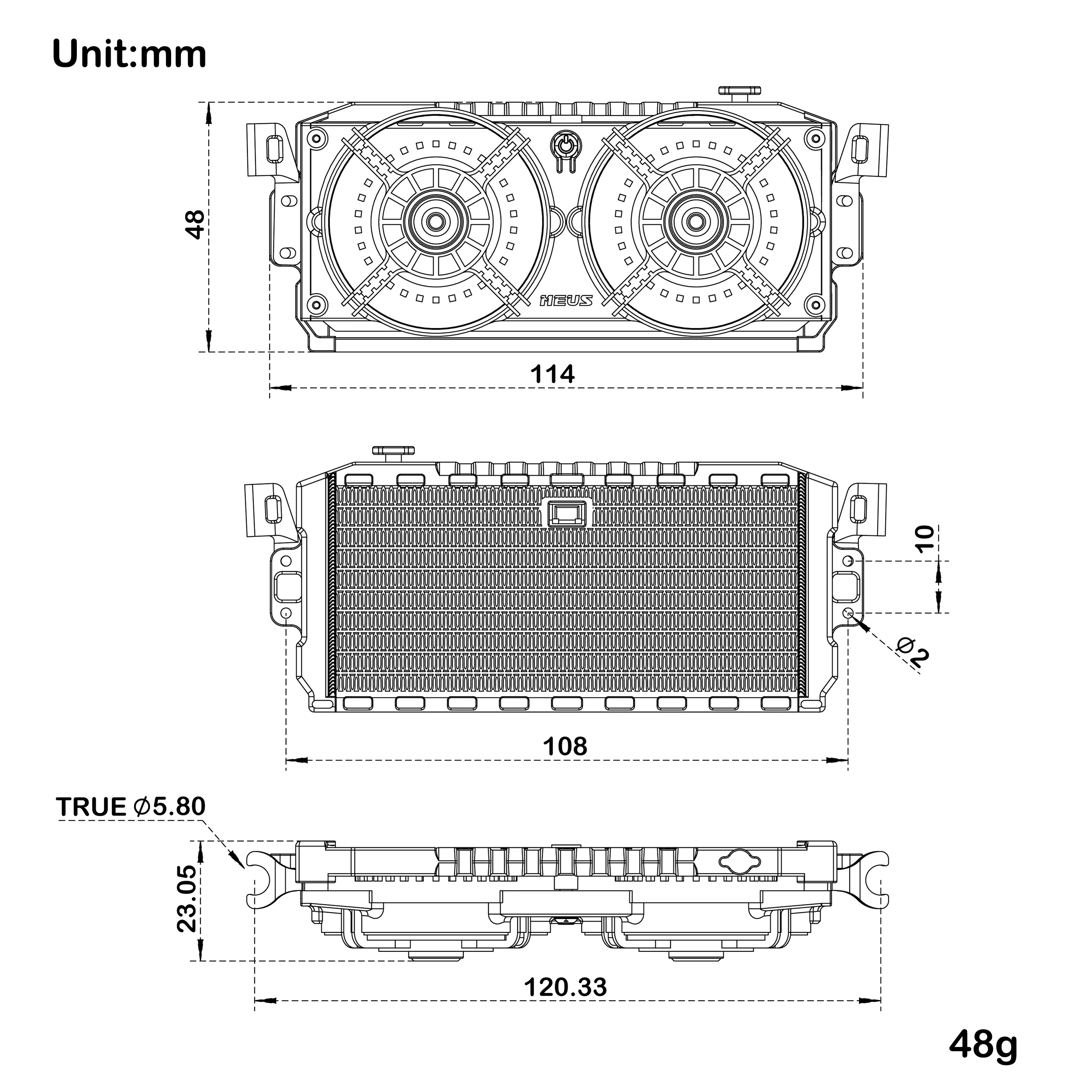

• Size: 114*48mm
• Screw size: 2.5*8mm

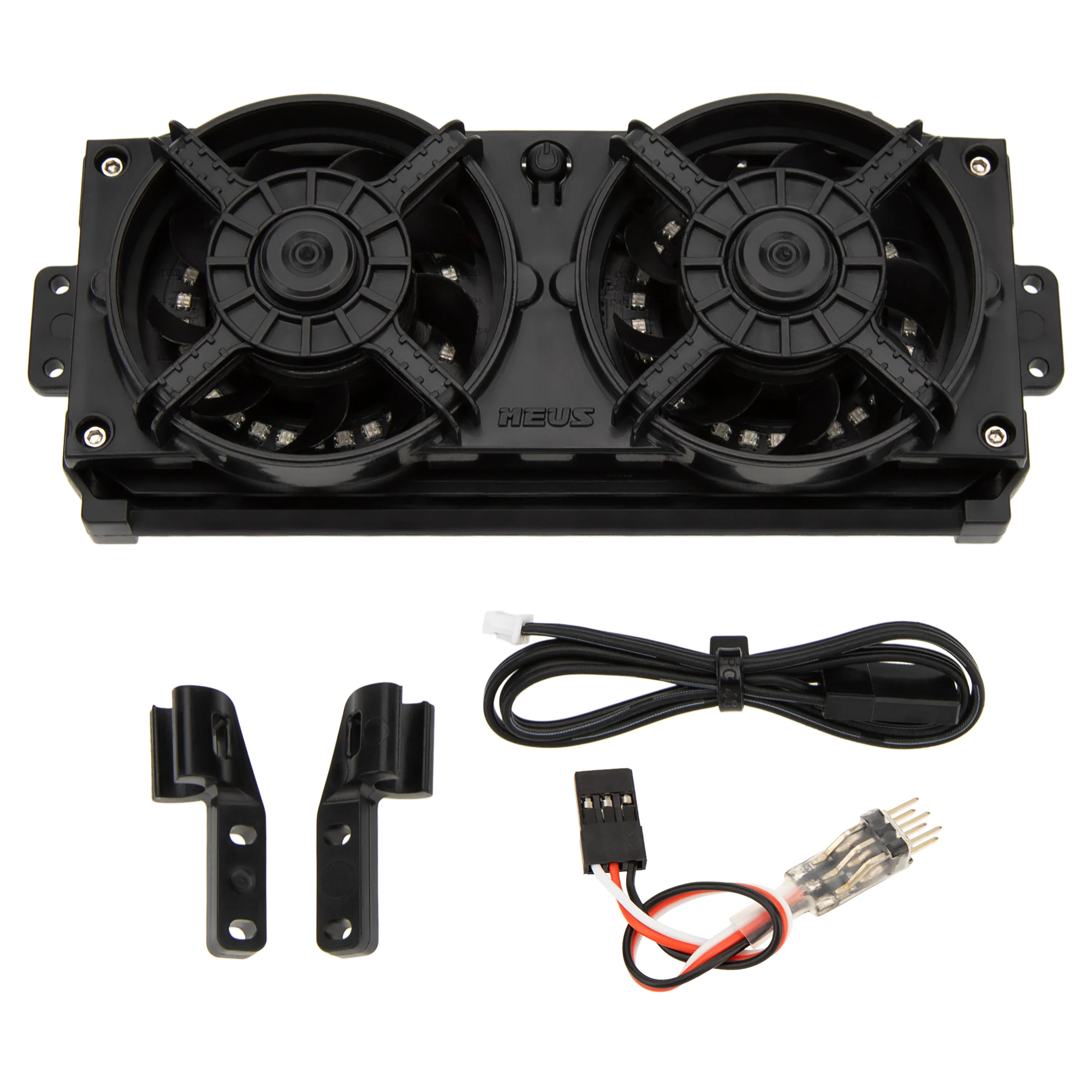

Package list:

• 1 × cooling fan
• 1 × Y cable
• 2 × H10 mounting bracket
