MEUS Racing ME-10B RC Transmitter 8CH 2.4GHz & Receiver with Coach Mode for 1/8 TRX4 1/10 SCX10 1/18 TRX4M 1/24 SCX24

MEUS Racing ME-10B RC Transmitter: 8 Channels, 2.4GHz with Receiver and Coach Mode, Designed for 1/8, 1/10, 1/18, and 1/24 RC crawler cars, boats, and upgrade parts for TRX4, TRX4M, SCX10, and SCX24.

Key Features:

• Self-developed 2.4GHz Technology: Offers stable performance and enhanced anti-interference capabilities.

• Fast Response Time: This product features a power amplifier that extends the remote control distance up to 300 meters on the ground and 800 meters in the air within 3 seconds.

• 8 Channels: Includes one 3-gear channel, two knob channels, and five button channels for versatile operations.

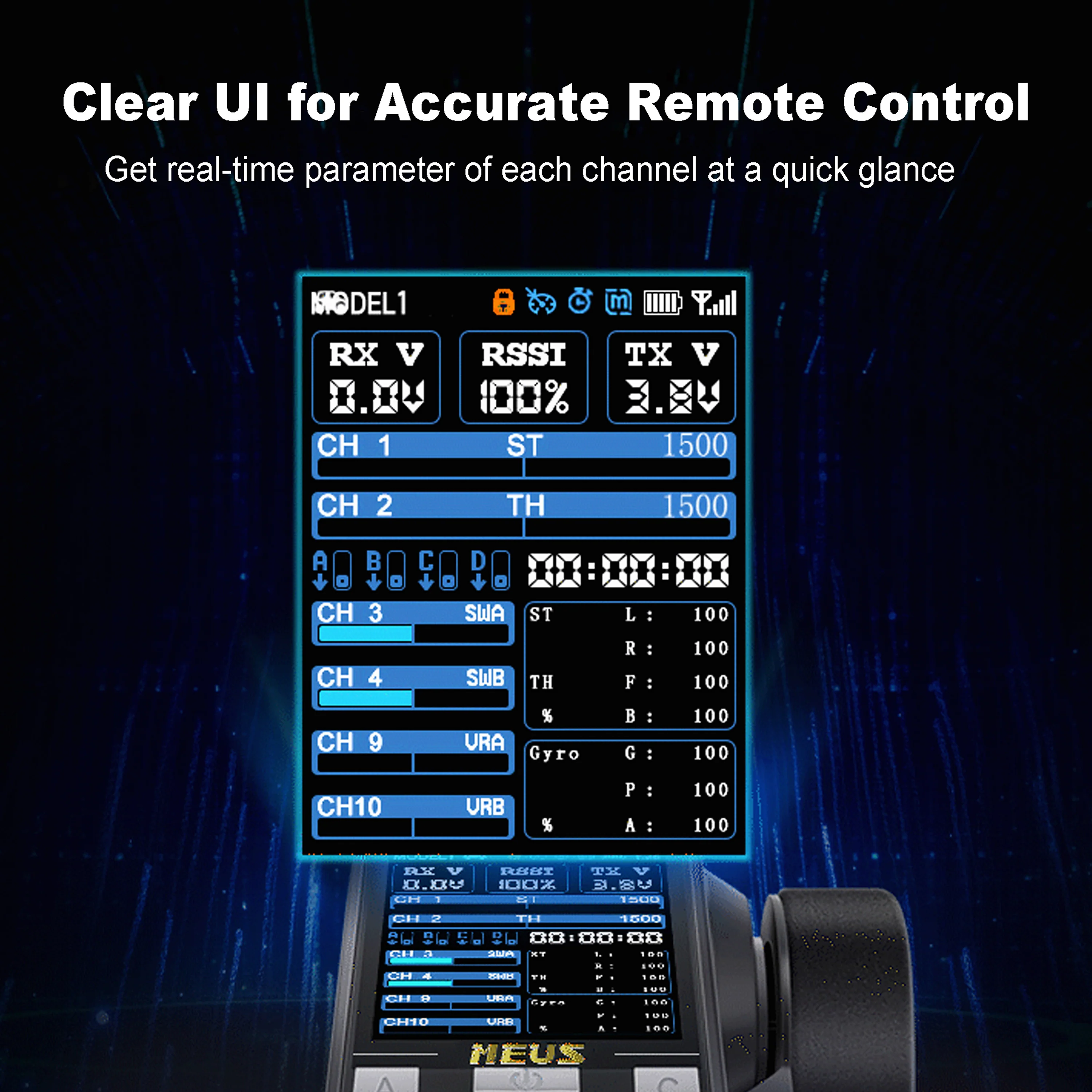

• Clear User Interface: Equipped with a color screen that displays real-time parameters for each channel at a glance.

• Robust Functionality: This RC transmitter includes fail-safe features, cruise control, low-voltage warnings, and a wide range of customizable functions, making it suitable for beginners and advanced users.

• Coach Mode: Allows two transmitters to control a single car simultaneously, with one transmitter having priority. This feature is great for training or engaging in parent-child activities.

• User-Friendly and Ergonomic Design:
    (1) Comes with a lock function to prevent accidental operations, a 15-second auto-off feature, and is rechargeable.
    (2) The 4-bearing wheel and anti-slip trigger, which can be adjusted for force and position, ensure smoother and more precise control.


• Versatile Terrain Compatibility: This RC transmitter and receiver kit is suitable for both off-road and on-road use, including RC crawlers, RC short course cars, RC boats, RC motorcycle

The transmitter can be used on 8 model cars and stores all the different settings for each car.

Manual>>ME-10B RC Transmitter Manual

Update file>>software version V3.280>> MEUS Racing ME-10B Update file

Update tool>>MEUS Transmitter Update Tool

Note: If you want to update the transmitter, please also download the update tool.

Specifications of Transmitter:

• Suitable for Model Type: RC cars, RC boats, RC tanks, etc.
• Channels: 8
• Frequency range: 2.4GHz
• RF Power: Less than 20dbm
• Response Time: PWM≤20MS
• Receiving sensitivity: -96dbm
• Transmitting power: 160MA-300MA
• Battery: 18650 (Rechargeable)
• Power supply: DC 3.7V-9V
• Net Weight: 190g
• Control Distance: about 300m on the ground, 800 on the air.
• Brushless system: support

M-10A Receiver's Specifications(comes with transmitter):

• Model Number: M-10A

• Channels: 10
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V (300m)
• Dimensions: 36*23*13mm
• Gyro: No
• Weight: 8.5g
• Application: RC cars, RC boats, RC tanks, etc.
• Unable to control lights.

Package List:

• 1 × RC Transmitter
• 1 × M-10A Receiver
• 1 × 18650 Rechargeable Battery
• 1 × User Manual
• 1 × Type-C data cable
• 1 × Voltage return line

Other Channels Receivers:

M-04A Receiver's Specifications:

• Model Number: M-04A
• Channels: 4
• Frequency range: 2.4GHz
• Working current: 20mA
• Receiving distance: 300-800m
• Info Feedback: Signal (50m)
• Input voltage: DC 4V-9V
• Voltage Feedback: No
• Dimensions: 32*18*13mm

• Gyro: No
• Weight: 5g
• Application: RC cars, RC boats, RC tanks, etc.
• Channel 1: For steering
• Channel 2: For throttle (connected to the motor)
• Channels 3 and 4: for PWM signals. They can be connected to servos, PWM relays, etc., depending on customer needs.
• The last channel with the lightning bolt emblem can be connected to lights or fans. It is recommended to connect a diode in parallel.

M-04B Receiver's Specifications:

• Model Number: M-04B
• Channels: 4
• Frequency range: 2.4GHz
• Working current: 20mA
• Receiving distance: 100-300m
• Info Feedback: Signal (50m)
• Input voltage: DC 4V-9V
• Voltage Feedback: No
• Dimensions: 22*15*10mm
• Gyro: No
• Weight: 3g
• Application: RC cars, RC boats, RC tanks, etc.
• CH4: CH4 is connected to the light; only the positive and negative poles can be connected, and the signal pin does not need to be connected. Using CH5 on the transmitter, you can control the LEDs connected to channel 4 on the receiver.
• CH1, CH2, CH3: All 3 channels can be connected to servos.
• CH4 can only connect to one small LED light and cannot control the light controller.
• If you need to connect the light controller, please connect to CH3.

M-06A Receiver's Specifications:

• Model Number: M-06A
• Channels: 6
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage (300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V(300m)
• Dimensions: 38*24*13mm
• Gyro: No
• Weight: 7.4g
• Application: RC cars, RC boats, RC tanks, etc.

Note: If you connect the negative pole and the signal in reverse, it will not be paired with the transmitter.

M-06AT Receiver's Specifications:

• Model Number: M-06AT
• Channels: 6
• Frequency range: 2.4GHz
• Working current: 39mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage (300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V(300m)
• Dimensions: 38*24*13mm
• Gyro: Yes (not for planes)
• Weight: 7.4g
• Application: RC cars, RC boats, RC tanks, etc.

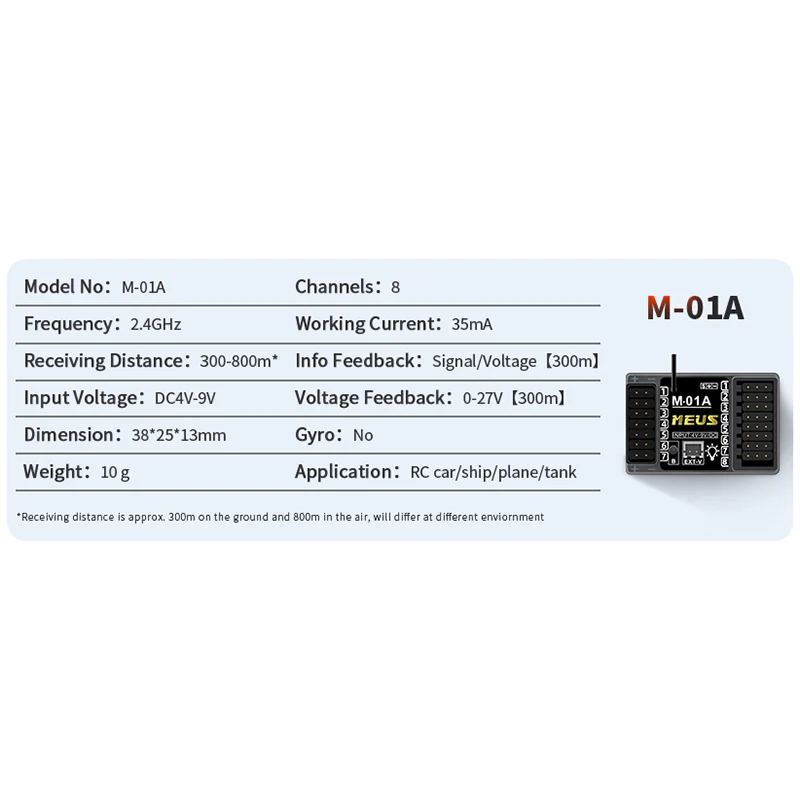

M-01A Receiver's Specifications:

• Model Number: M-01A
• Channels: 8
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage(300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0- 27V (300m)
• Dimensions: 38*25*13mm
• Gyro: No
• Weight: 10g
• Application: RC cars, RC boats, RC tanks, etc.
• Other functions: With light control (Can control turn signals and brake lights)

How to Use the Light Control of the ME-01A 8CH Receiver

Default Settings of Ports on Receiver:

• No.1 Left turn signal

• No.2 Right turn signal

• No.3 Reversing light

• No.4 Headlight

• No.5 Parking light

• No.6 Flashing light

• No.7 Same voltage as receiver input
