MEUS Racing V2 LCG Overdrive Transmission for Axial 1/10 SCX10 SCX10 II

MEUS Racing V2 Gold Rush LCG Overdrive Transmission Aluminum Alloy Gearbox for Axial 1/10 SCX10 RC Crawler Upgrades.

Key Features:

• 1. Suitable for Axial SCX10 1/10 RC crawler with 72mm skid plate, designed for LCG chassis with mounting holes for links and 3.175 motor shafts.

• 2. Made of high-quality aluminium alloy for maximum durability and next-level performance

• 3. Reinforced for added strength and rigidity, the LCG design provides improved handling.

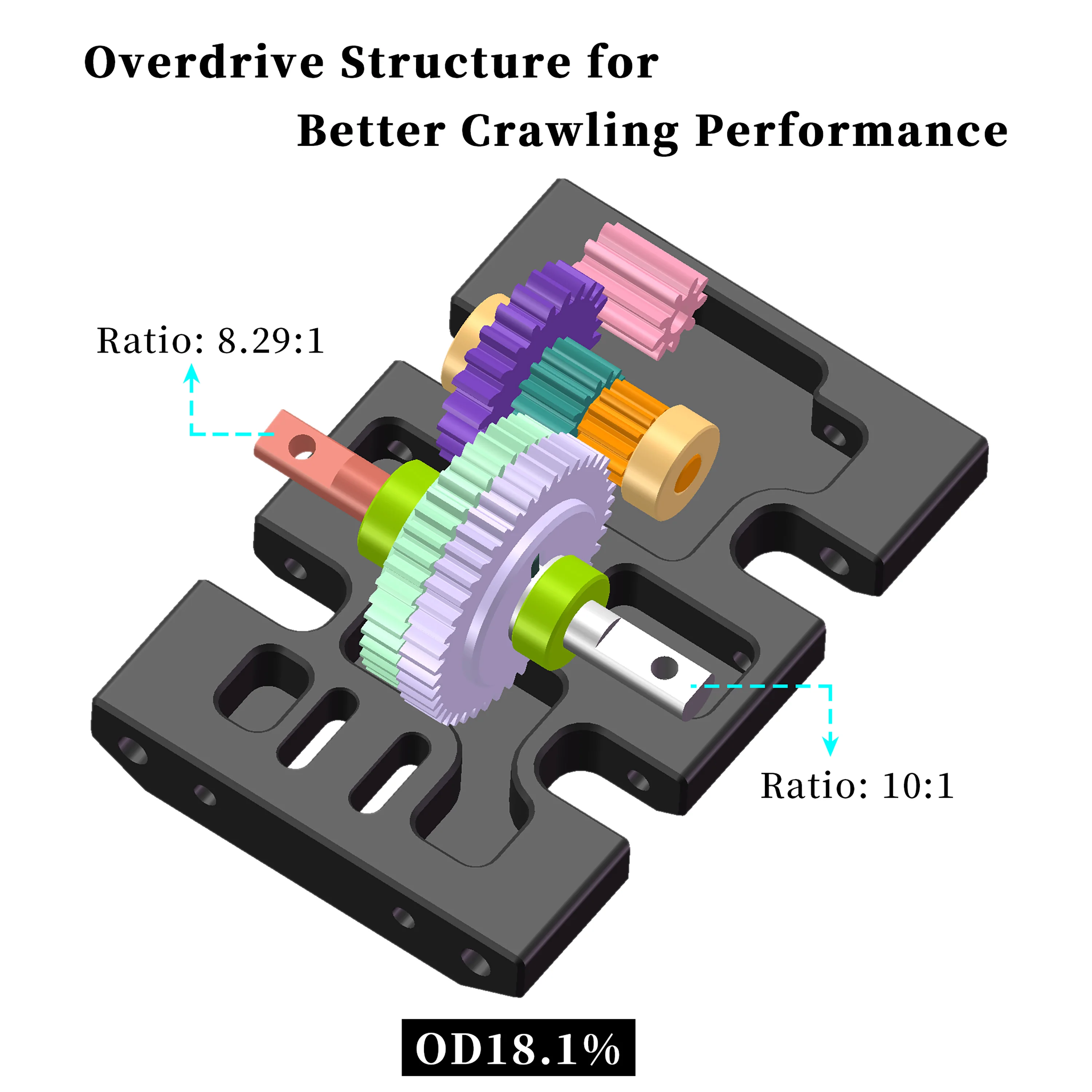

• 4. OD structure provides faster front wheel speed and slower rear wheel speed for better crawling performance.

• 5. Comes with a POM battery tray for better passability and won't easily catch on rocks.

Specifications:

• Material: Aluminum alloy
• Transmission weight (includes skid plate): 137.2g
• Pinion gear tooth: 9T, 0.8mod, height: 10mm, inner dia: 3.175mm

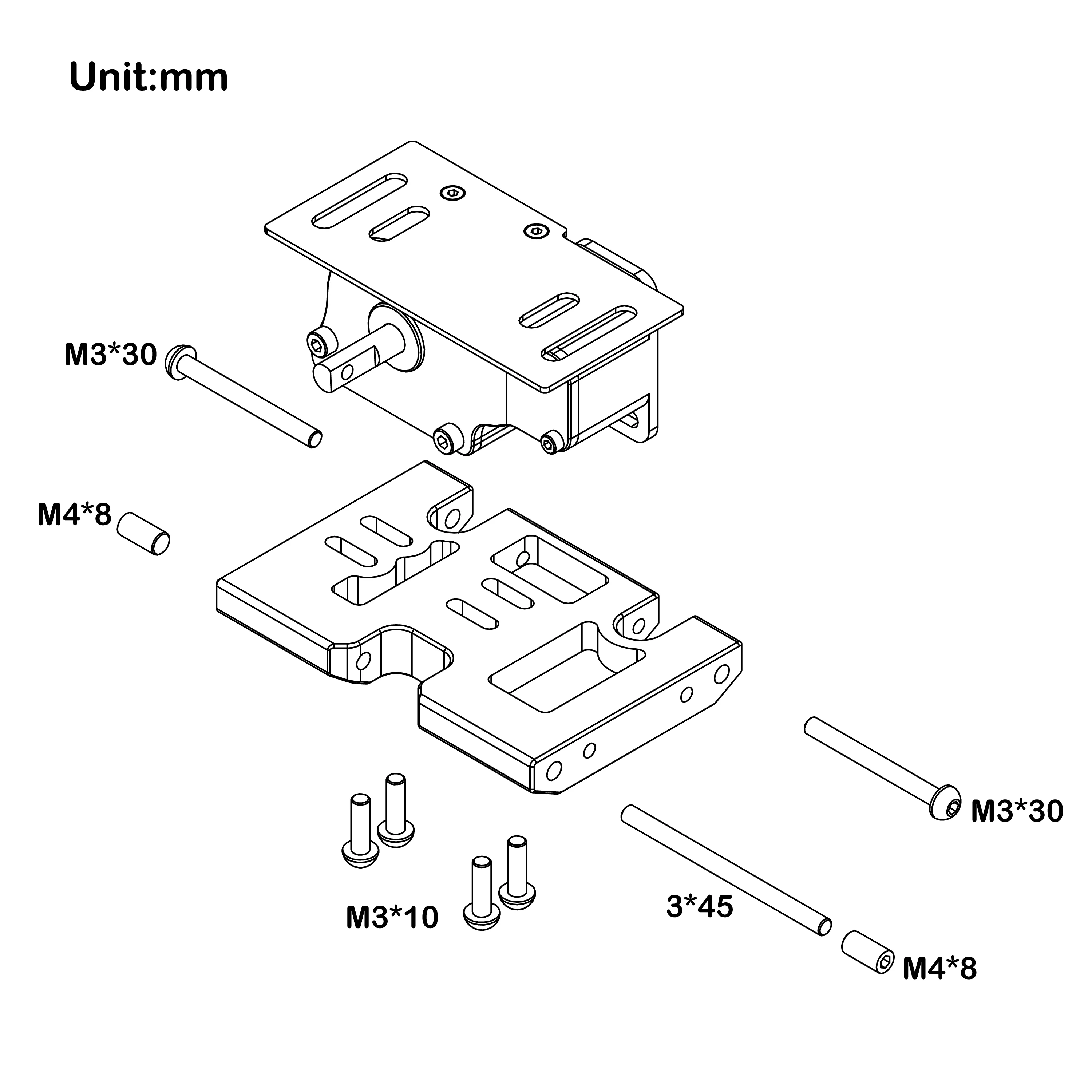

• Screw size: M3*35mm, M3*10MM
• Skid plate length: 72mm

Package List:

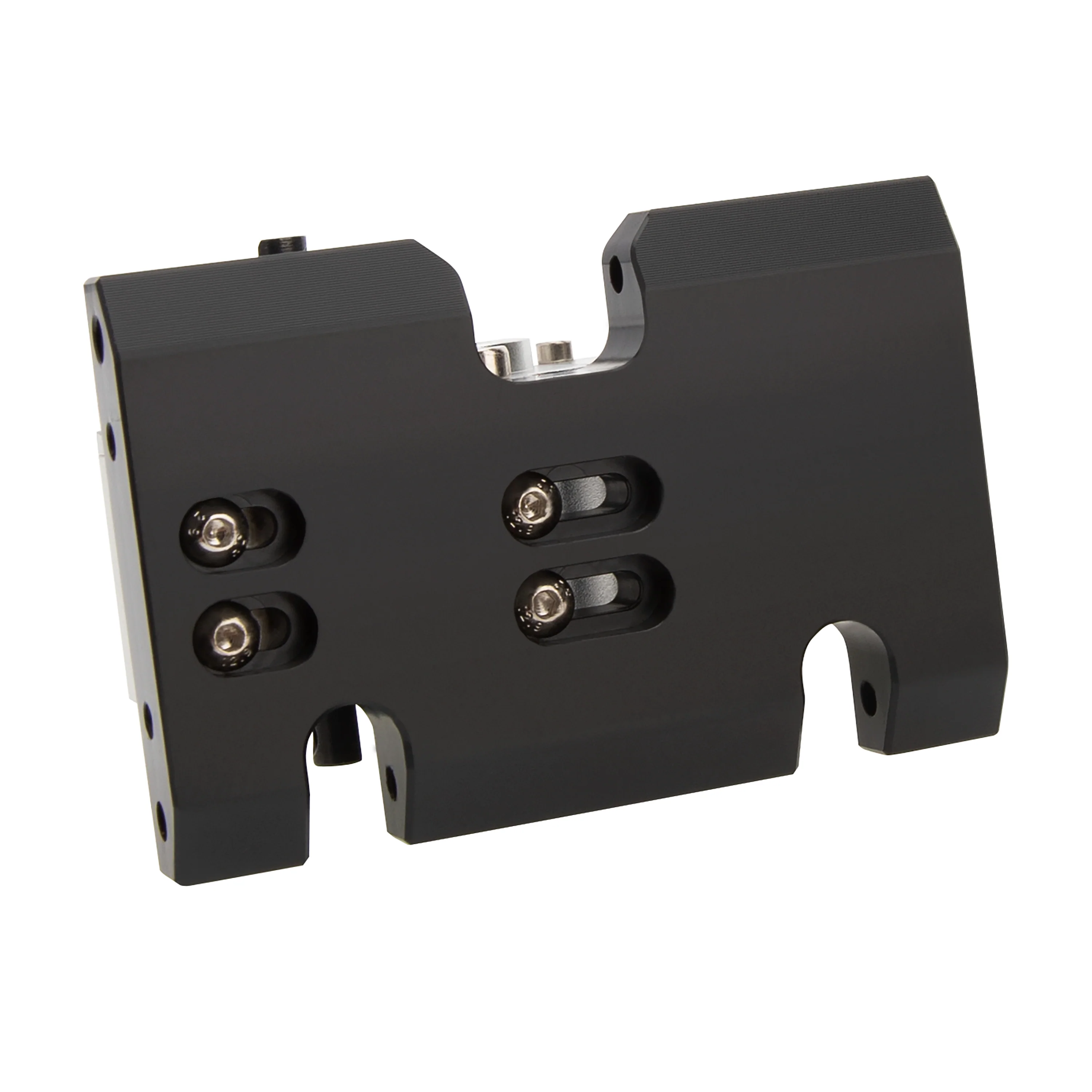

• 1 × SCX10 Overdrive LCG Transmission
• 1 × Skid plate
• 1 × Battery tray
• 1 × Battery velcro strap
• 1 × 9T pinion gear

Note:

1. This transmission doesn't work with SCX10 Pro. The length of this skid plate is 72mm, and the skid plate of SCX10 PRO is 74mm. At the same time, this reduction ratio is more suitable for the portal axle.

2. This chassis kit does not work with SCX10 III. Our LCG gearbox has a 72mm wide skid plate, while the SCX10 III has a 78mm wide skid plate. Therefore, the skid plate cannot be installed directly.
