MEUS Racing SCX24 Metal Portal Front Rear Axles Wider +6.2MM for Axial 1/24 SCX24

MEUS Racing SCX24 Metal Aluminum Alloy Portal Front Rear Axles widened by +6.2MM On Each Side for Axial 1/24 SCX24 RC Crawlers.

Key Features:

• 1. Suitable for Axial 1/24 SCX24 C10 JLU Bronco Wrangler Gladiator Deadbolt B17
• 2. Made of high-quality aluminum alloy, sturdy and durable.
• 3. Portal design has +7mm ground clearance, and portal gears provide 25% underdrive for better trafficability and stability.

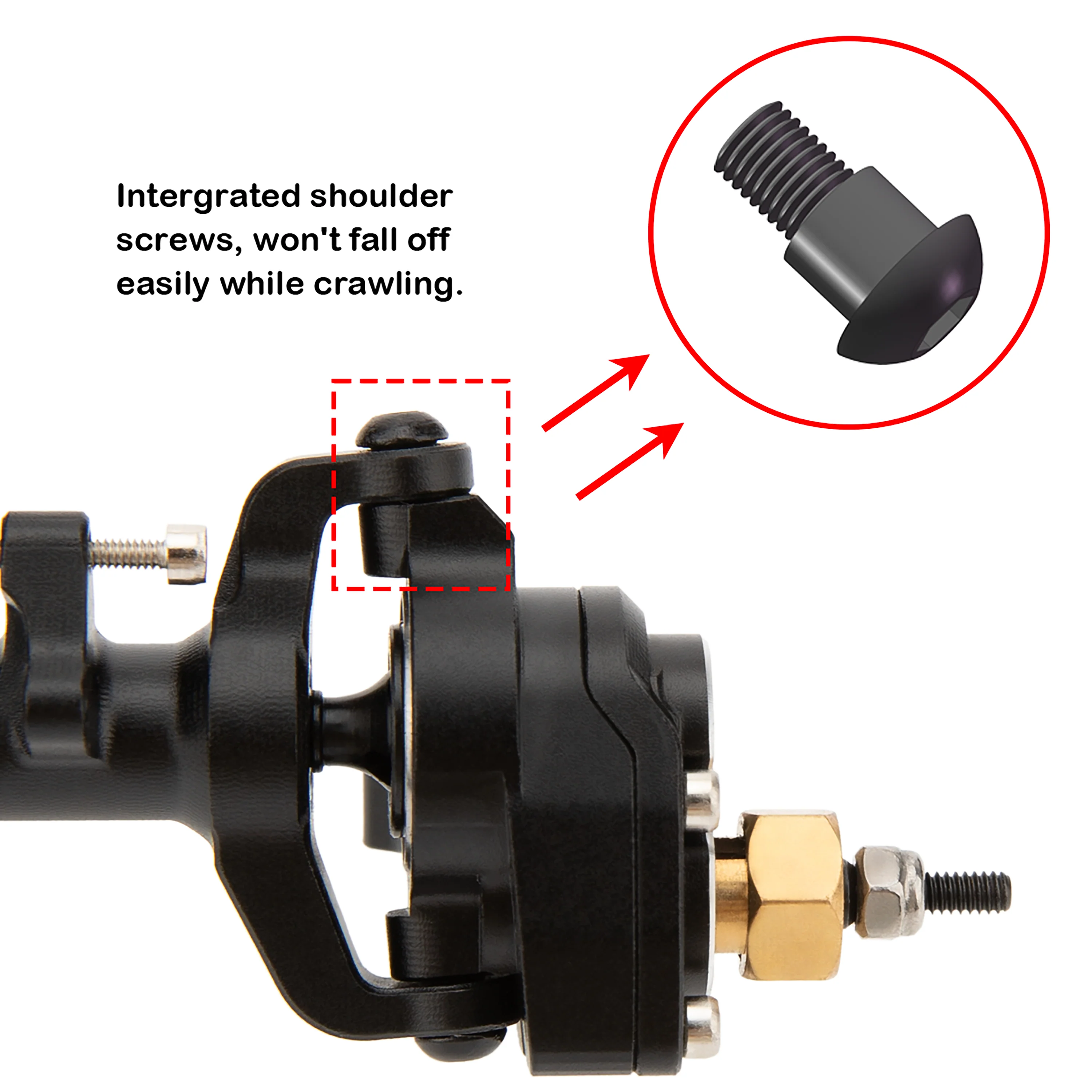

• 4. The front axle comes with a thickened CVD shaft joint, integrated shoulder screws, and greater and stable crawling performance, increasing the steering angle to 45°

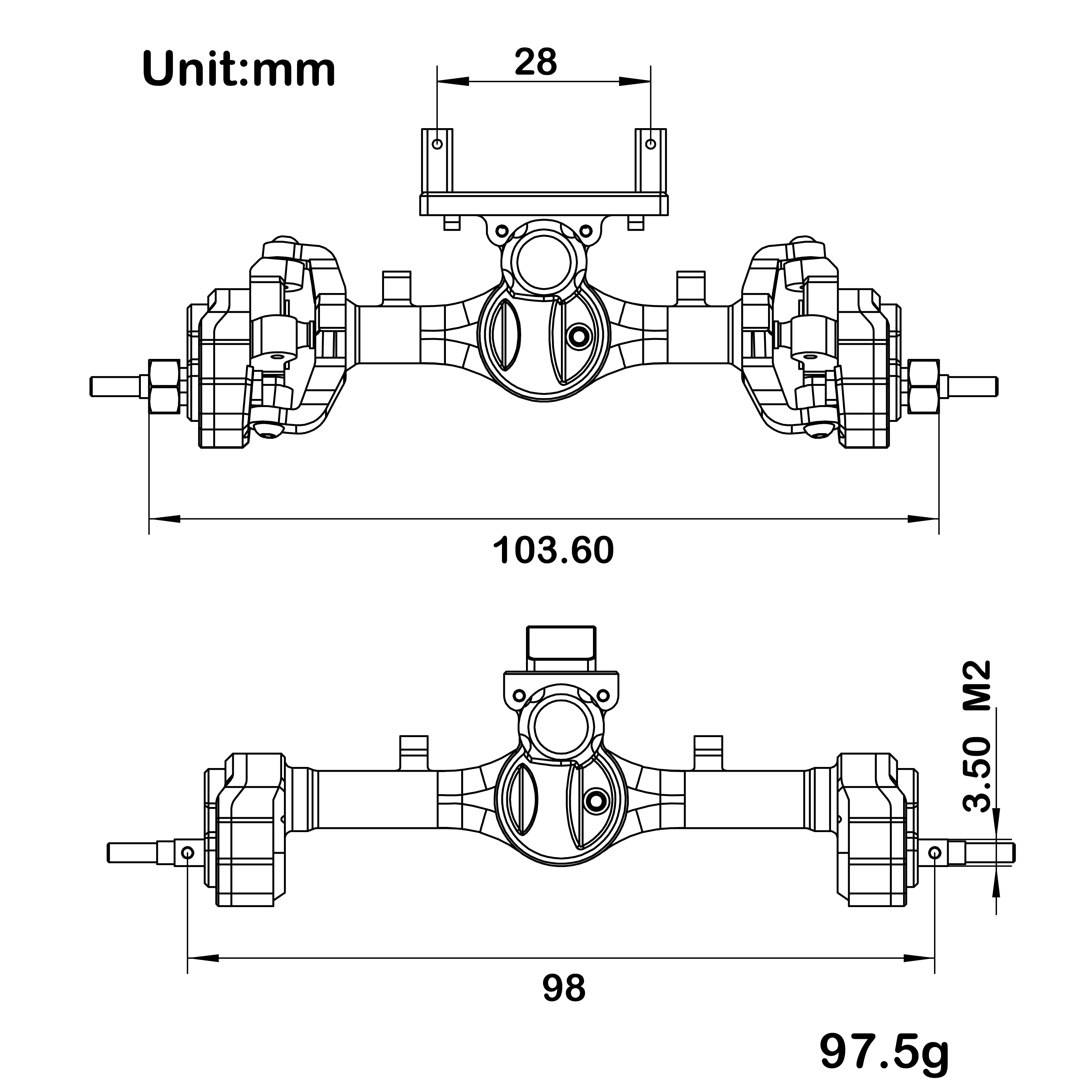

• 5. Front and rear axles are widened by 6.2mm on each side to improve stability and climbing performance; meanwhile, the extended axles can prevent the dogbone from overloading.

Specifications:

• Axle housing material: Aluminum alloy
• Steering knuckle material: Aluminum alloy
• Diff cover material: Aluminum alloy
• Front and rear axle diff gears: 2-14T(both are normal gears)
• Front axle weight: 49.1g(includes servo mount)
• Rear axle weight: 43.1g

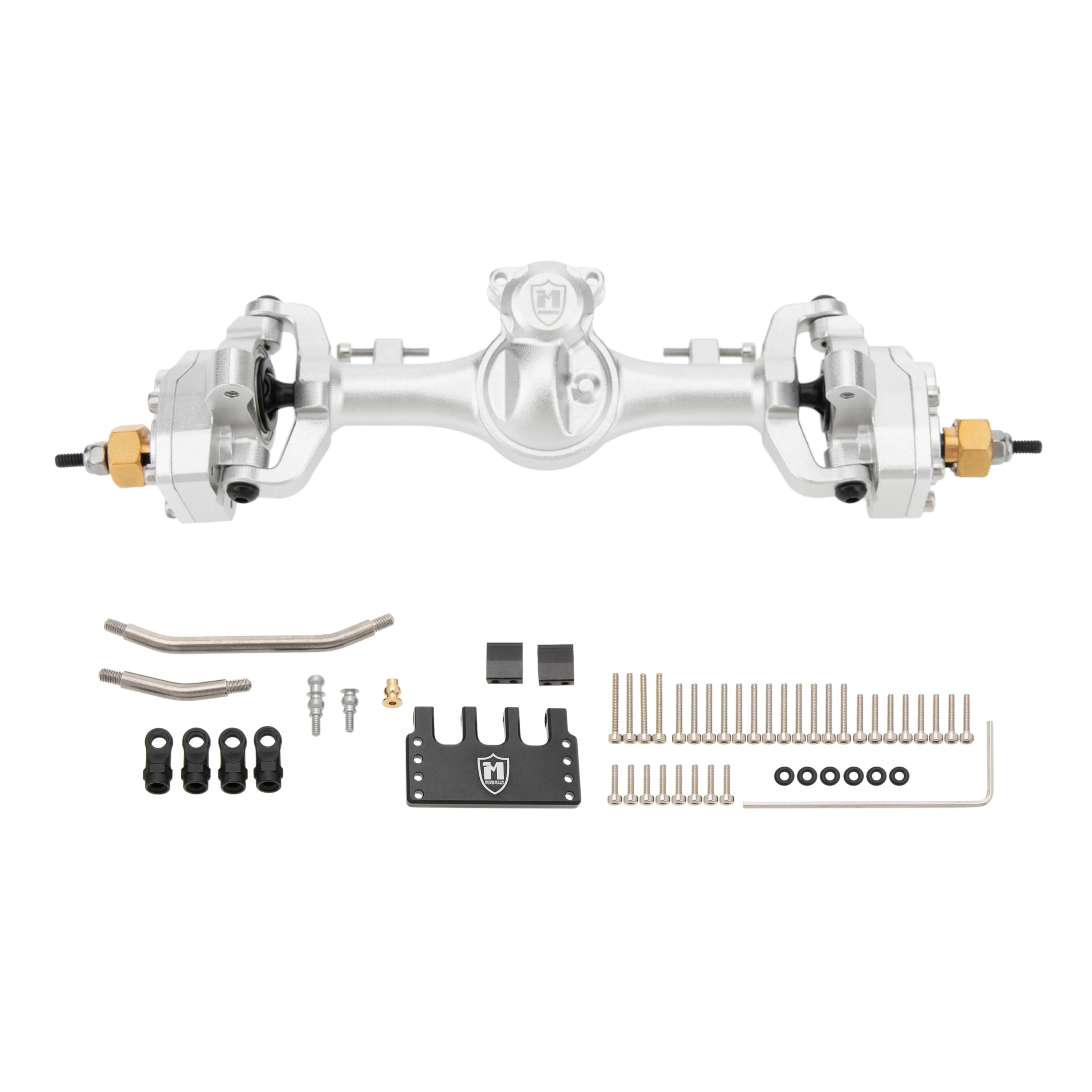

Package List:

• 1 × SCX24 Metal portal front axle
• 1 × SCX24 Metal portal rear axle
• 2 × Steering links
• 1 × 2-16T diff gear

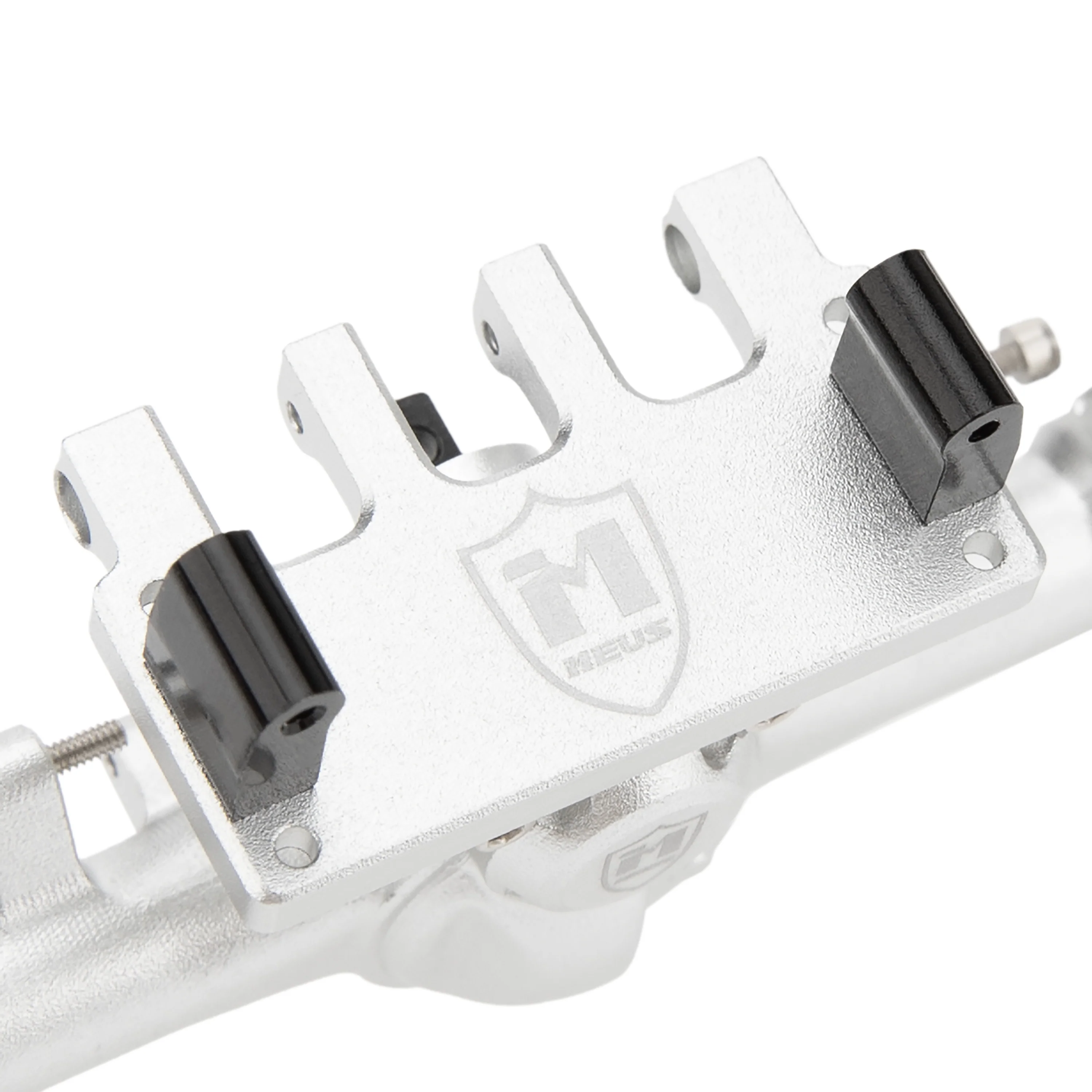

• 1 × Servo mount
• 1 × Screws set
