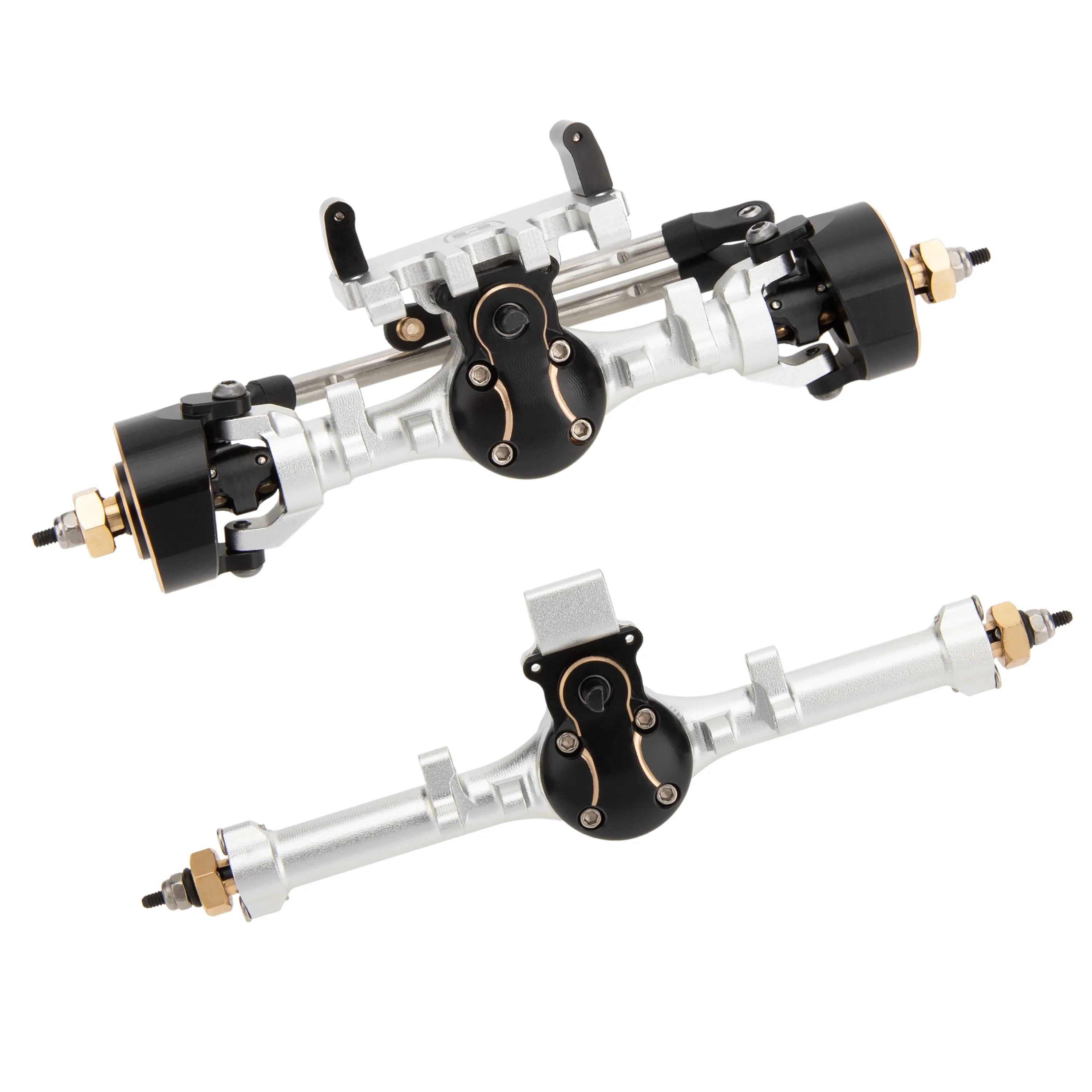

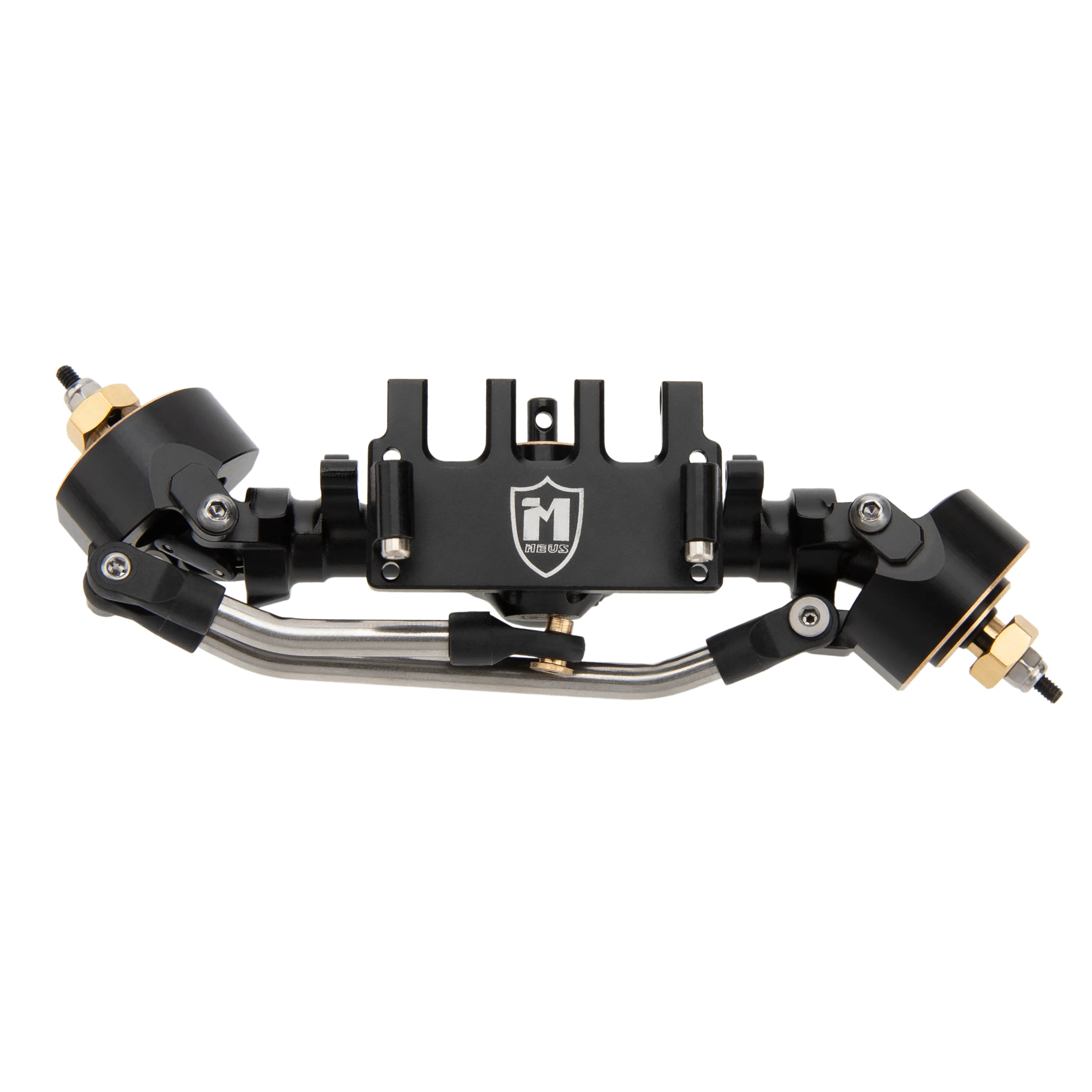

MEUS Racing SCX24 Metal V2 Isokinetic Front Rear Axles & Servo +5MM 3-Section CVD With 52° Steering Angle for 1/24 SCX24

MEUS Racing SCX24 Metal V2 Isokinetic Front Rear Axles and Servo Set +5MM Isokinetic 3-Section CVD With 52° Steering Angle for 1/24 SCX24

Key Features

• 1. V2 upgraded version of MEUS Racing SCX24 Isokinetic axles, suitable for Axial 1/24 RC crawler, Axial SCX24 Deadbolt C10 JLU Gladiator Bronco.

• 2. The spherical design differential shell and axle housing are made of aluminum alloy with an anodized surface. The front axle weighs 83g, and the rear axle weighs 32g.

• 3. The front and rear axles are +5mm wider on both sides, with a 10° kingpin inclination angle, and feature Ackerman steering. The rear axle adds an integrated rear riser truss.
• 4. Comes with brass steering knuckles and diff cover to increase the weight on the front axle to improve traction, climbing ability, and steering response.

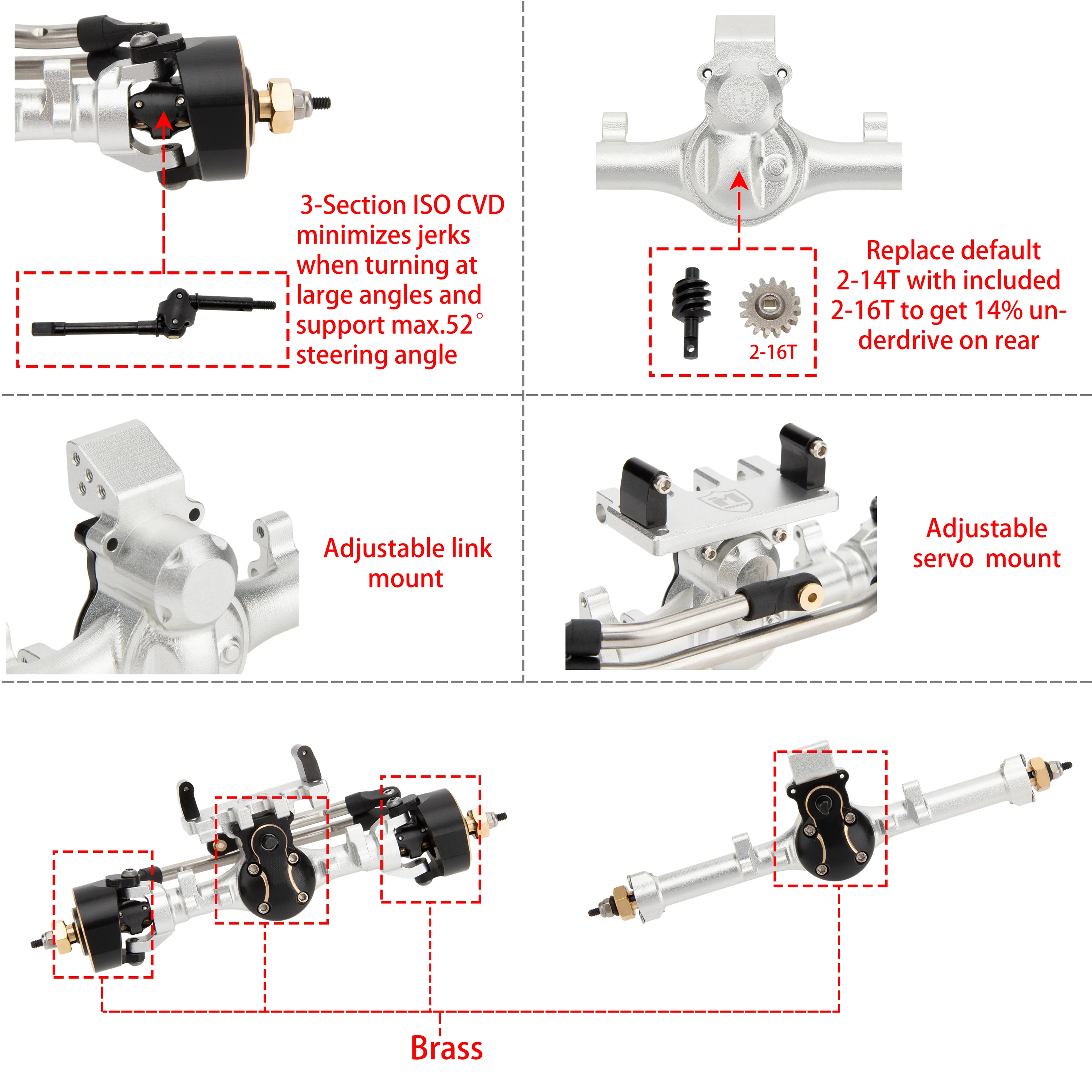

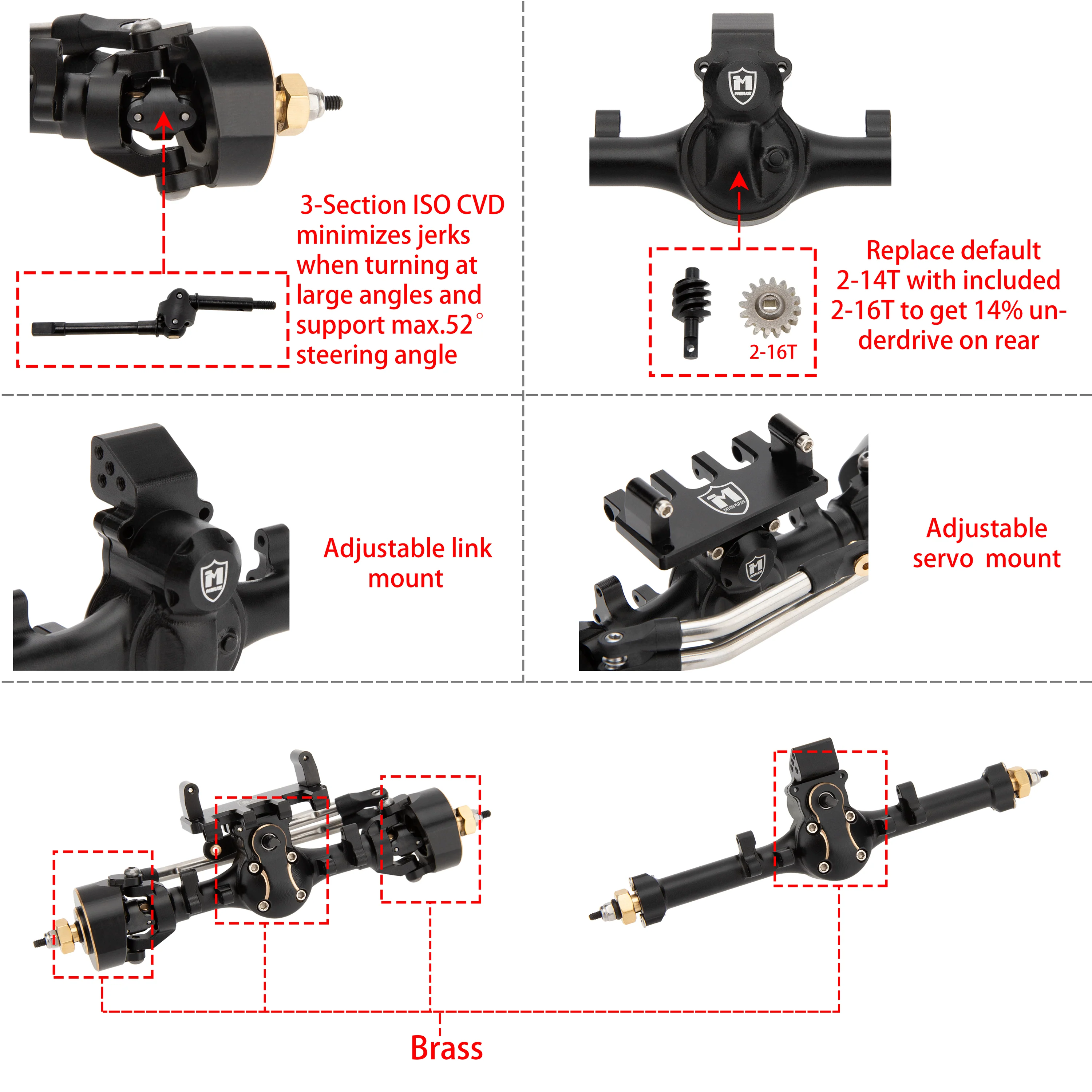

• 5. US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD effectively minimizes the jerks when turning at large angles and supports a max.52° steering angle.

• 6. Front axle equipped with customized thickened 2-14T gears, and the rear axle equipped with a conventional 2-14T gear.

• 7. The rear axle comes with 2-16T gears to get underdrive to increase front wheel speed and prevent the buggy from rolling over when climbing.

• 8. If you want the front wheels to overdrive, please change the differential gear of the front axle to our customized thickened 2-12T.

The Differences Between SCX24 Metal ISO V1 and V2

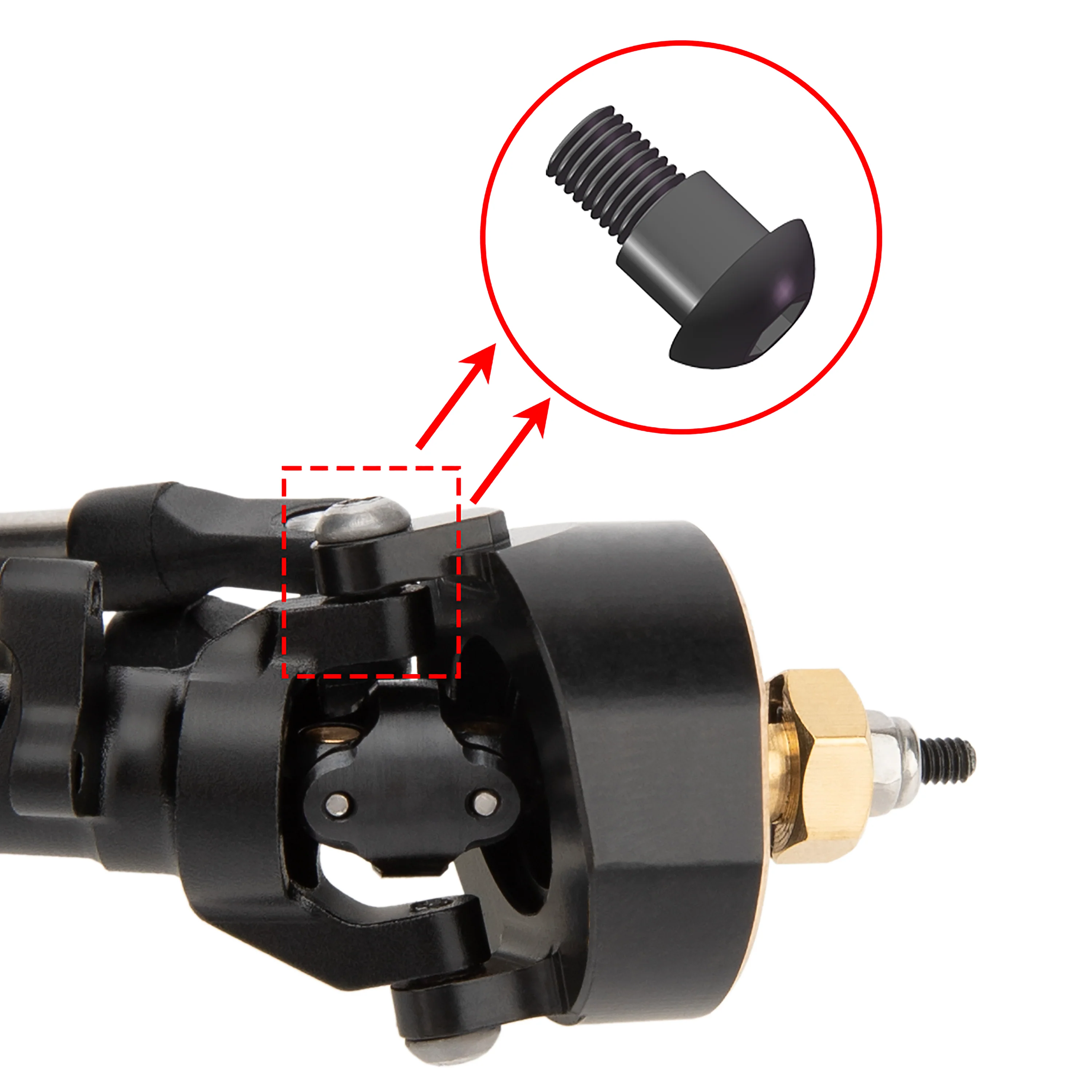

(1) Shoulder screws on steering knuckles to provide better fixation, won't easily fall off. Steering knuckles are not compatible with the V1 version.

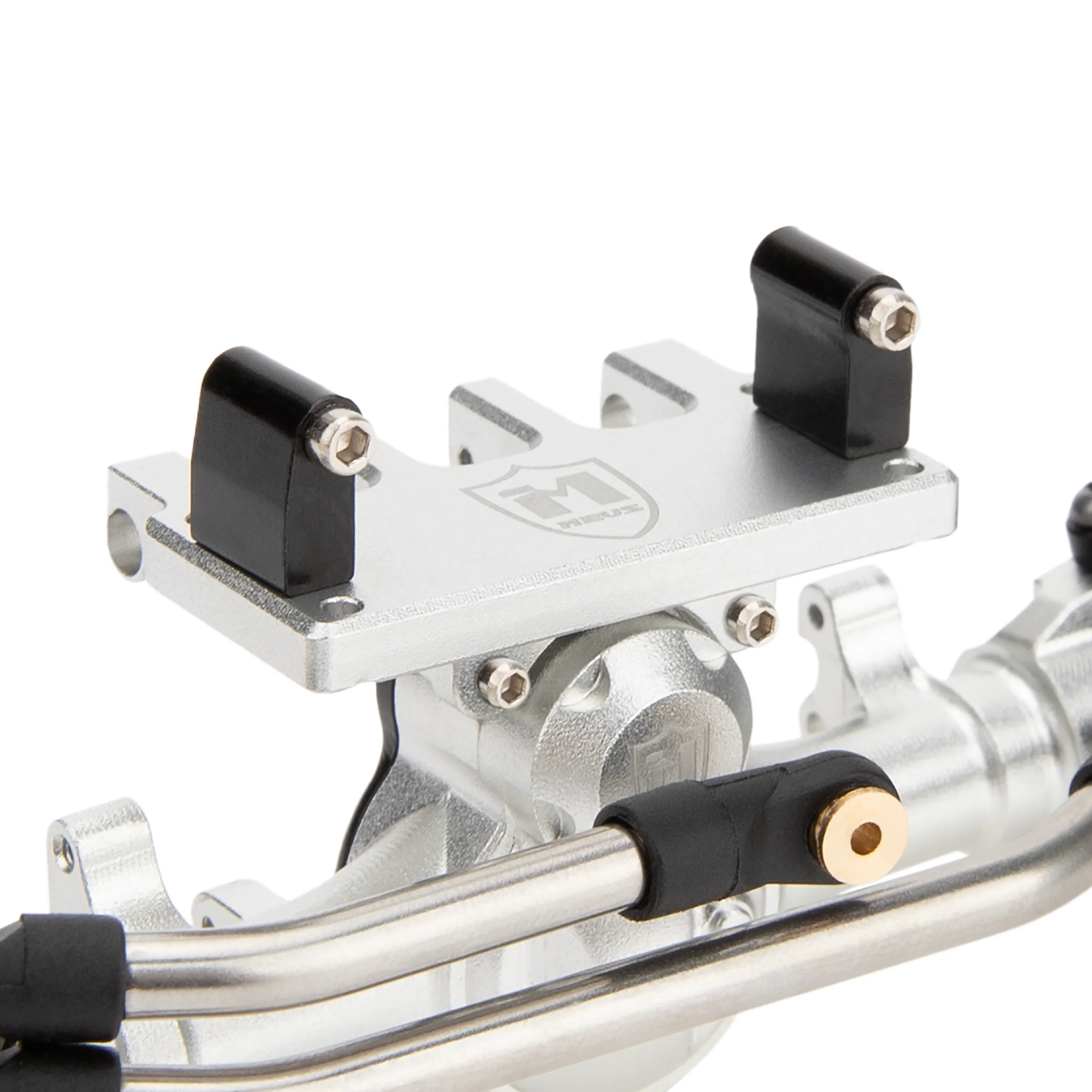

(2) Servo mounts are not compatible with the V1 version. The V2 is used to the original factory mounting hole data.

(3) Steering linkages and CVDs are compatible with both V1 and V2.

Specifications:

• Axle housing material: Aluminum alloy
• Front axle weight: 83g(Including the servo mount and steering links)
• Only front axle weight: 70g
• Rear axle weight: 32g

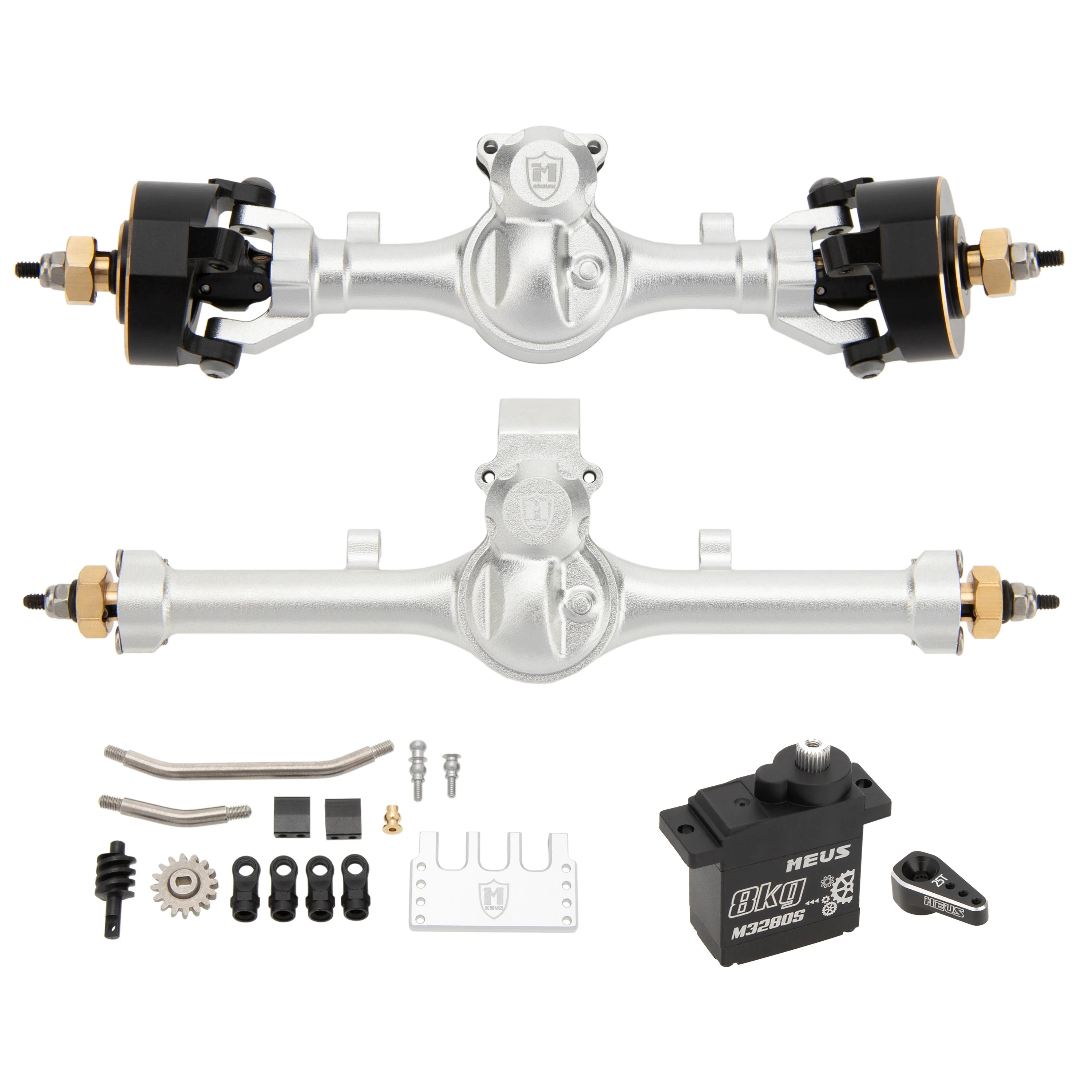

Package List:

• 1 × SCX24 Metal Isokinetic front axle

• 1 × SCX24 Metal rear axle
• 1 × 8kg servo
• 1 × 25T Servo horn
• 1 × Steering Links
• 1 × 2-16T rear axle underdrive diff gear
• 1 × Servo Mount

• 1 × Screws set and screw tool
• 1 × Rubber O-rings
