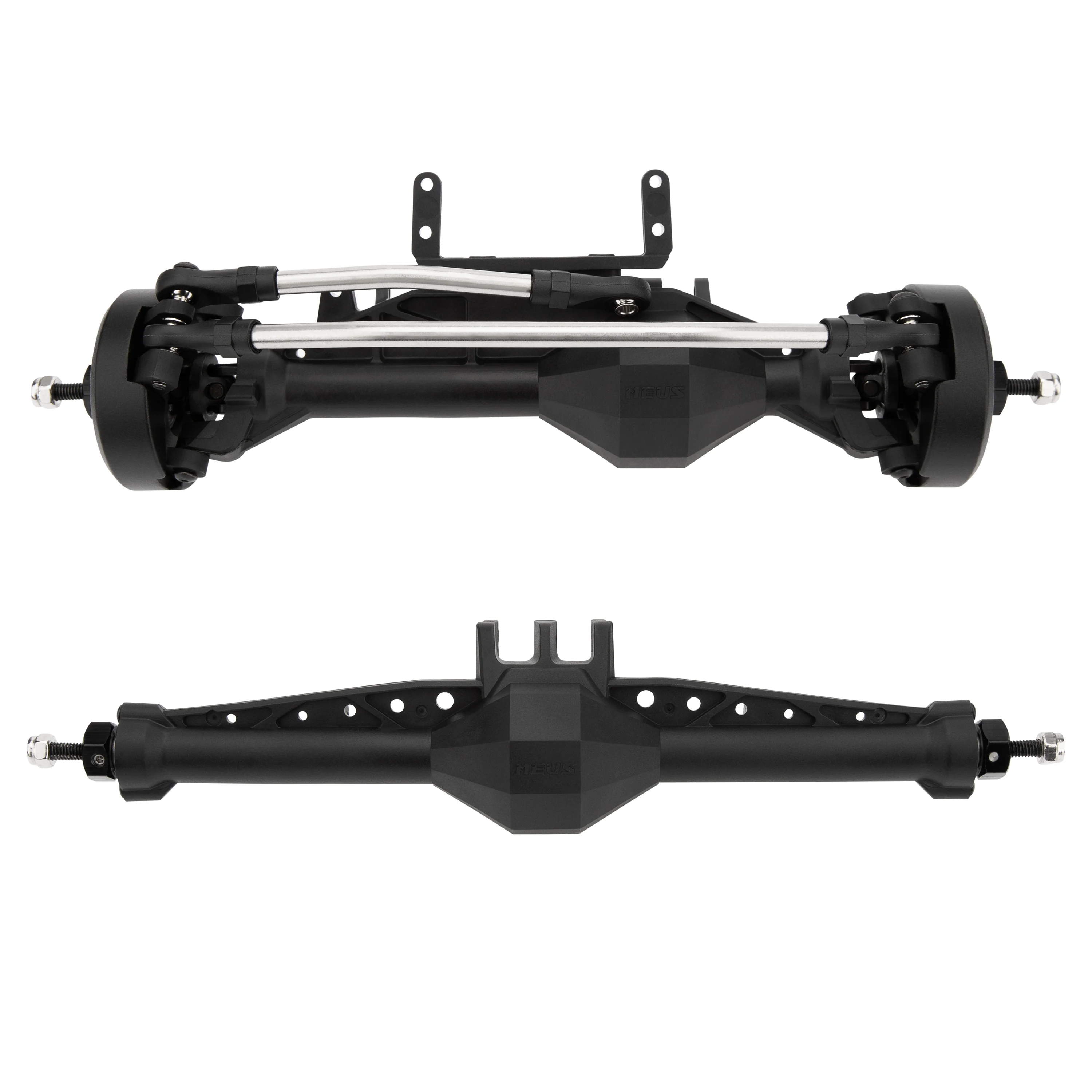

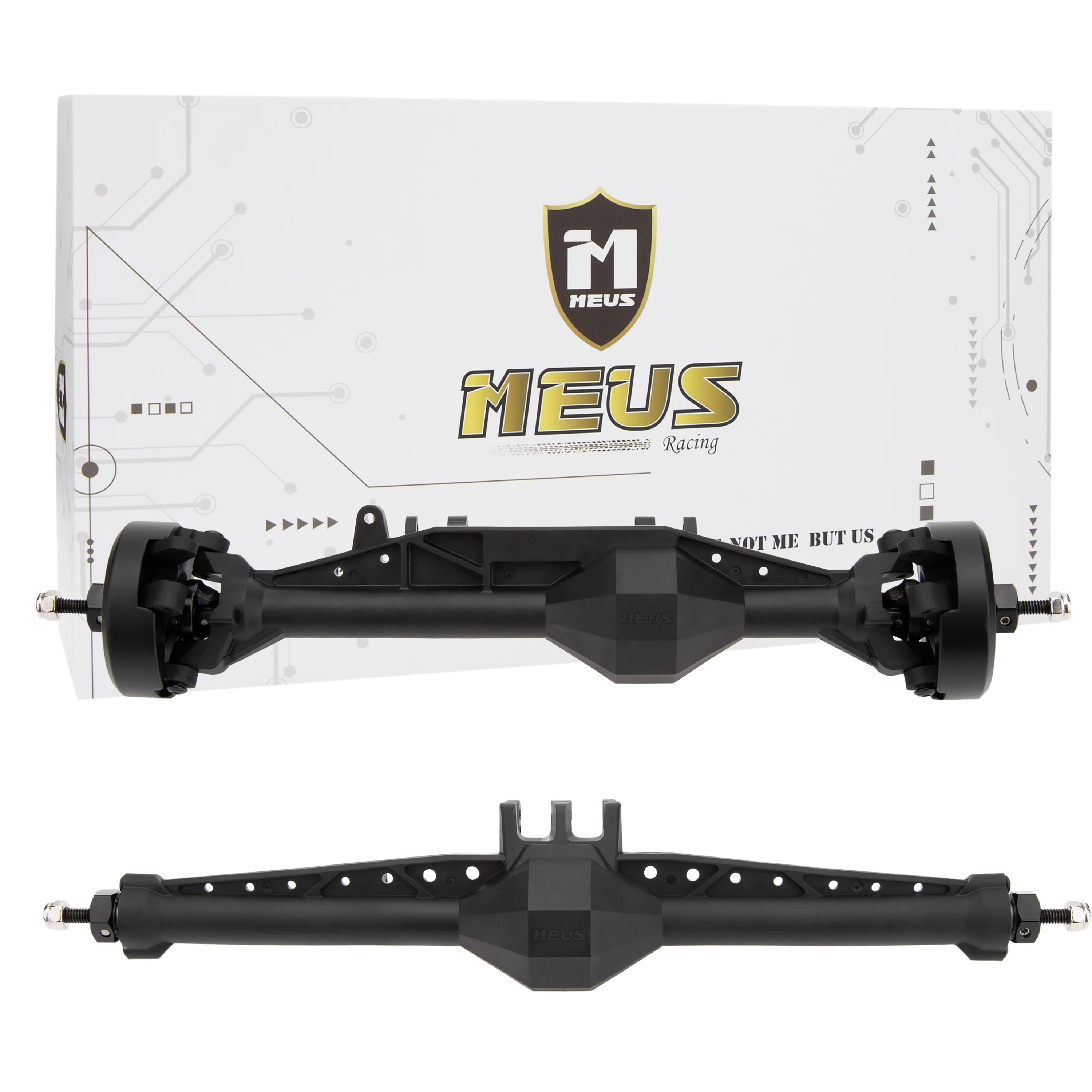

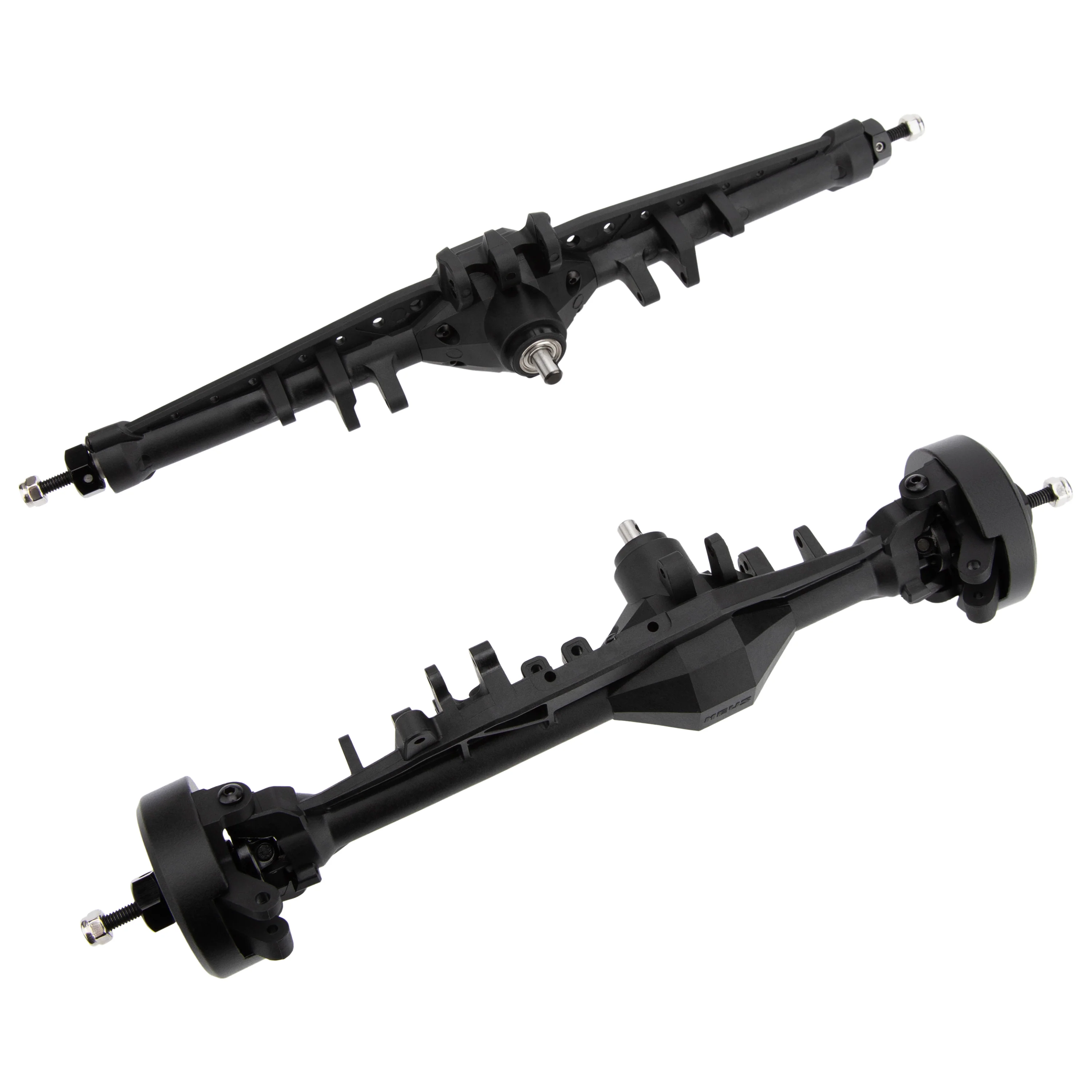

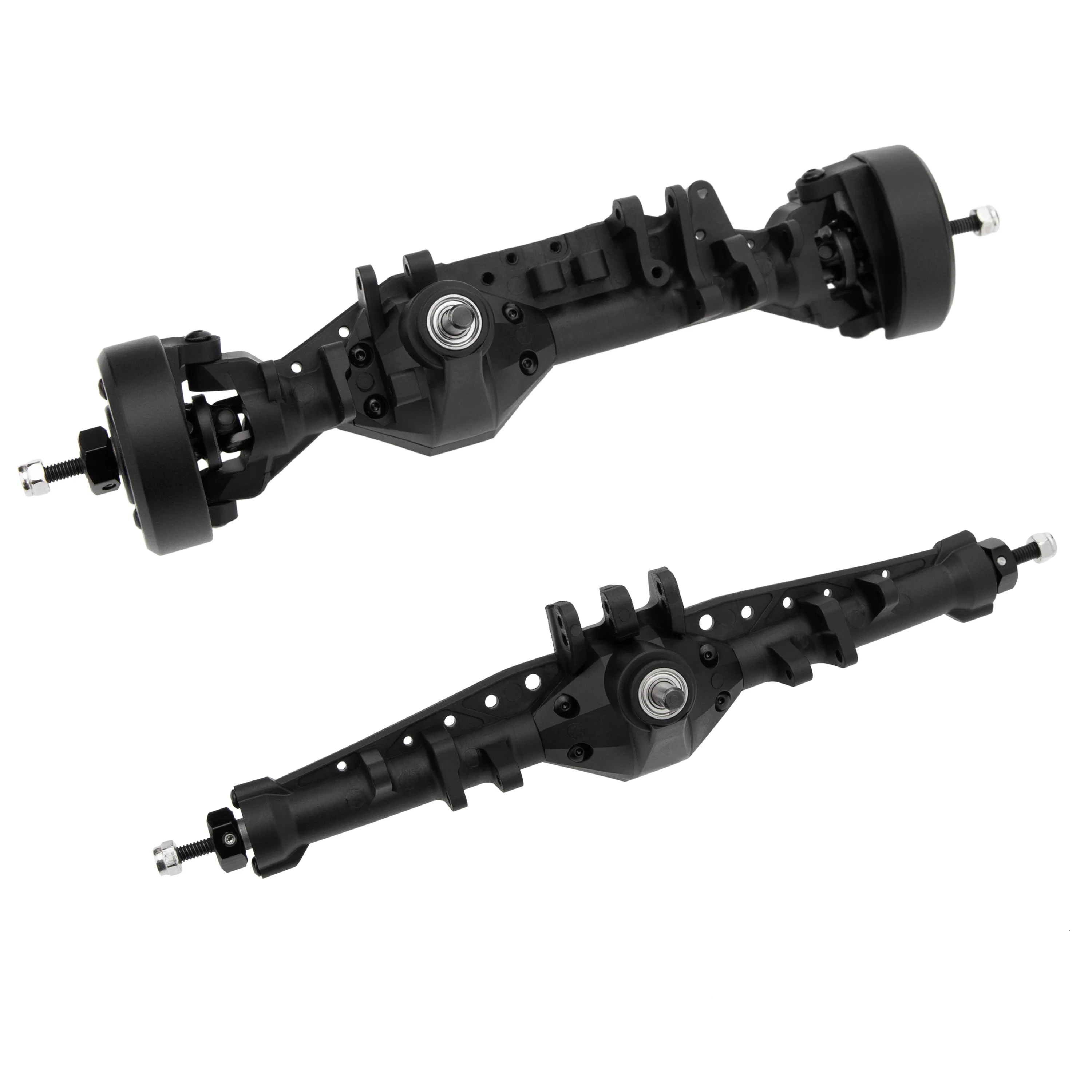

MEUS Racing 1/10 Nylon Isokinetic Straight Axle with Front Axle Counterweight for Axial 1/10 Capra 1.9 UTB AR44 and Other DIY RC Crawlers

MEUS RACING 1/10 Nylon Isokinetic Straight Axles with Front Axle Counterweight for Axial Capra II SCX10 II and Other DIY 1/10 RC Crawler.

Key Features:

• 1. MEUS RACING 1/10 Nylon Isokinetic Straight Axles with Front Axle Counterweight for Axial Capra 1.9 UTB, AR44, AR45 SCX10 II, and Other DIY 1/10 RC Crawler.

• 2. Made of high-quality nylon and fiber material via high-precision mold injection, exquisite frosted surface, comes with metal gears and bearings.

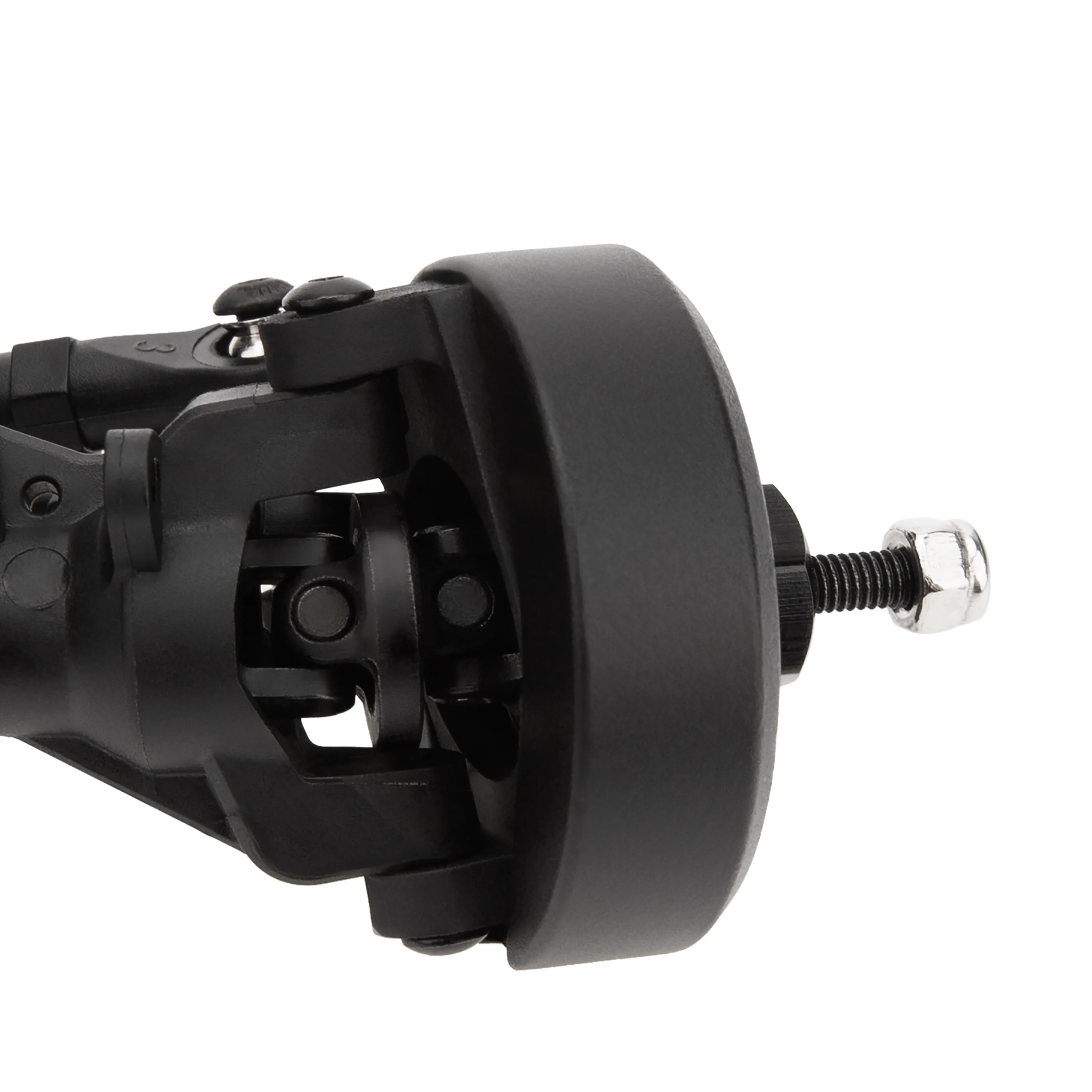

• 3. Thickened 3-section ISO CVD, max. 52° steering angle, 6mm thickened output shaft.

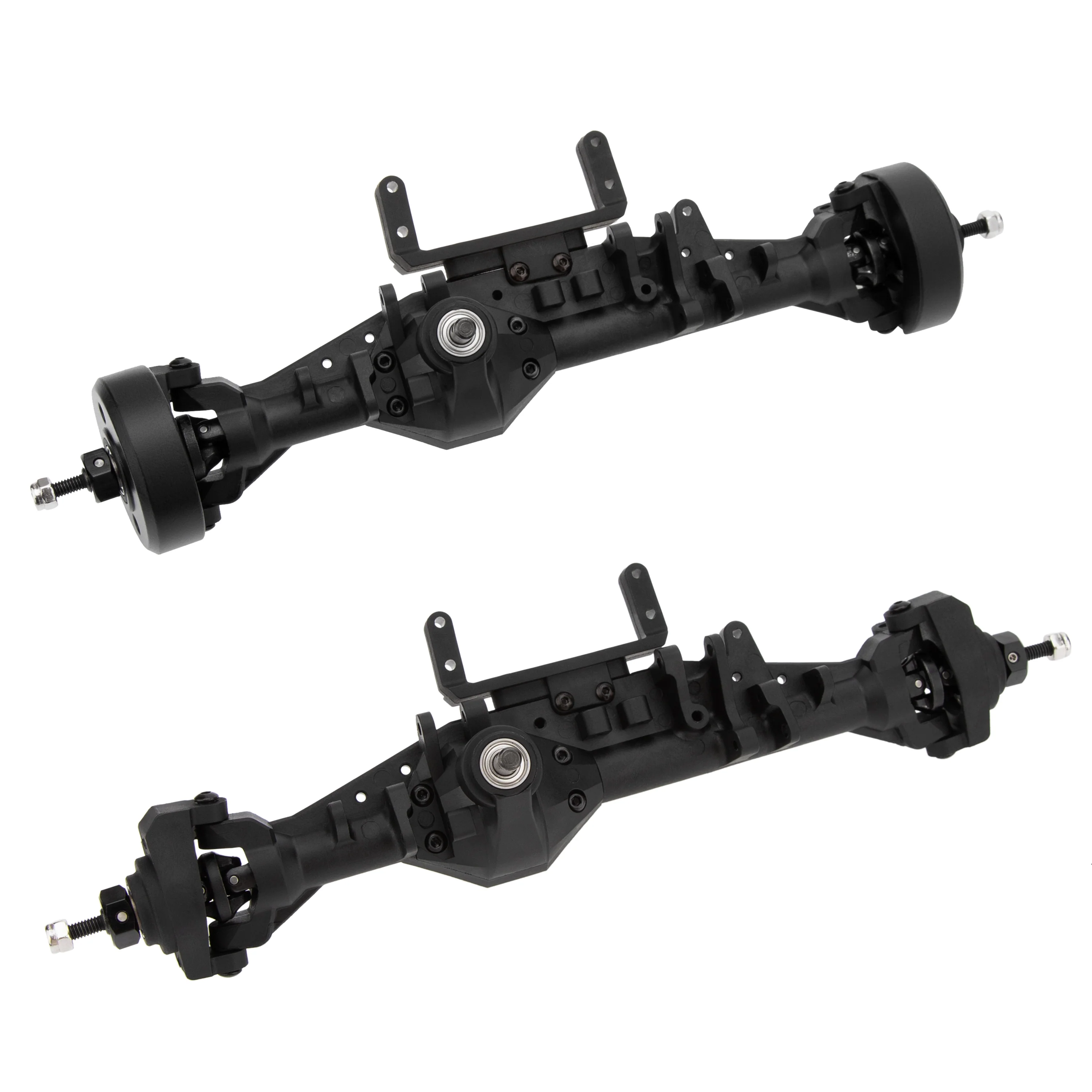

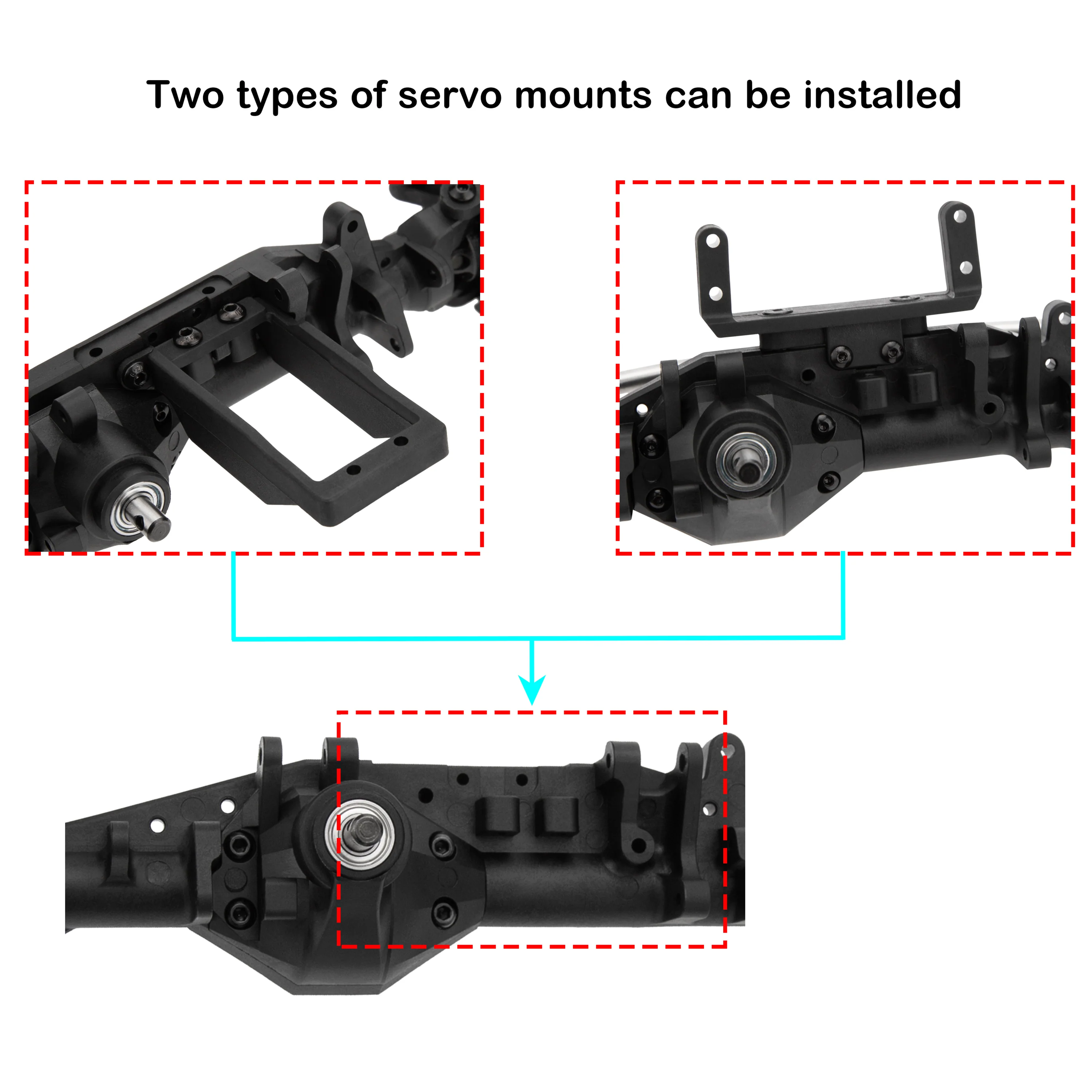

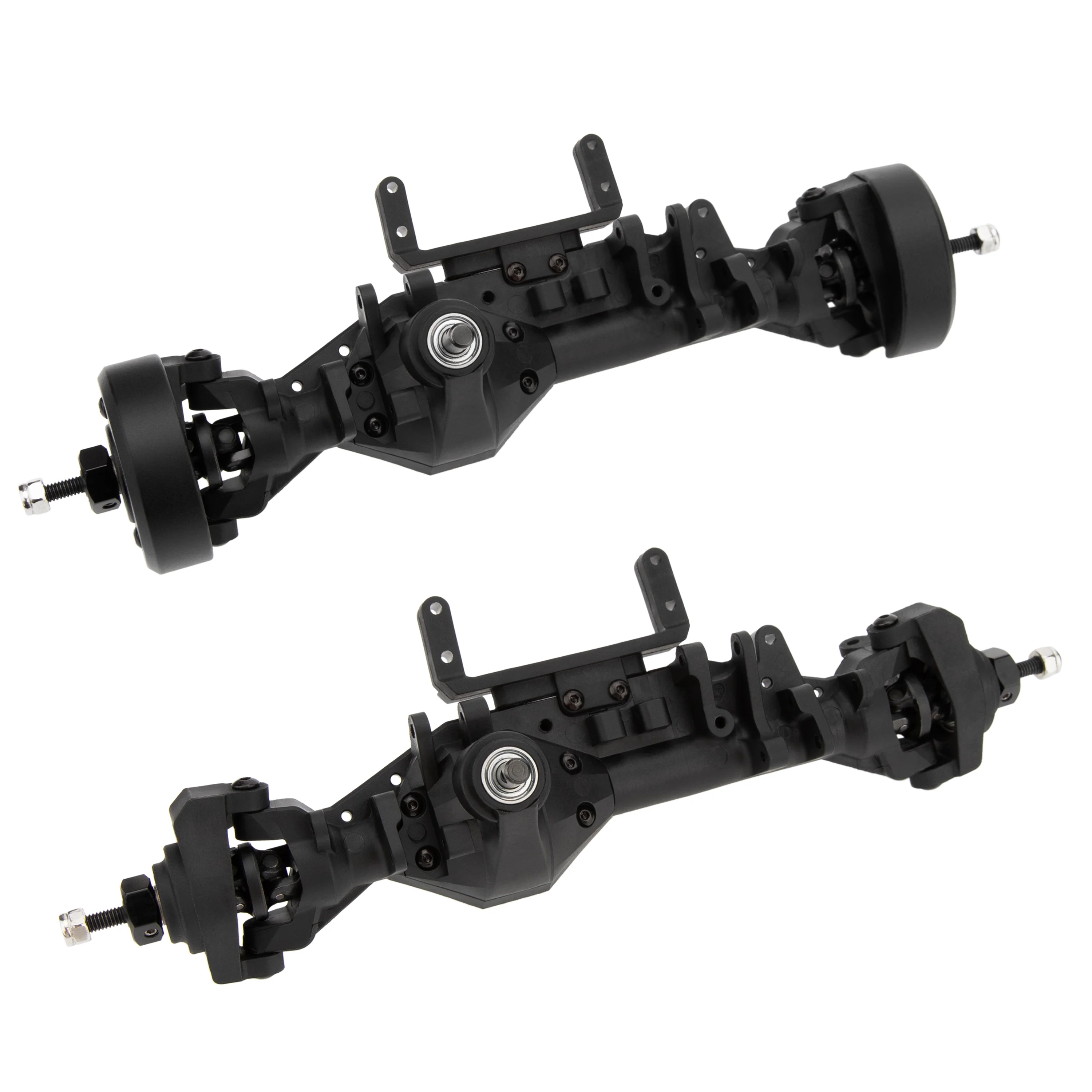

• 4. Featuring SOA(Servo On Axle) and BTA(Behind The Axle) servo mounting options, allowing non-destructive transition from one to the other according to your need.

•  5. Front axle is equipped with a 70-gram metal counterweight for a heavier front of your crawler for better performance.

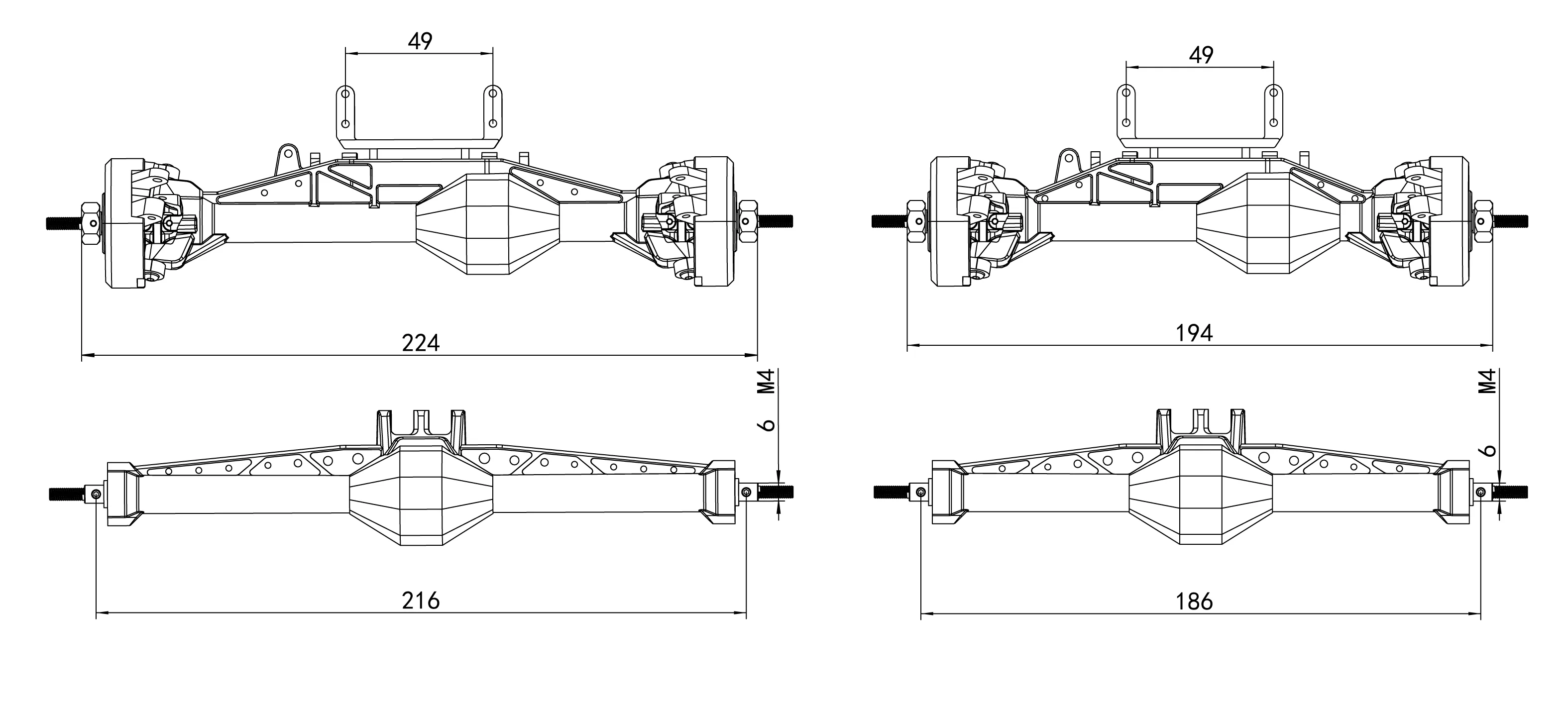

Two wheel distances available:

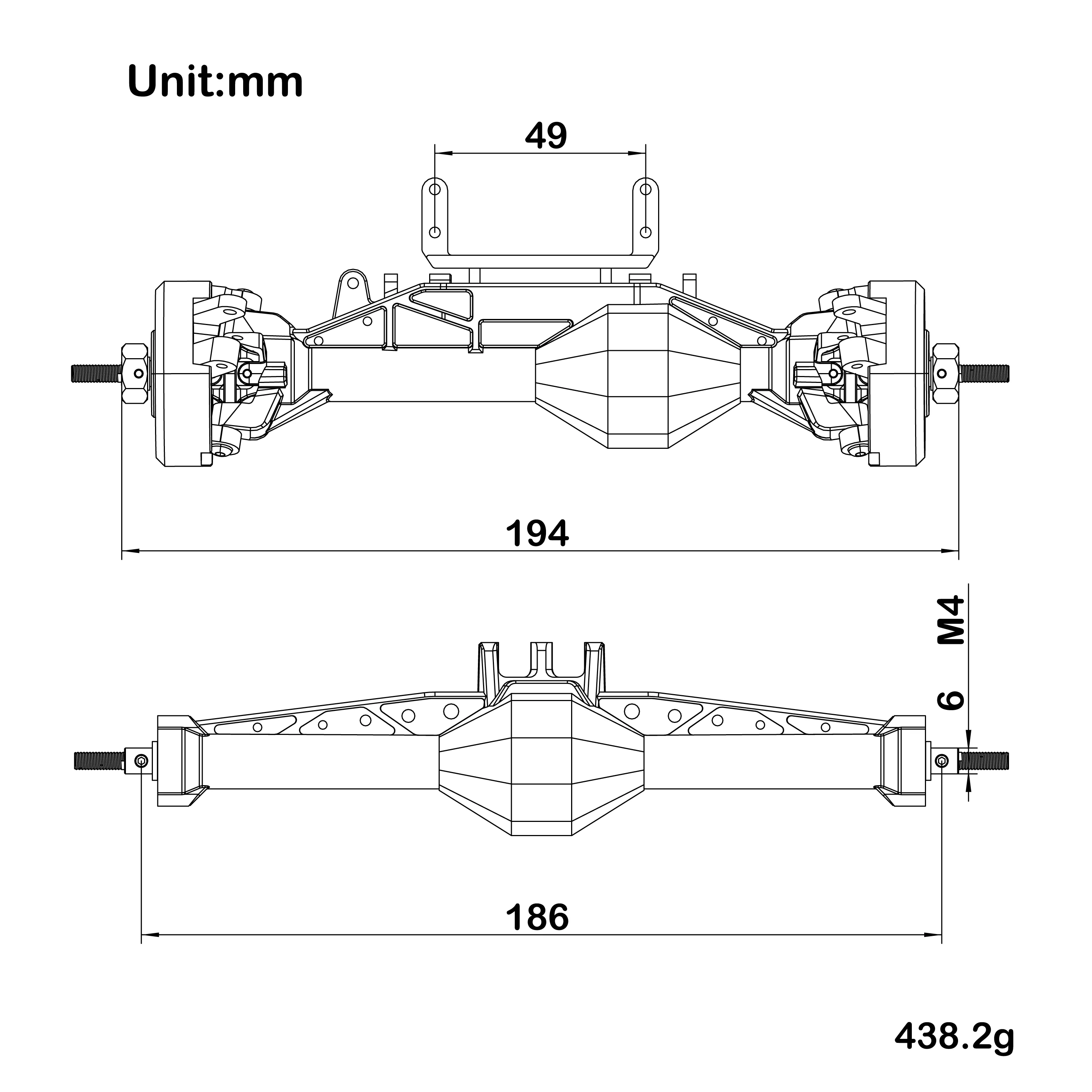

• (1) AR44/AR45 wheel distances (194mm from hex to hex);

• (2) Capra 1.9 UTB wheel distances(224mm from hex to hex).

Specifications:

• Axle housing and servo mount material: Nylon
• Steering knuckle material: nylon
• Steering knuckle weight cover: Brass
• AR44/AR45 front axle weight: 313.7g (not including steering links)

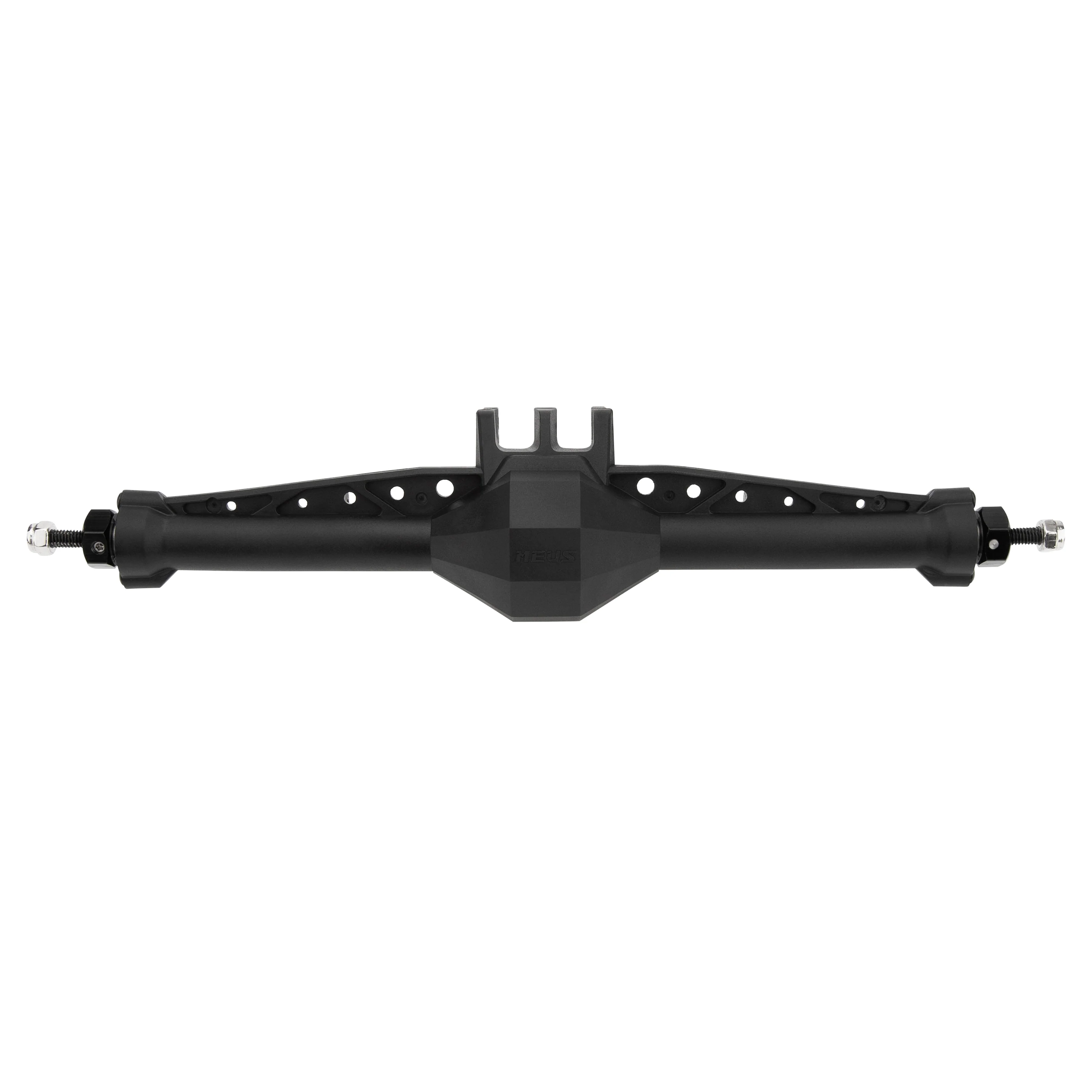

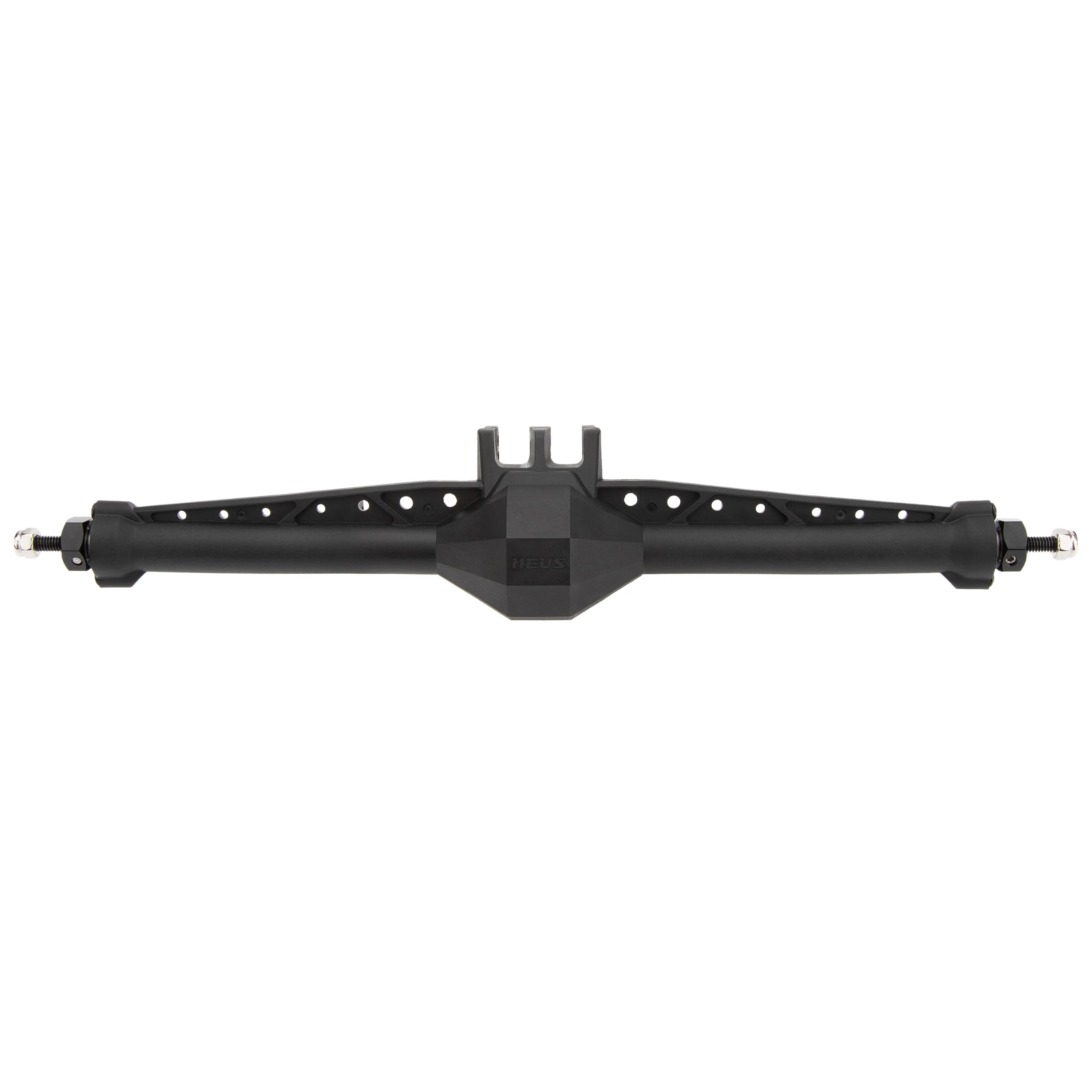

• AR44/AR45 Rear axle weight: 124.8g
• Capra front axle weight: 318.8g (not including steering links)
• Capra rear axle weight: 127.8g

Note:

If you want to combine the AR44 194mm wheelbase front axle and the SCX10 nylon rear portal axle into a mullet setup, you need to thicken the hexagonal connectors of the AR44 axles.

The wheelbase of the SCX10 nylon rear axle is 200mm, and the AR44 axle wheelbase is 194mm。 The wheelbase difference is 6mm.

Since the wheelbase difference between the two axles is 6mm, you need to increase the thickness of the AR44 hexagonal connectors to 8mm or 9mm.

The AR44 front axle diff gear will need to be changed to reverse 8-30T.

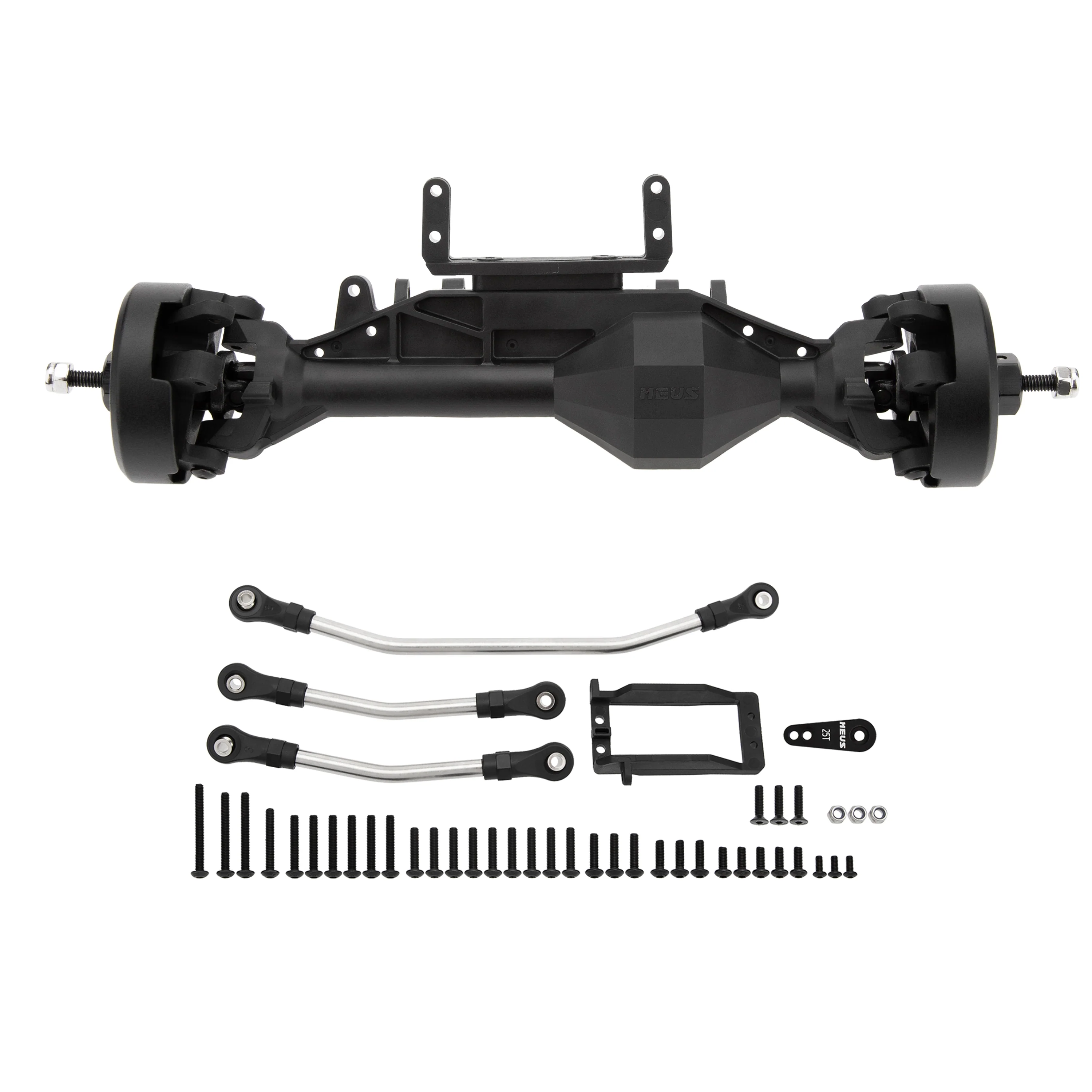

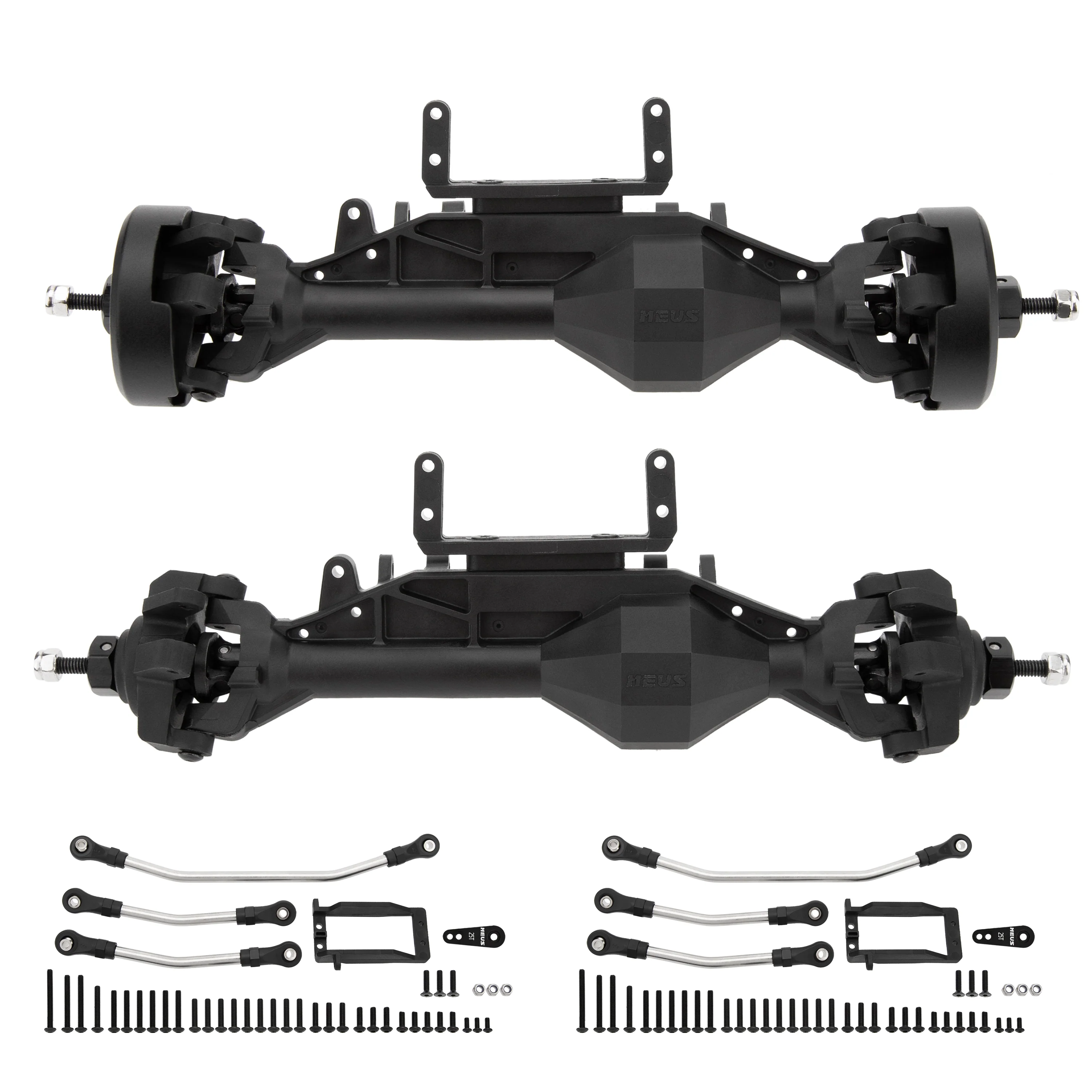

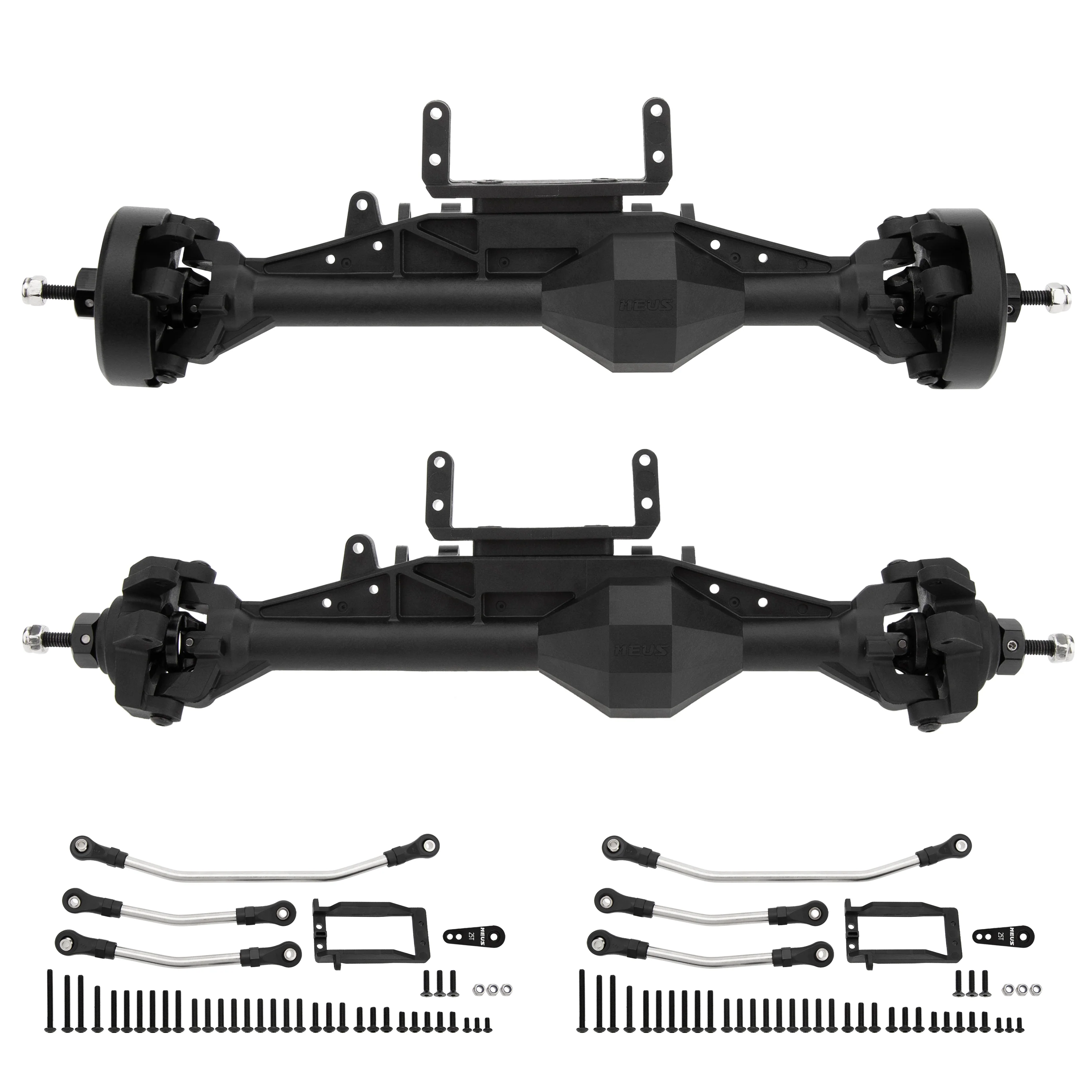

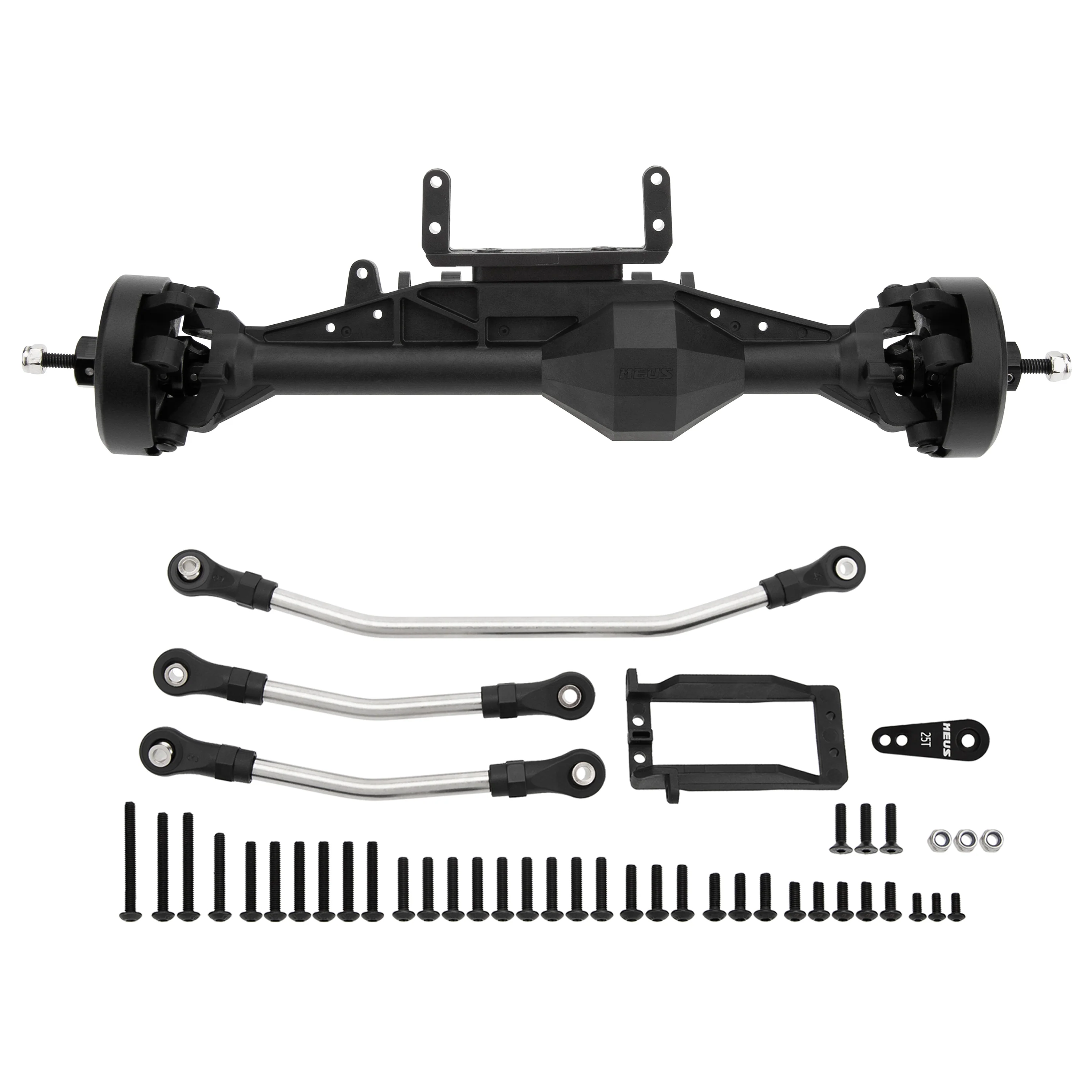

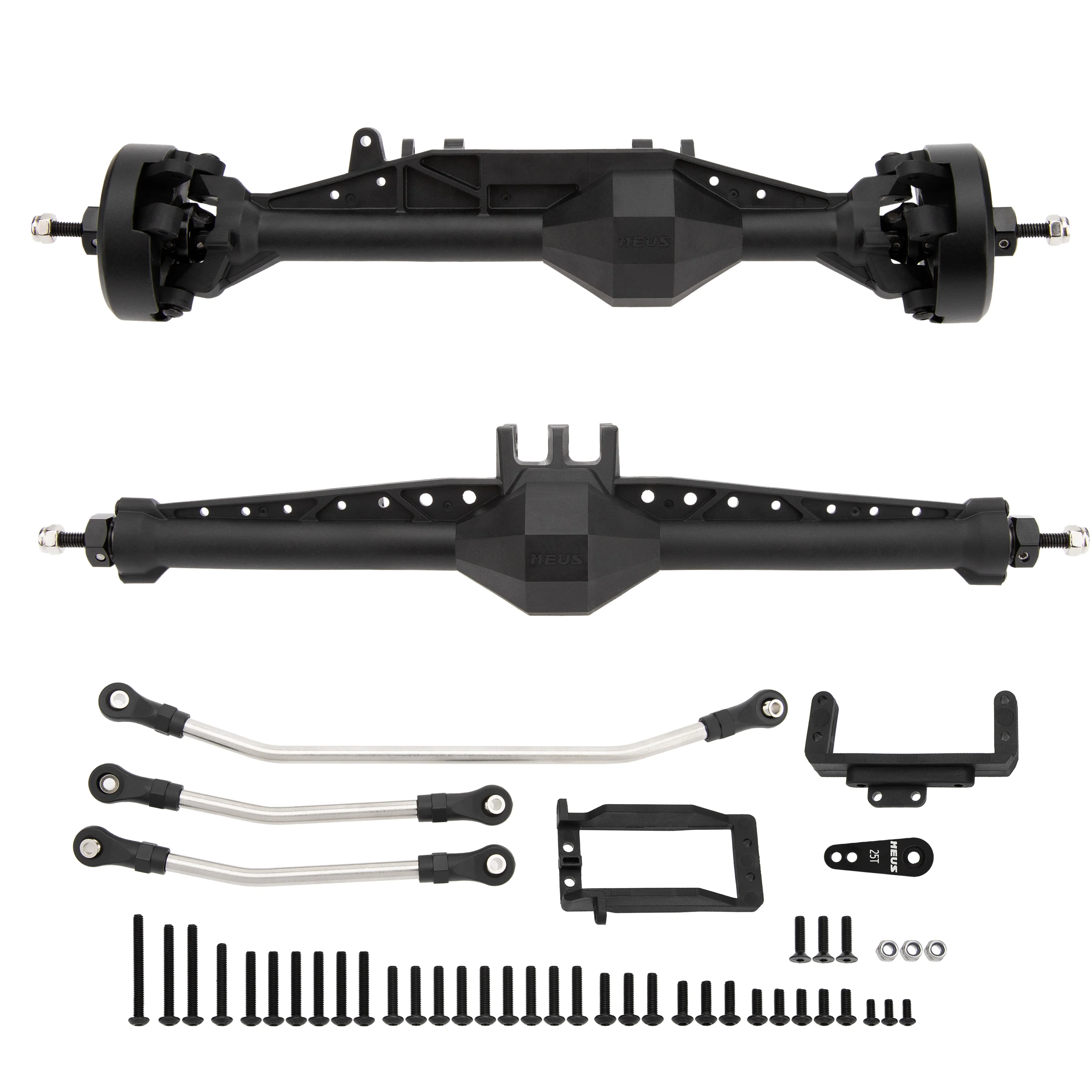

Package List:

• 1 × Front and rear axles
• 3 × Steering links(1 long link, 2 short links)
• 2 × Servo mounts (Horizontal and vertical)
• 1 × 25T servo horn
• 1 × Screw set
