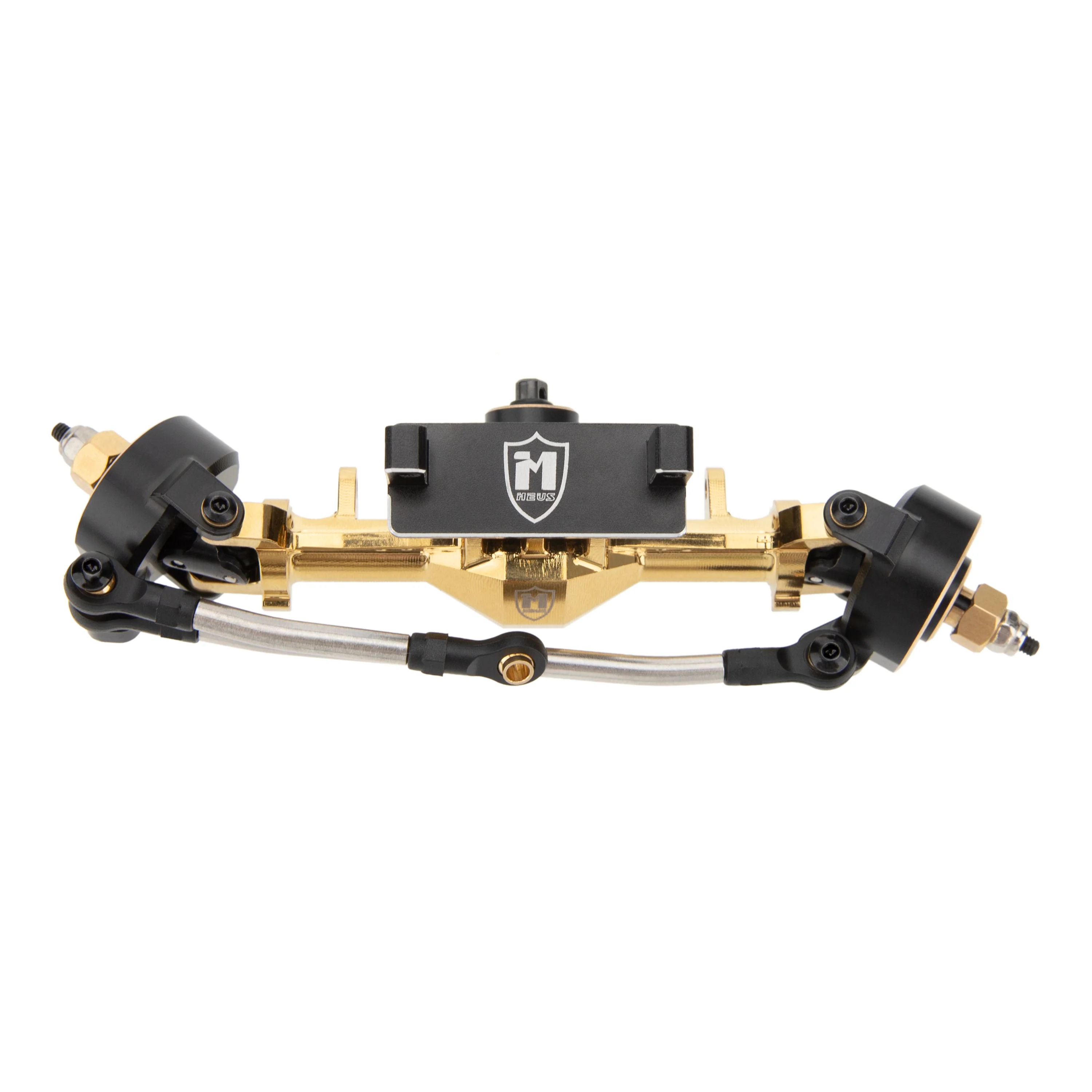

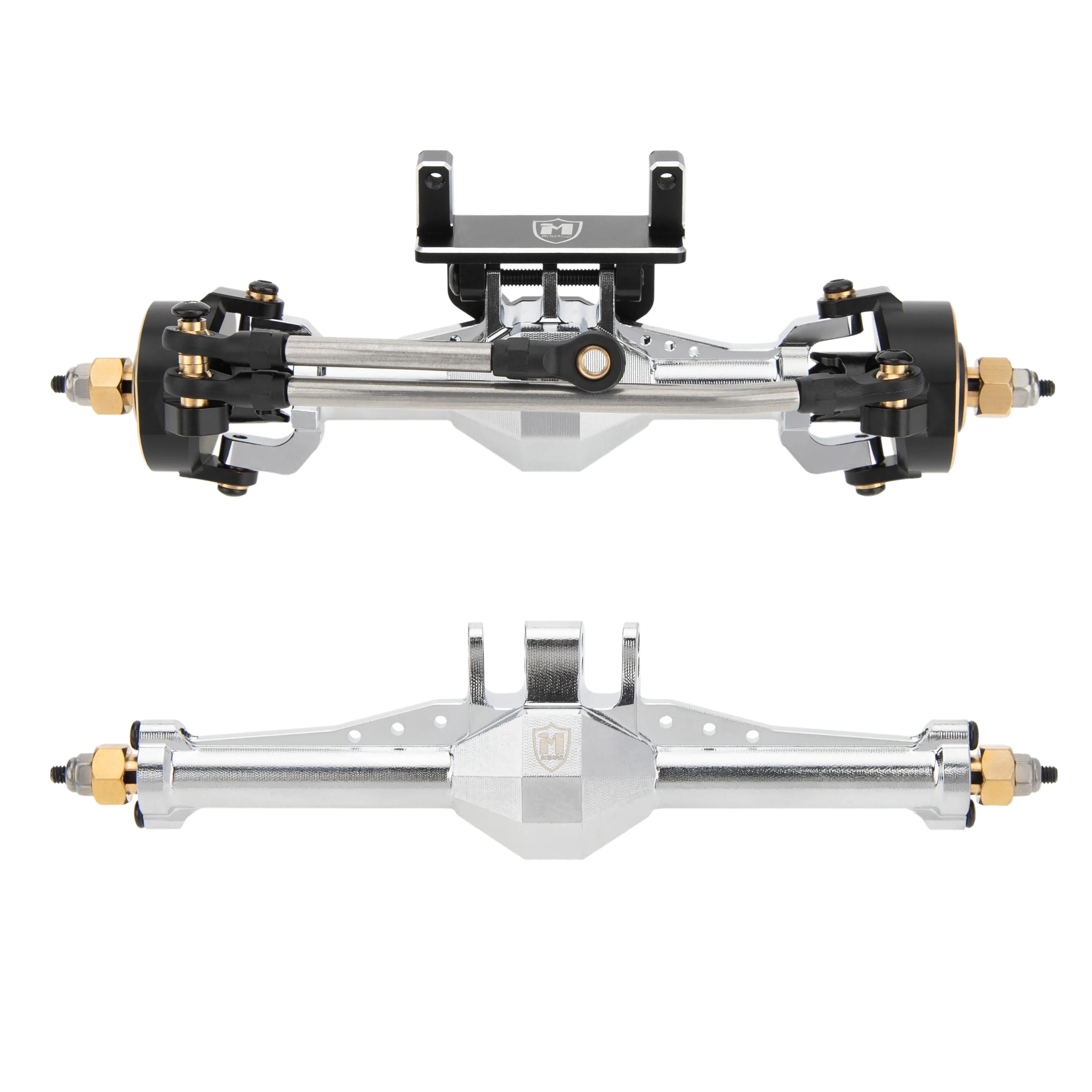

MEUS Racing TRX4M Metal Isokinetic Front Rear Axles with 3-Section CVDs for 1/18 TRX4M Bronco Land Rover Defender K10 High Trail
MEUS Racing TRX4M Metal Isokinetic Front and Rear Axles with 3-Section CVDs, Maximum Steering Angle 52° Wider +5MM for 1/18 TRX4M Ford Bronco, Land Rover Defender, Chevrolet K10 High Trail, Ford F-150 High Trail RC crawlers.
Key Features:
- 1. The silver and gold axle housing surfaces are chrome-plated, the blue and purple are anodized to improve corrosion resistance, enhance wear resistance, extend service life, and improve appearance.
- 2. MEUS Racing's patented 3-Section-CVD structure effectively reduces the shaking of the front wheel when turning and improves steering performance.
- 3. Both sides of the front and rear axles are widened by +5mm to obtain more space while steering, thus providing more tire options.
- 4. Front and rear are equipped with customized 12-24T gears. Front and rear axles support all specifications of aftermarket gears.
- 5. The front axle supports two servo fixing options, with the default being the horizontal servo.

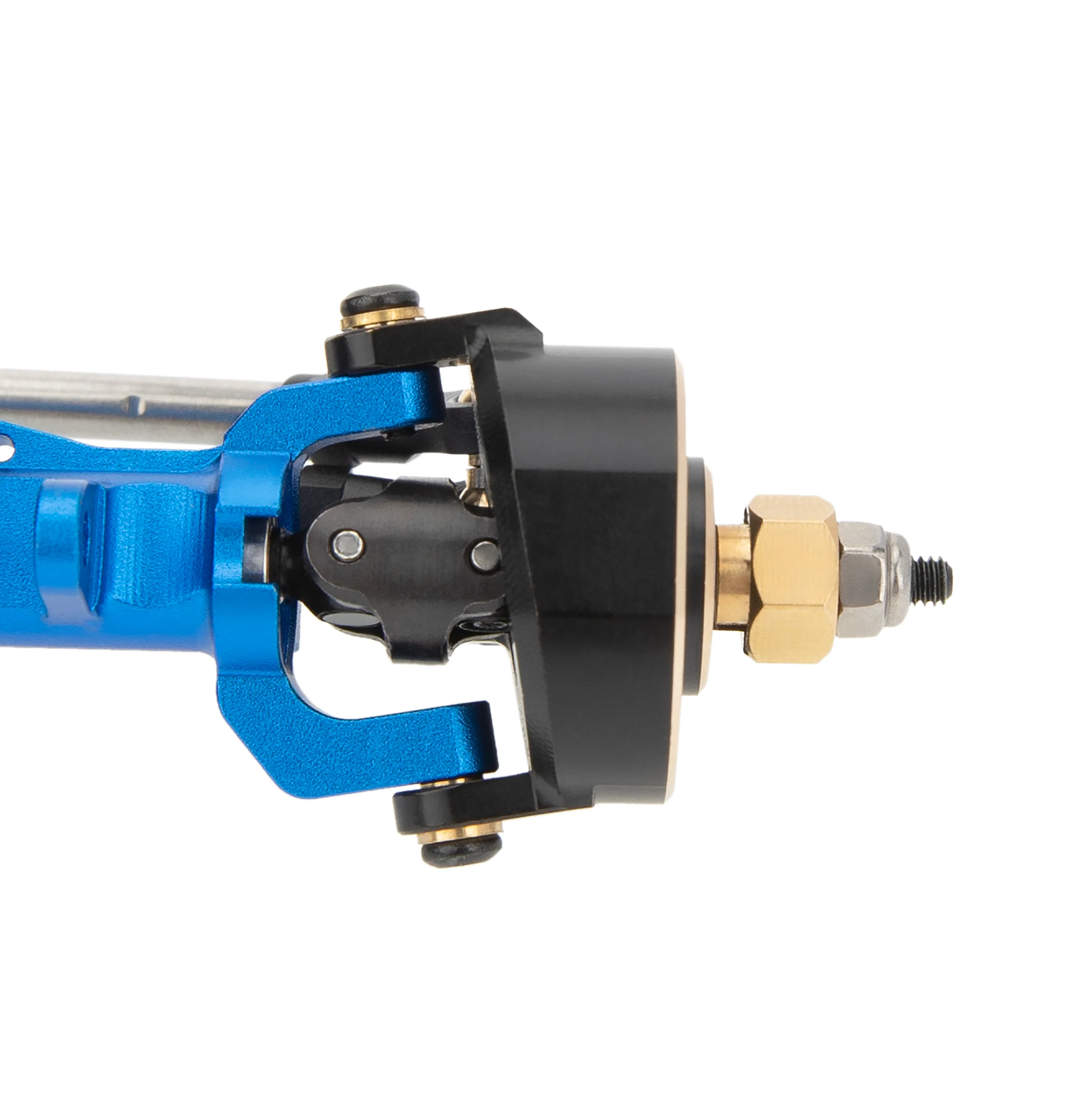

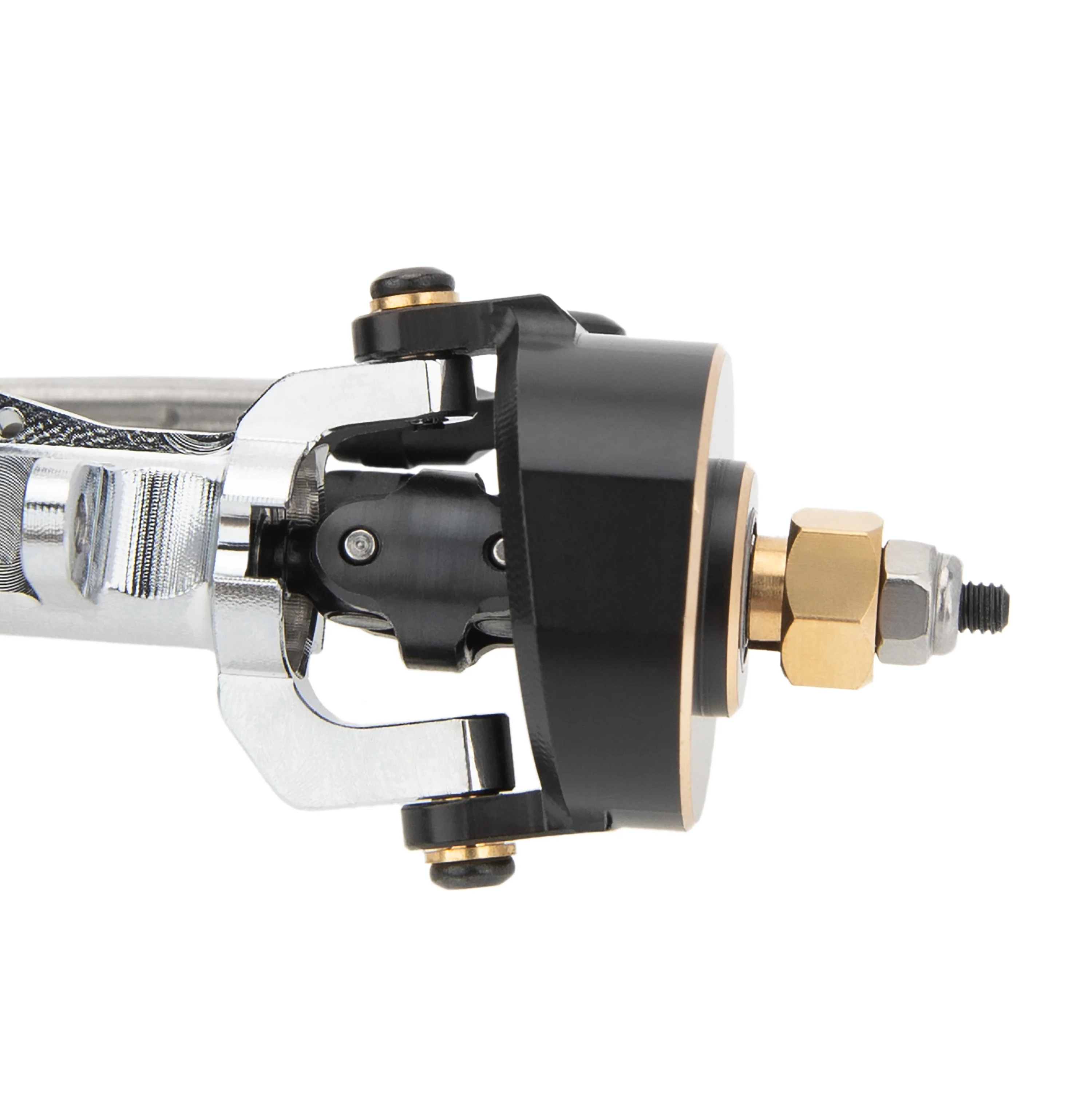

- 6. Brass steering knuckles added weight; other parts, such as differential covers, servo mount, and rear link mount, are made of high-quality aluminum alloy for greater durability, strength, and stability to handle aggressive driving.
- 7. If you want the front wheels to overdrive, please change the differential gear of the front axle to 12-22T.
- 8. The TRX4M Isokinetic axles work with TRX4M Ford Bronco, Land Rover Defender, Chevrolet K10 High Trail, Ford F-150 High Trail.
Note:
1. The TRX4M 3-section Isokinetic axle is suitable for the K10 Pickup truck. However, because of the horizontal servo mount, the original frame beam will have some interference when it is twisted horizontally at a large angle. You can use the original servo mount, and the shorter steering link comes with the package.
2. If you are using the original servo mount, please use the shorter steering link, because our servo mount and steering links are matched; if you disassemble them, they will not work.
Specifications:
- Axle housing material: Aluminum alloy
- Steering knuckle material: Brass
- Diff gear material: 20CrMo Alloy Steel
- CVD Shaft material: Hardened Steel
- Diff cover material: Brass
- Diff gear: 12-24T
Package List:
1 × TRX4M Isokinetic front axle
1 × TRX4M rear axle
3 × Steering Links
1 × Servo Mount
1 × Screws set
