MEUS Racing TRX4M V2 Metal Isokinetic Axles with 3-Section CVD and Adjustable Servo Mount for 1/18 TRX4M

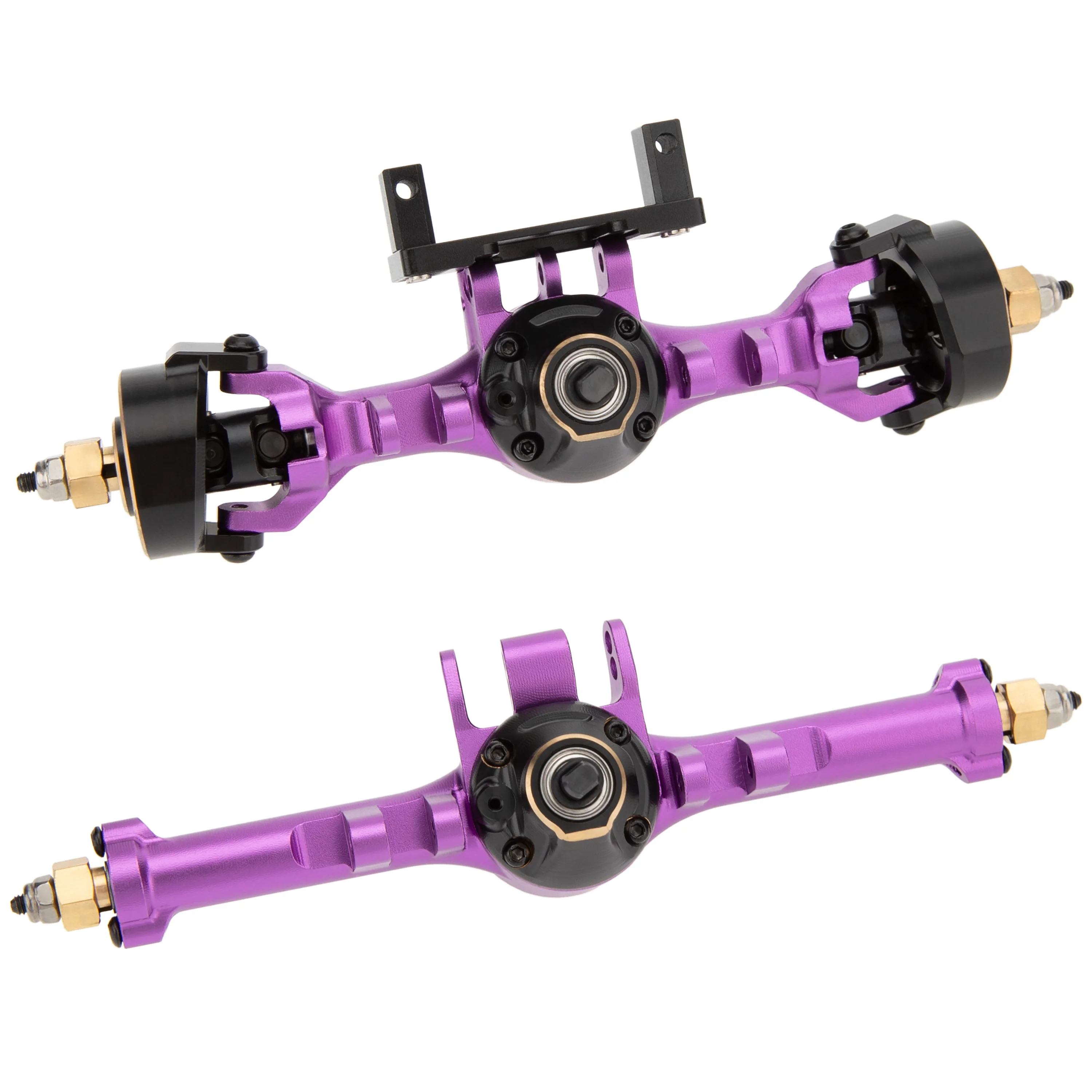

MEUS Racing Purple / Gold TRX4M V2 Metal Isokinetic Axles, Maximum Steering Angle 52°, Wider +5MM each side with 3-Section CVD and Adjustable Servo Mount for 1/18 TRX4M Upgrades.

Key Features:

• 1. MEUS Racing TRX4M metal V2 Isokinetic axles suitable for TRAXXAS 1/18 TRX4M RC Crawler

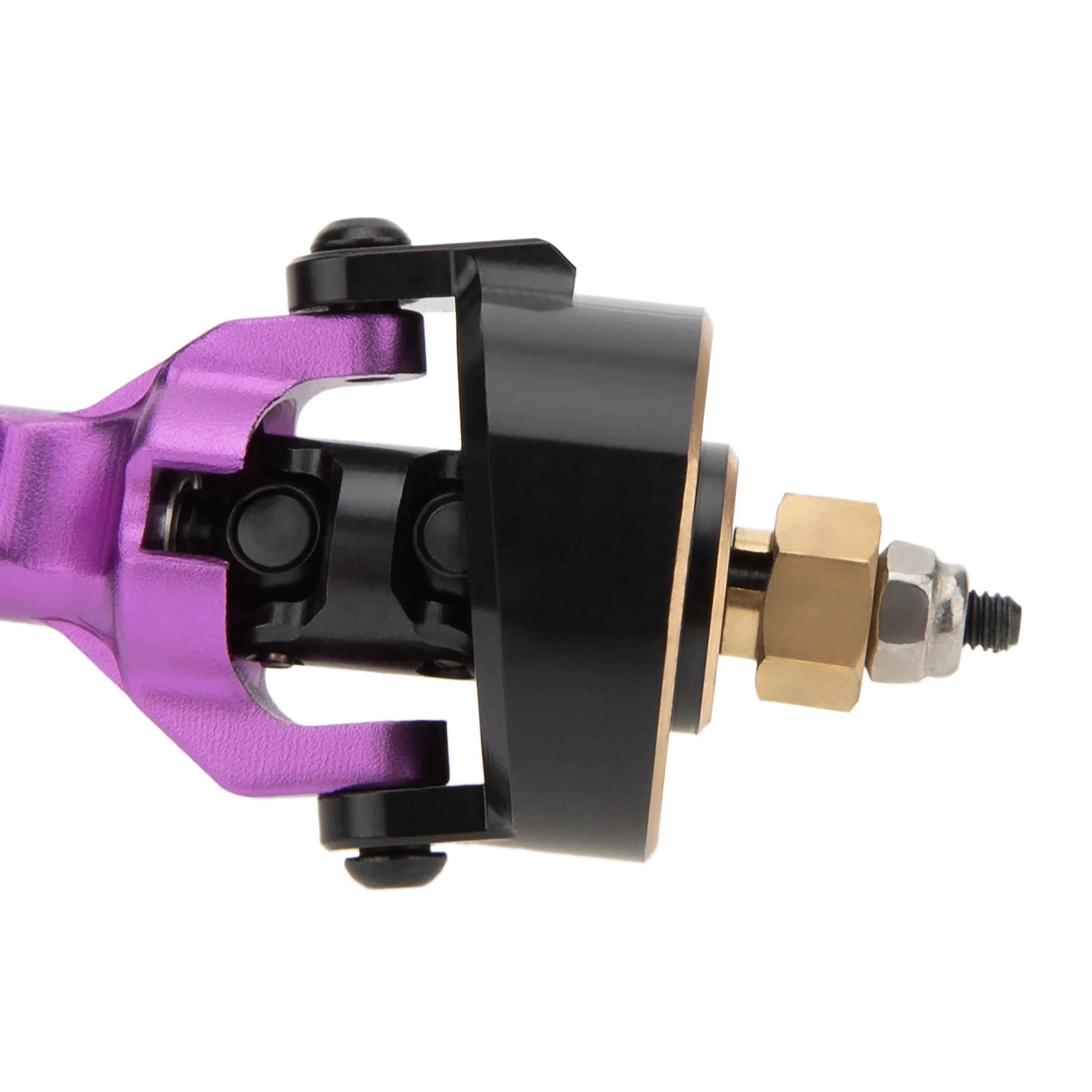

• 2. Shoulder screws on steering knuckles to provide better fixation, won't easily fall off.

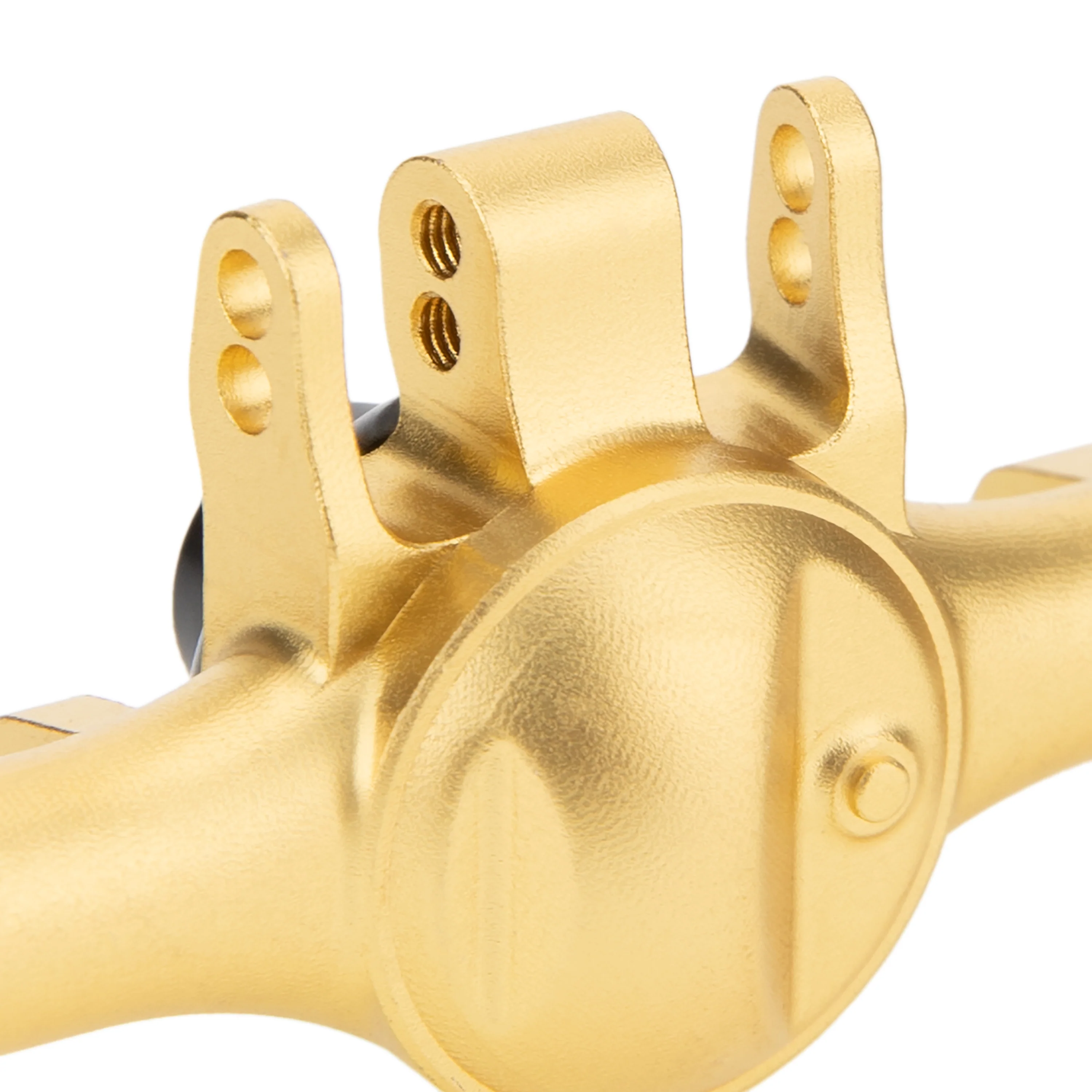

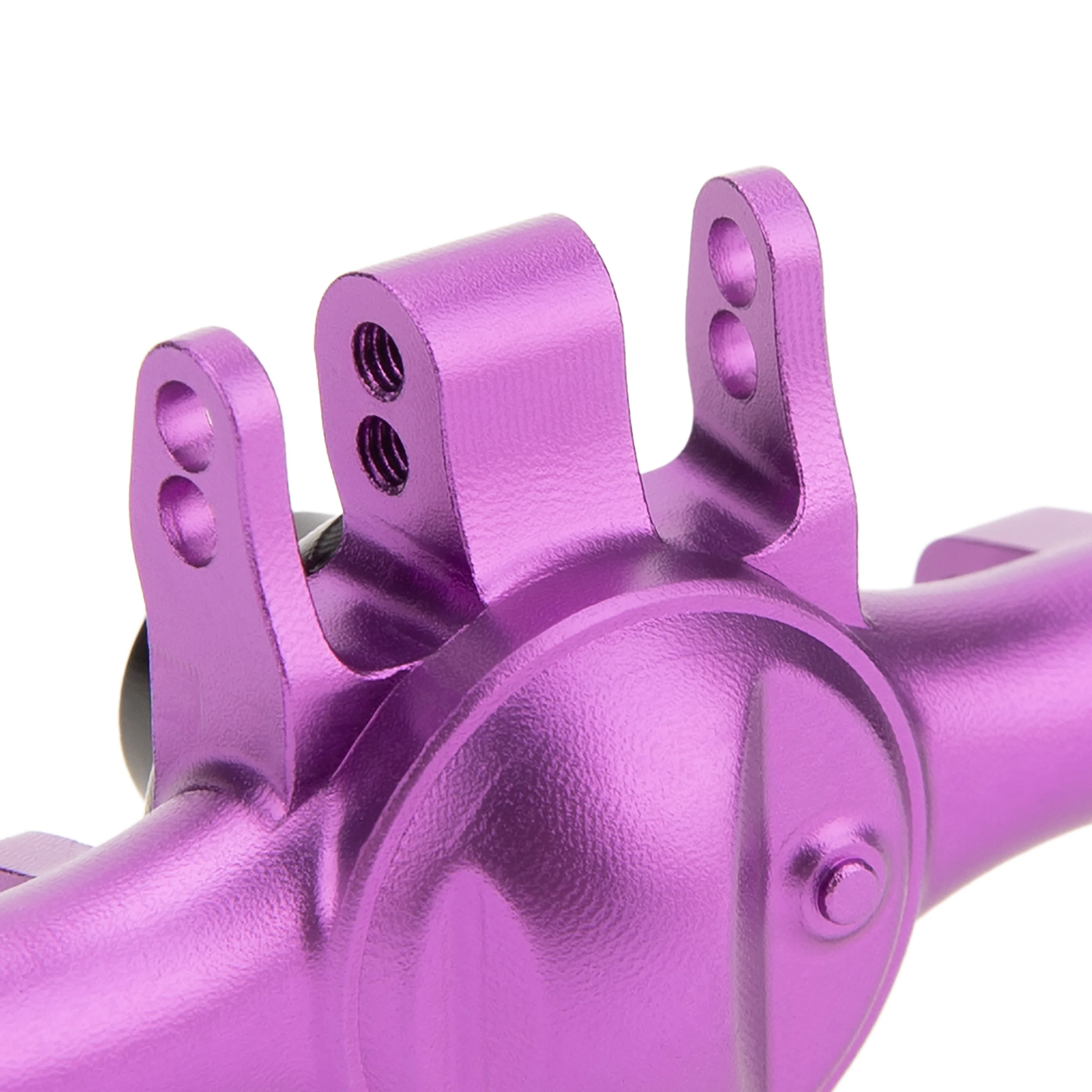

• 3. Modified diff cover, screws can be hidden properly to prevent the axles from being jammed under certain circumstances.

• 4. Front axle weight is 103g, which comes with brass steering knuckles and diff cover, aluminum servo mount, and axle housing for overall protection and higher performance while conquering different terrains.

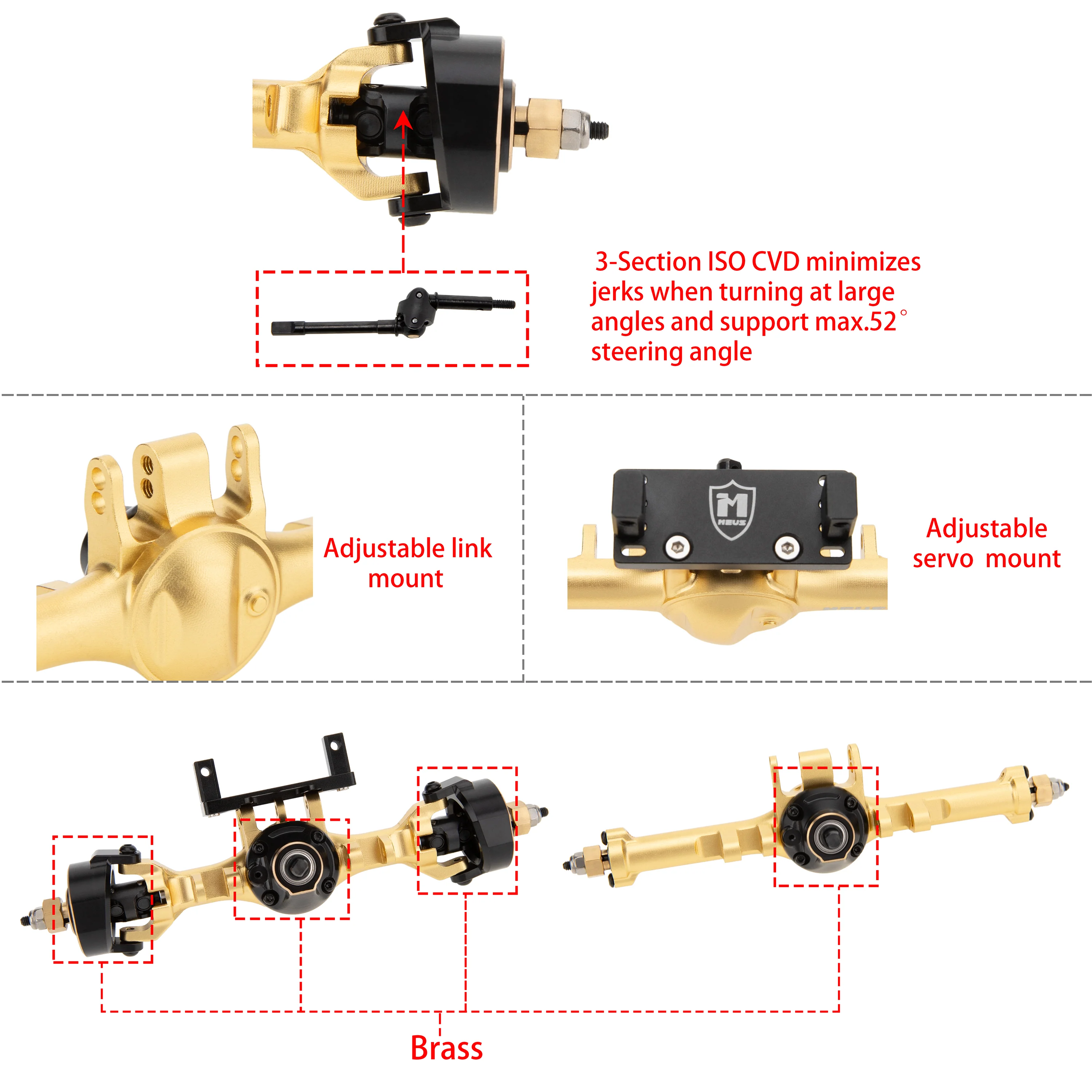

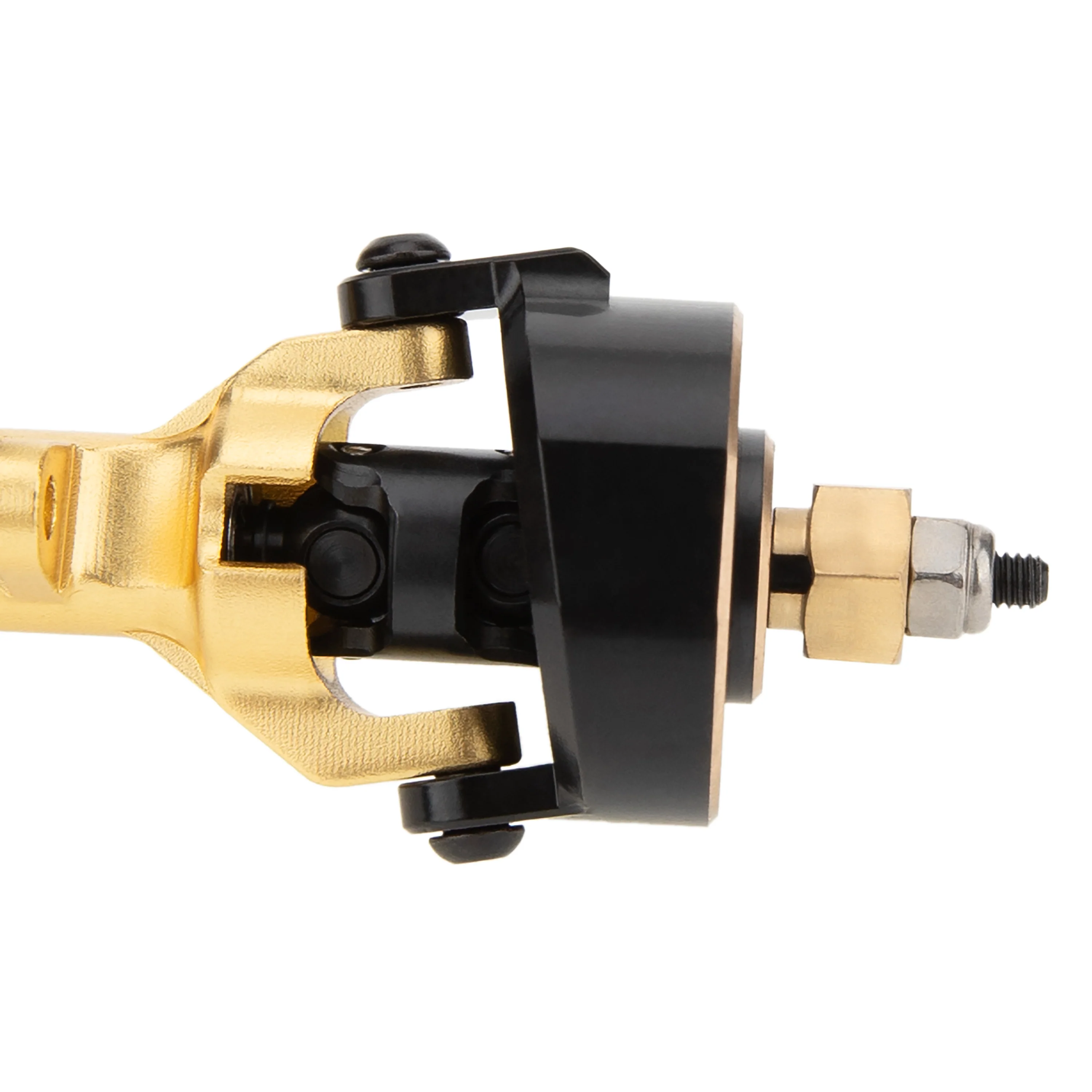

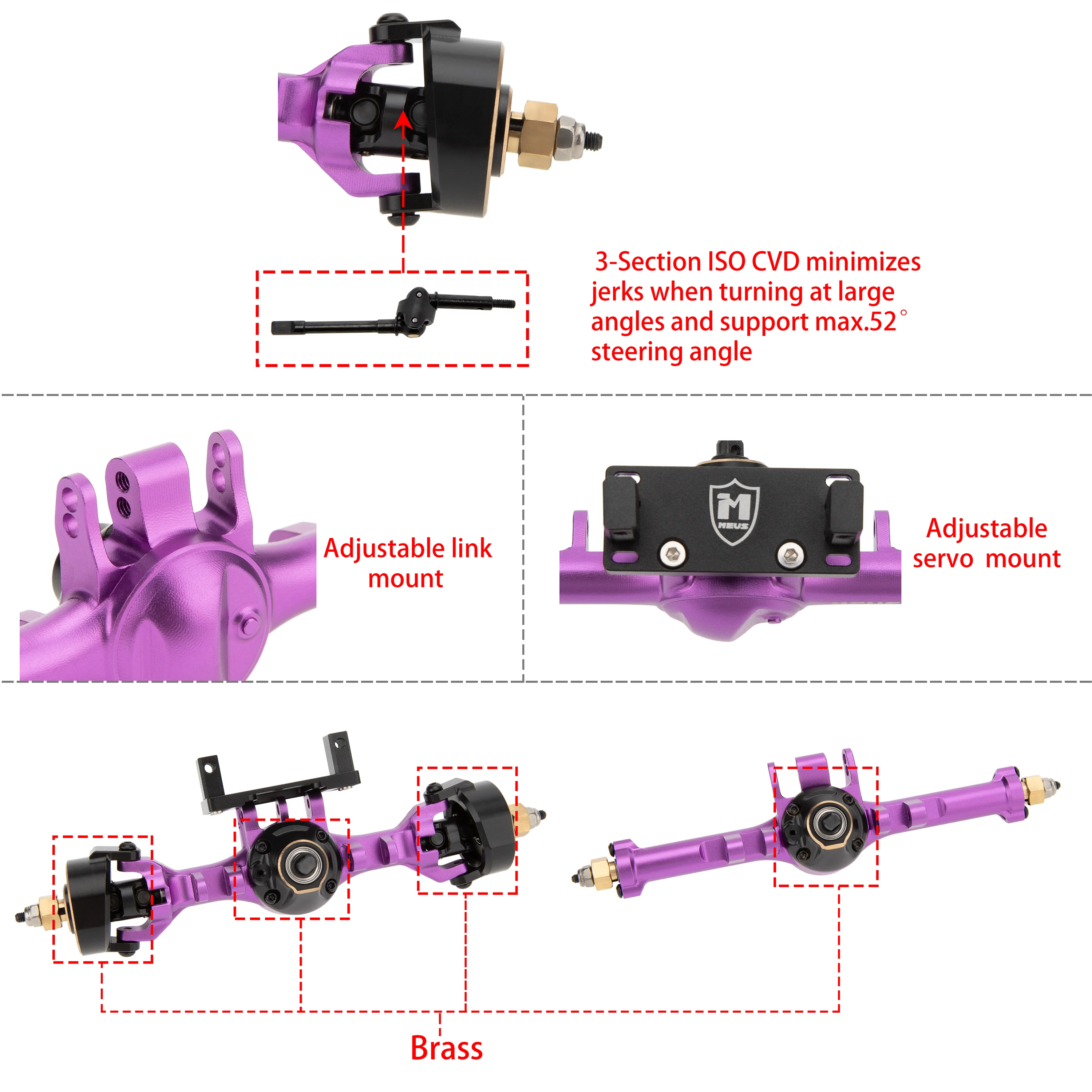

• 5. US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD effectively/minimizes the jerks when turning at large angles and supports a max.52° steering angle.

• 6. The front and rear axles are +5mm wider on both sides, with a 10° kingpin inclination angle, and feature Ackerman steering.

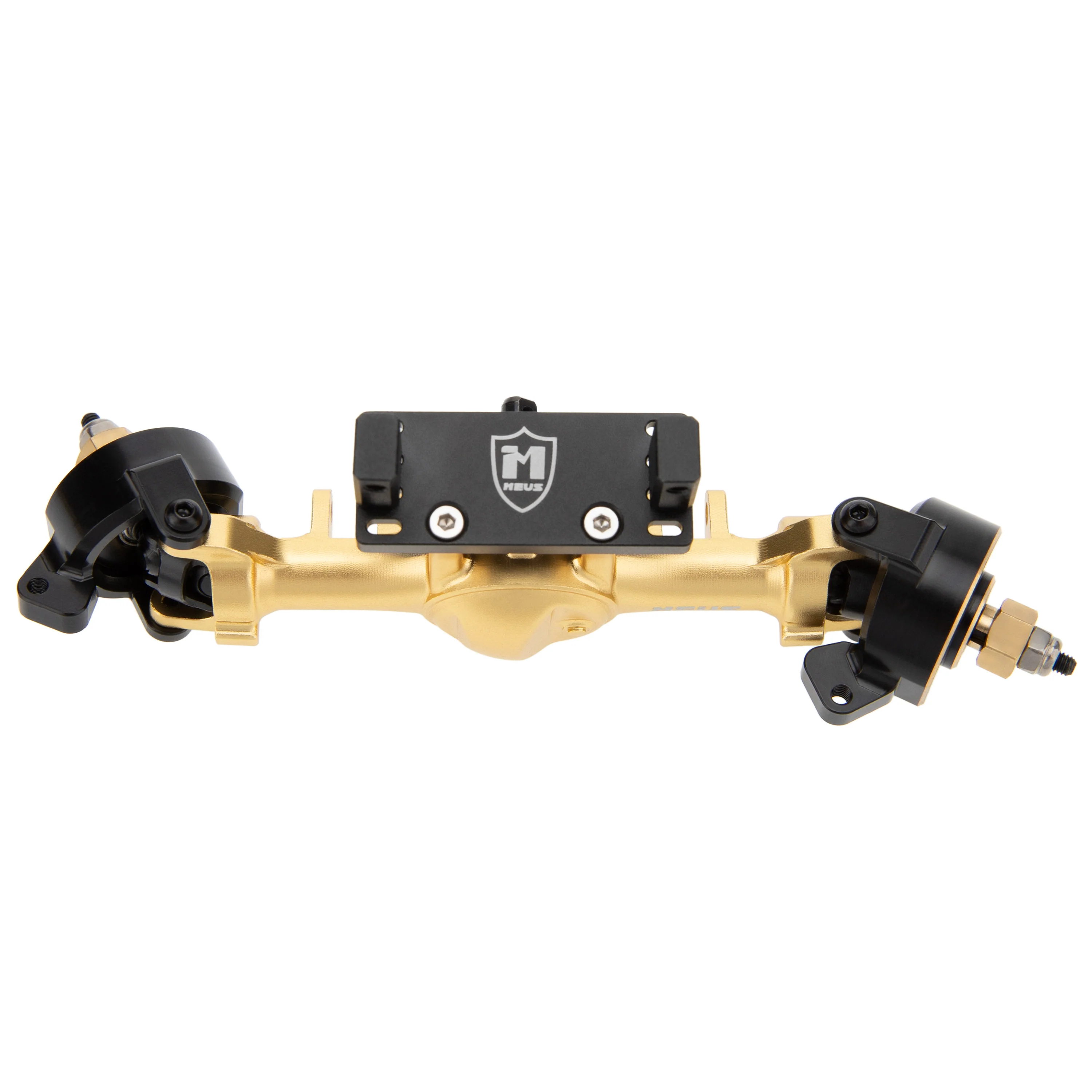

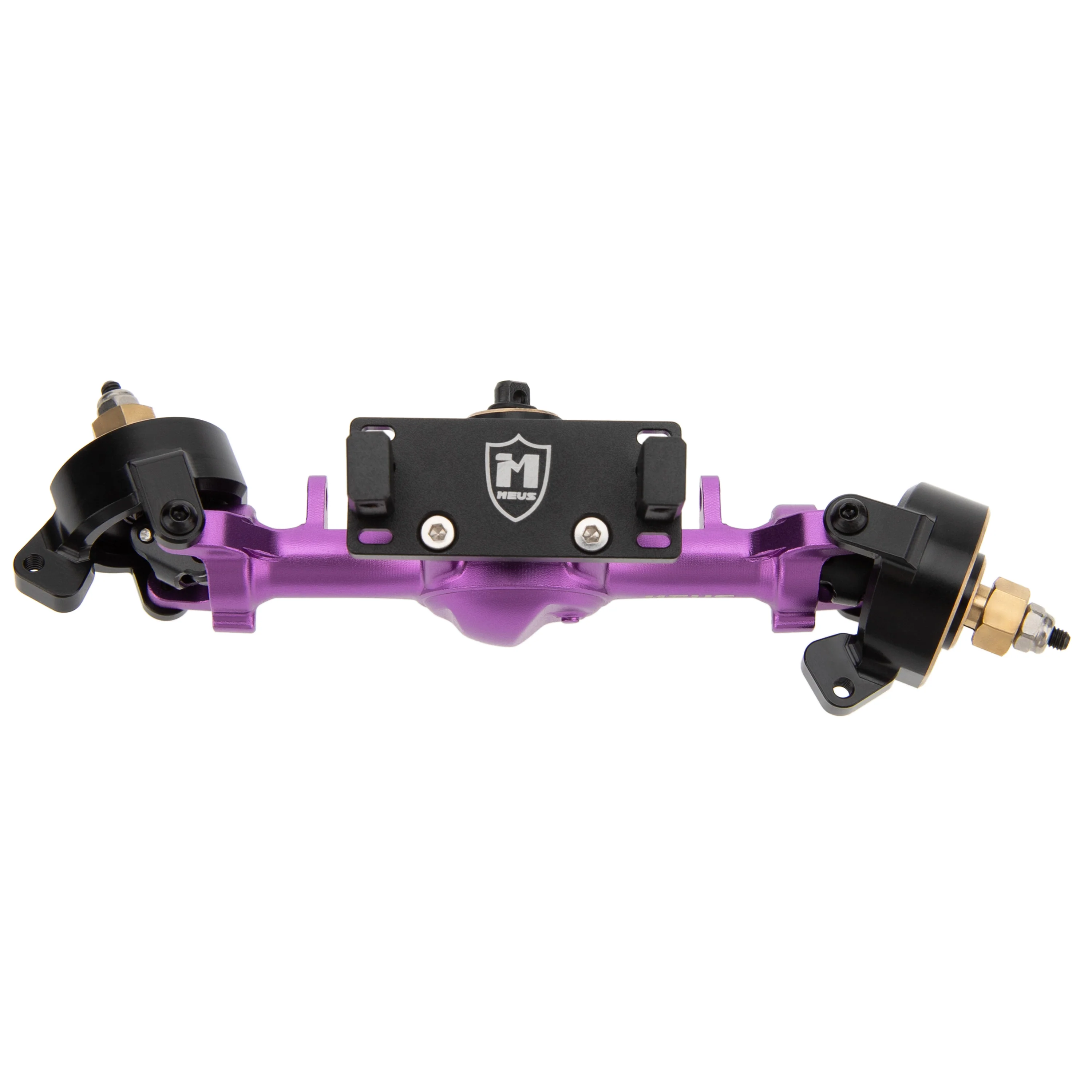

• 7. The servo mount is adjustable, supporting horizontal and vertical installation of the servo.

Note:

1. The TRX4M V2 metal Isokinitic axle does not support differential gear reversal installation. If you need to flip the differential gear to achieve reverse rotation, please purchase the TRX4M V1 metal axle.
2. The TRX4M 3-section Isokinetic axle is suitable for the K10 Pickup truck. However, because of the horizontal servo mount, the original frame beam will have some interference when it is twisted horizontally at a large angle. You can use the original servo mount, and the shorter steering link comes with the package.
3. If you are using the original servo mount, please use the shorter steering link, because our servo mount and steering links are matched; if you disassemble them, they will not work.

Front and Rear Axles Specifications:

• Axle housing material: Aluminum alloy
• Front axle weight: 103g
• Rear axle weight: 48g
• Front and rear diff gears: 12-24T
• Front axle length: 110.6mm
• Rear axle length: 105mm

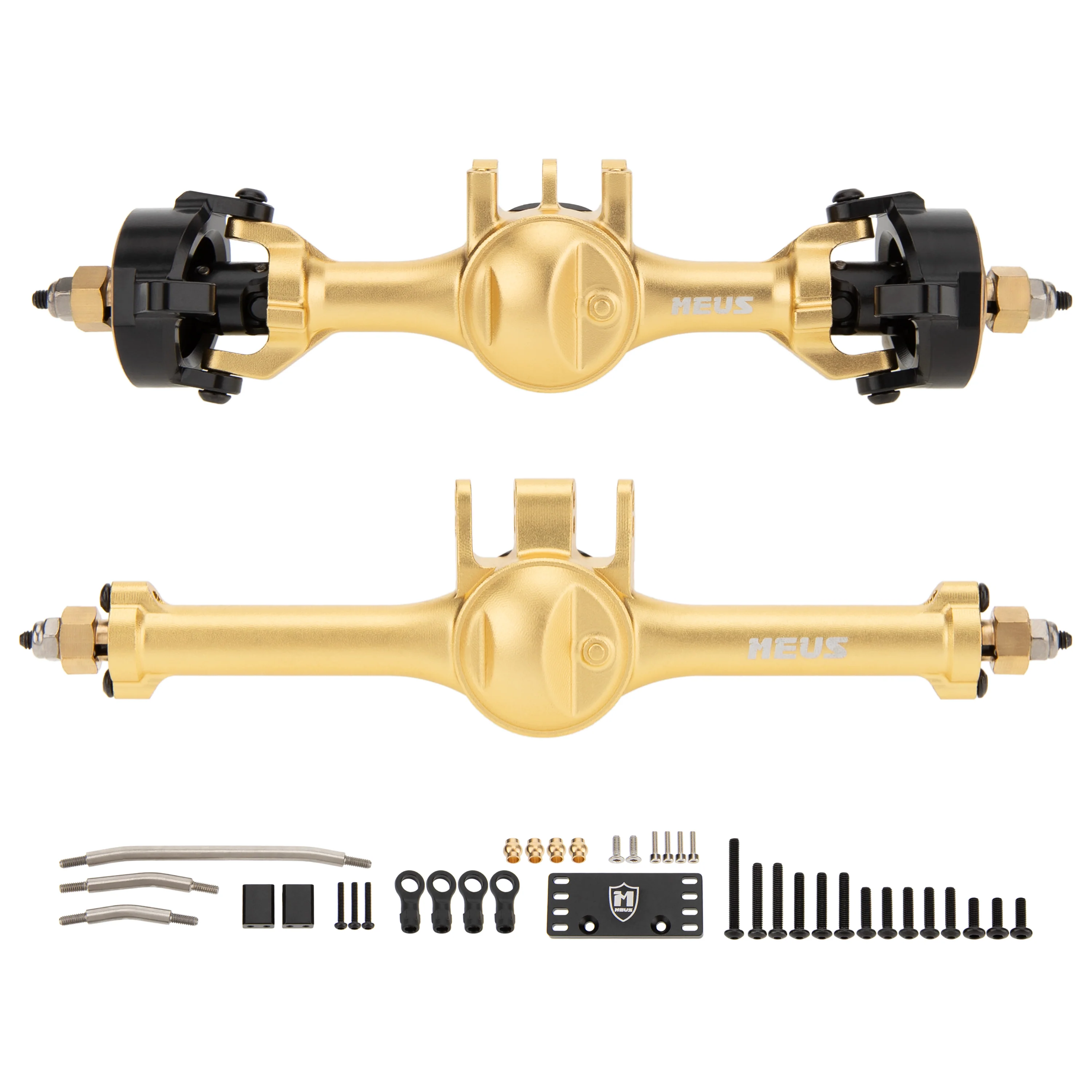

Package list:

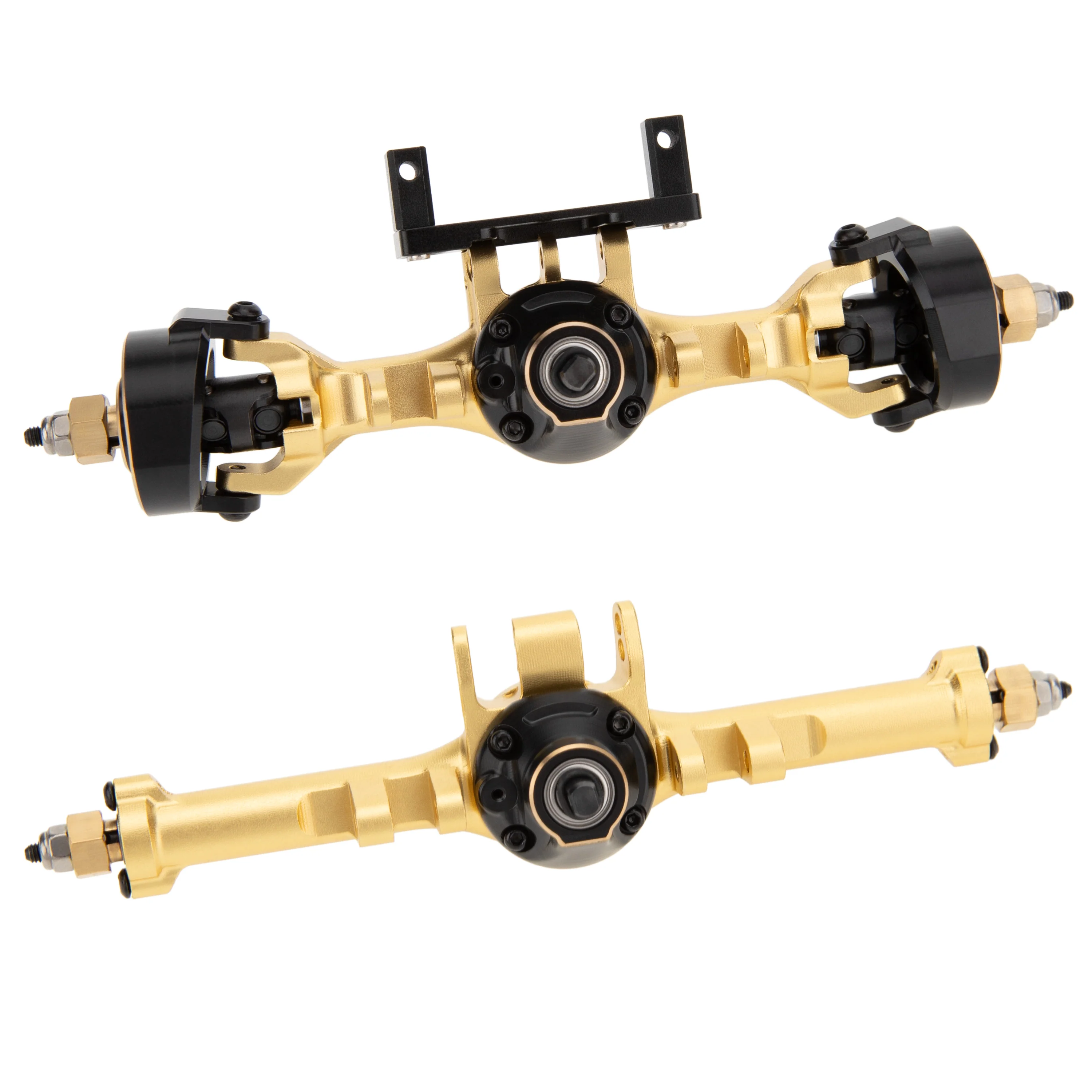

• 1 × TRX4M metal V2 Isokinetic front axle
• 1 × Rear axle
• 3 × Steering links
• 1 × Servo mount
• 1 × Screw set
